8

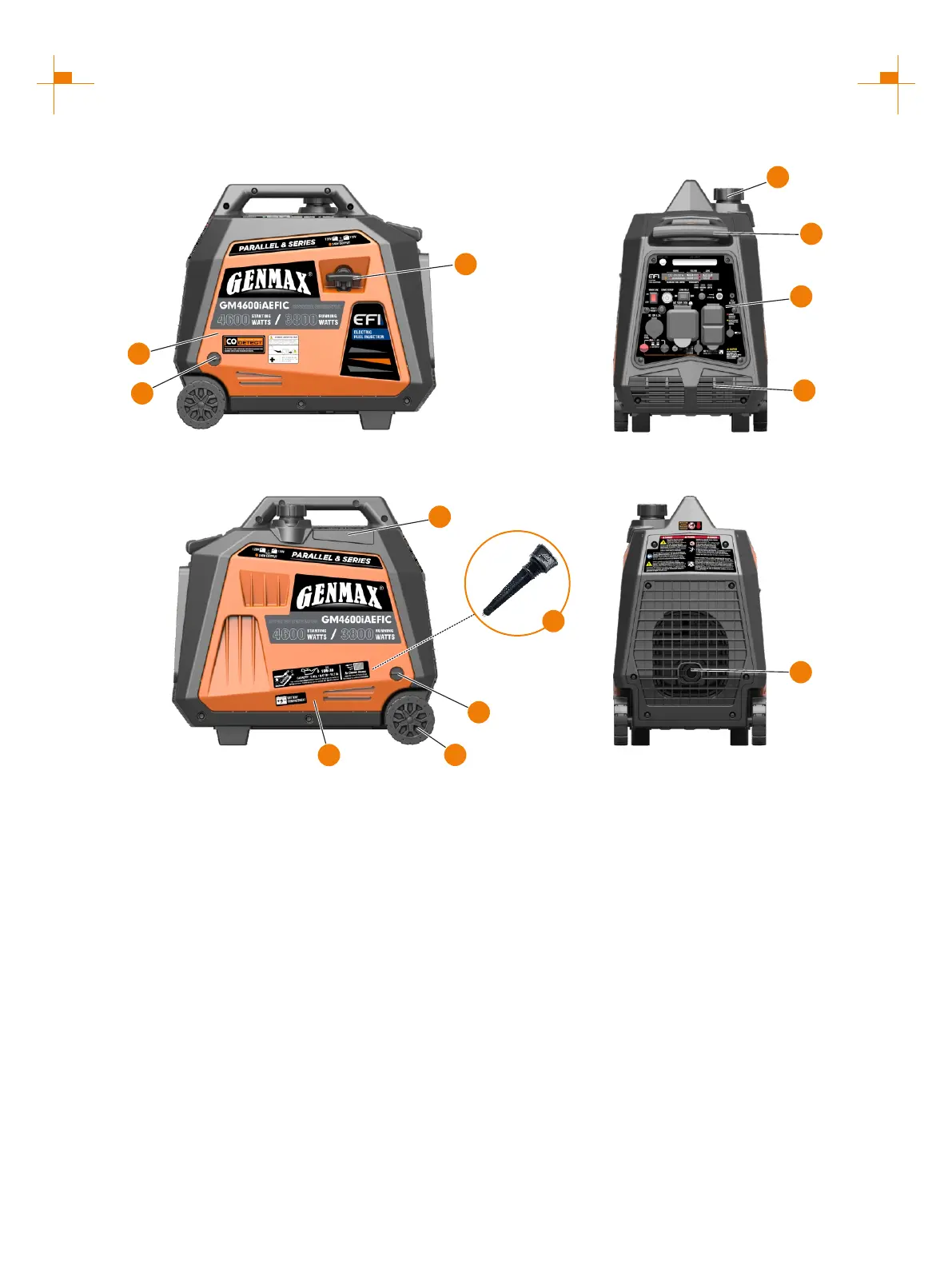

NAMES OF COMPONENTS
① Fuel Tank Cap: Open the fuel tank cap and fill with
proper amount of gasoline.
② Recoil Handle: Pull to start the engine.
③ Bolt: Remove left (right) outer cover.
④ Left Outer Cover
⑤ Control Panel: Contains the reset breaker, outlets
and warning lights.
⑥ Engine Cooling Vents: Helps move airflow in unit
to regulate engine temperatures.
⑦ Right Outer Cover: Unscrew the bolts to remove
the outer cover, add or replace the oil and maintain the
air filter.
⑧ Muffler: Avoid contact until the engine is cooled
down. The spark arrestor prevents sparks from exiting
the muffler. It must be removed for servicing.
⑨ Spark Plug Access Cover: Remove the cover to
service the spark plug.
⑩ Telescopic Rod
⑪ Wheel
⑫ Magnetic Oil Dipstick: Absorb iron filings in the oil,
it is recommended to screw down the magnetic oil
dipstick and clean it every 50 hours.
3
4
2
1
10
5
6
8
9
3
11
7
12
