GENMAX GM7250iEDC - AC Socket Output Description

9
CONTROL FUNCTIONS

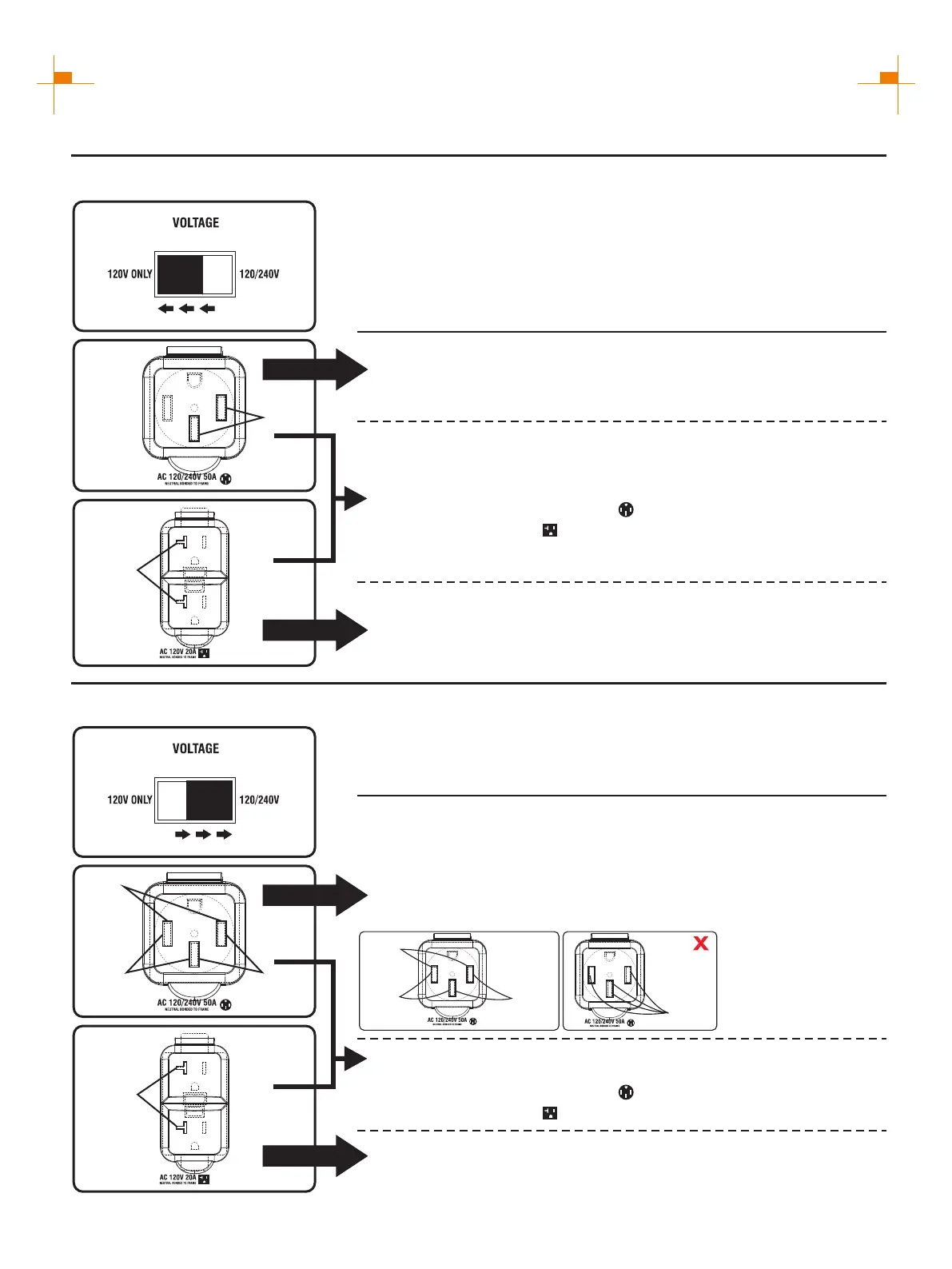

OUTPUT DESCRIPTION OF THE AC SOCKET
When the voltage selector switch is set to 120V ONLY
The voltage selector switch is set to 120V ONLY.
When the voltage selector switch is set to 120/240V (Suitable for parallel)
Output voltage can only be 120V and current 50A.
120V(Voltage)×50A(Current)=6000W(Output Power)
Single socket output
Single socket output
Output voltage 120V current 20A.
120V(Voltage)×20A(Current)=2400W(Output Power)
The rated power of the generator is 6000W, and the total output power
of the two sockets can only be within 6000W.
If the one-time output of plug A( ) is 6000W, do not connect the
load output of plug B( ).
A
B
The voltage selector switch is set to 120/240V.
The voltage is 120/240V and two generators can be connected in
parallel.
The output voltage is 120/240V, and the current is only 25A without
parallel connection.
120V socket hole: 120V(Voltage)×25A(Current)=3000W(Output Power)
240V socket hole: 240V(Voltage)×25A(Current)=6000W(Output Power)
When two generators are connected in parallel, the socket can
output 240V voltage at 50A current:
240V(Voltage)×50A(Current)=12000W(Output Power)
Single socket output
Single socket output
Output voltage 120V current 20A.
120V(Voltage)×20A(Current)=2400W(Output Power)
The rated power of the generator is 6000W, and the total output power
of the two sockets can only be within 6000W.
If the one-time output of plug A( ) is 6000W, do not connect the
load output of plug B( ).
A
B
120V
120V
120V
120V
240V
120V
C load
B load
A load
OK
①
②
③
①
②&③
ATTENTION: ①②③ can
output at the same time, but
the total power output of the
socket can not exceed the
rated power of the generator,
can not be connected to the
same load.
A load
