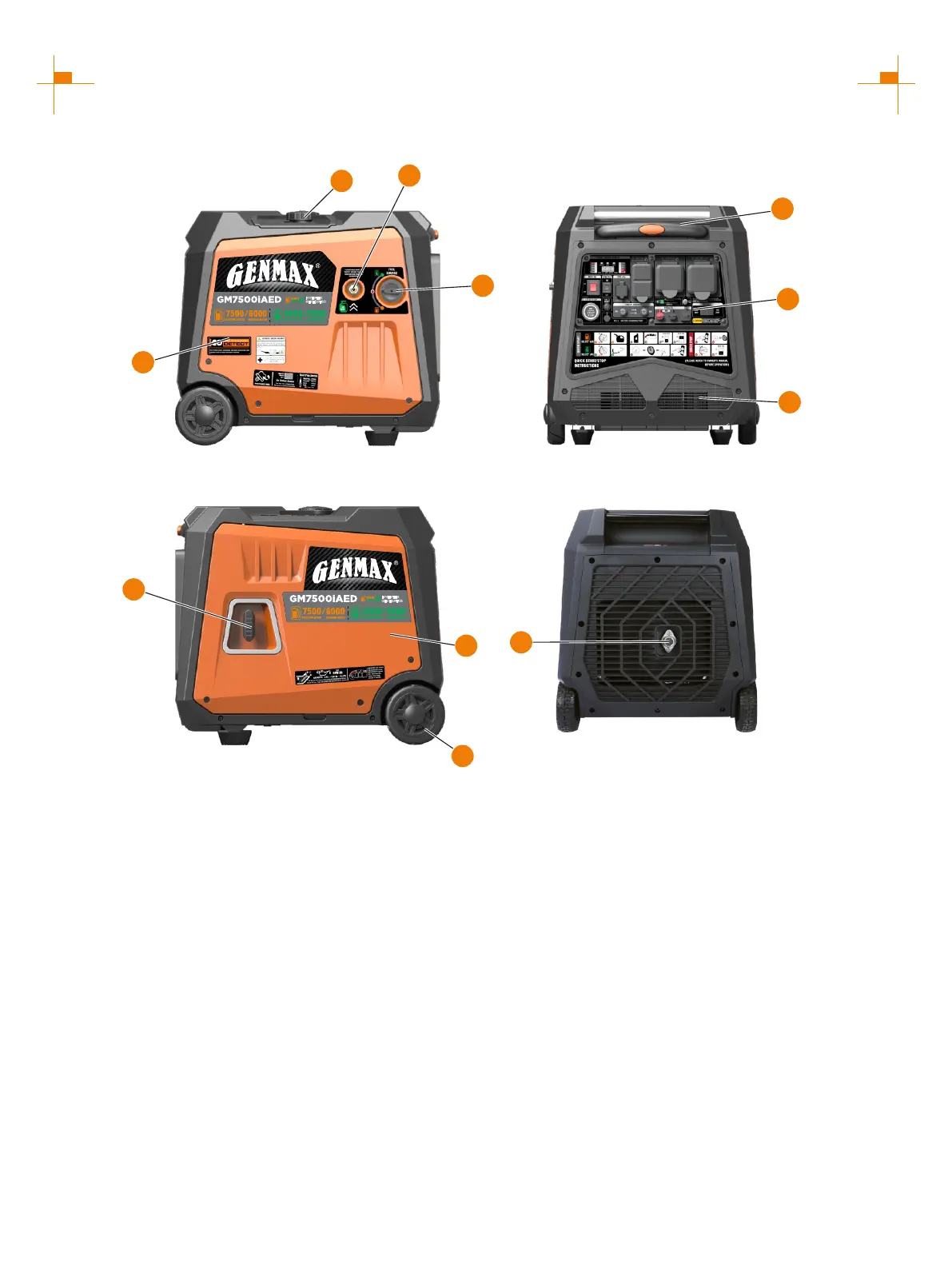

NAMES OF COMPONENTS
① Fuel Tank Cap: Open the fuel tank cap and fill with
proper amount of gasoline.
② Recoil Handle: Pull to start the engine.
③ Telescopic Rod
④ Left Outer Cover: Unscrew the bolt, remove the
outer cover, connect the battery wire, maintain the
air filter and replace the spark plug.
⑤ Control Panel: Contains the reset breaker, outlets
and warning lights.
⑥ Engine Cooling Vents: Helps move airflow in unit
to regulate engine temperatures.
⑦ Right Outer Cover: Unscrew the bolt, remove the
outer cover, refuel or change the oil.
⑧ Muffler: Avoid contact until the engine is cooled
down. The spark arrestor prevents sparks from exiting
the muffler. It must be removed for servicing.
⑨ Wheel
⑩ LPG Inlet: Connects the LPG inlet to the LPG
hose/regulator.
⑪ Fuel Source: GAS/LPG valve that changes the fuel
into the engine.
1
9
4
2
7
3
5
6
8
10
11
