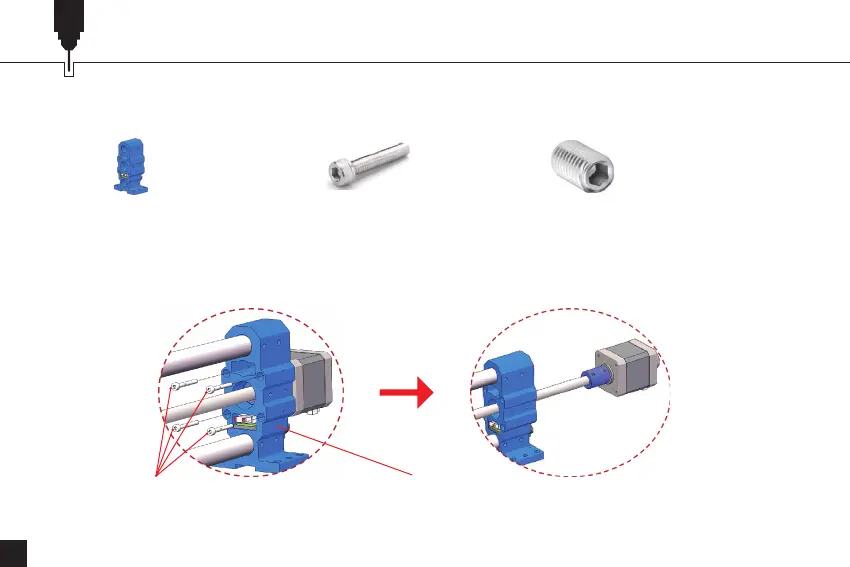

9. Unscrew the 4 screws on the motor end polished rod mount(YL) with an Allen wrench and
remove the motor end polished rod mount(YL).
Step 6: Remove the Y-axis Left Module
What to keep in this step of removal:
Polished Rod Mount(YL) (4) Cup Head Hexagon Socket Screw (4) Mount Screw
(4) Cup Head Hexagon
Socket Screw
Motor End Polished
Rod Mount(YL)
