Genmitsu LE5040 - Overview of Laser Rotary Roller Engraving Module; Application and Engraving Specifications; Technical Specifications and Dimensions

Overview
1. Application: This machine can work with the LE5040 to engrave on materials with a
cylindrical shape.
2. Engraving Size: Cylinder diameter 22-125mm, length 20-220mm, material length/material
diameter >1.0
3. The Rollers can be set at 5 different distances, each one 15mm further than the last.
The adjustable range is 30-90mm.
4. Motor: NEMA17 34mm Stepper Motor; Phase Current: 1.33A
5. Pulse Parameter Setting: 84PULSE/mm
6. Maximum Load Weight: 5KG
7. Dimensions: 270 x 145 x 65mm
Note: The front roller is a fixed roller and cannot be moved, only the rear roller can
be adjusted.

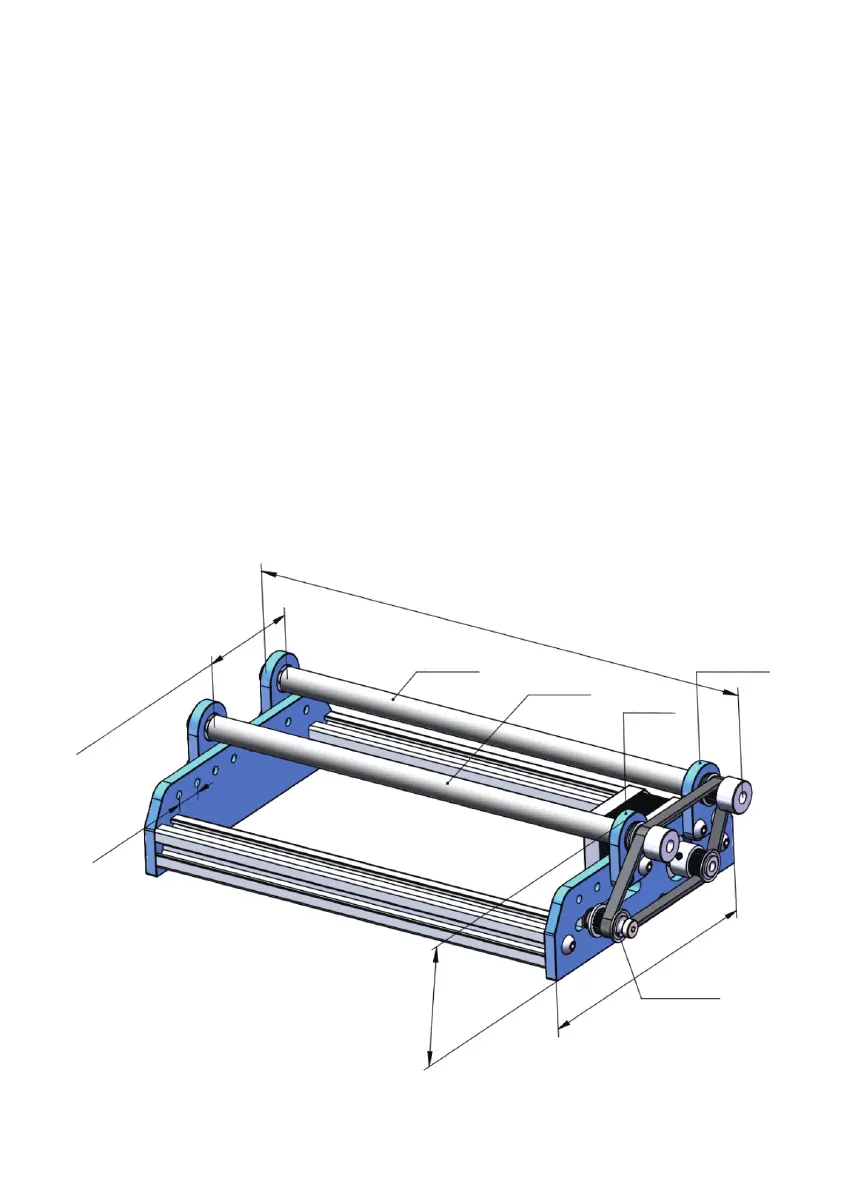

Adjustable Range 30-90mm
270 mm
15 mm
147 mm
65 mm
Non-adjustable
Adjustable
Ø12.00 mm
Ø12.00 mm
Tensioning Wheel
