Description of main
controls and
indicators
Controls (Only available when
access code is entered)
q Numeric keypad. Allows the
entry of numeric data, ie pass-
words, addresses, data, etc.
q Shift key. The shift key gives
access to the main functions of
the panel.
q Display test key. Pressing the
Display Test key after entering
access code#(*) will initiate a
sequence which illuminates all
the indicators in turn enabling
the indicators to be checked.
# Coded entry is only
required if Cancel Buzzer or
Display test functions are
configured for operation at
Access level 2.
q Cancel Buzzer. Pressing the
Cancel Buzzer button after en-
tering access code#(*) will stop
the internal buzzer sounding.
q System Reset. The system re-
set key when pressed after en-
tering access code(*) will return
the system to its normal operat
-
ing state. If there are uncleared
fires or faults then these condi
-
tions will re-occur.
q Sound Alarms. Pressing the
Sound Alarms button after en-
tering access code(*) will sound
all of the system alarms. Should
only be pressed in an emer-
gency or at other agreed times,
ie sounder tests.
q Silence Alarms. Pressing the
Silence Alarms button after en-
tering access code(*) will si-
lence the system alarms.
Should only be pressed when
the emergency is over.
*Three digit code.
Indicators.
q Fire. When lit indicates that the
system has detected a fire.
q Fault. When lit or flashing indi-
cates that there is a fault condi-
tion on the system which
requires rectification.
q ZoneFire/Fault/Disablement.
Indicates when there is a fire
(red indicator lit or flashing) or a
fault (yellow indicator flashing)
on the zone applicable to the in
-
dicators. A lit yellow indicator in
conjunction with other indicators
is used to indicate various dis
-
abled conditions.
q
System Fault. This indicator
when lit indicates that there is a
fault in the panel’s processor.
q Power Fault. When lit or flash-
ing indicates that there is a
power supply fault present.
q Earth Fault. This indicator
when lit or flashing indicates
that there is an Earth Fault on
the system.
q Sounder Fault. When flashing
in conjunction with a flashing
fault indicator indicates a
sounder fault. When lit in con-
junction with the disabled indi-
cator indicates that the
sounders are disabled.
q Disabled. Indicates in conjunc-
tion with the sounder or the
zone indicators a disabled con-
dition.
q Test. When lit indicates that the
panel is in Test mode.
q Power. When lit indicates that
the panel is powered up.
q Day/Night. When lit this indi-
cates that Day Mode has been
enabled. Night Mode is indi-
cated by the indicator being un
-
lit.
q
Access/Function. The Ac
-
cess/Function lamp will flash
when the shift key is pressed
and be lit when the coded func
-
tions are accessed.
Description of main controls and indicators Fire Panels
03/01 2 Part 2 of 4188-424 Issue 2
Cancel
Buzzer
System
Reset
Sound
Alarms
Silence
Alarms
1
23
4
56
7
8
9
0
v
Shift or Function
key
Shift
Numeric
keypad
Display test
key
Display
Essential controls
Zones
FIRE
Fault
System
Power
Earth
Sounder
Disabled
Test
Day/Night
Access /
Function
Normally lit
to indicate
Power supply
healthy
The light is lit when
the Function key is pressed
or there is an entry to control
s
with coded access
ZONE Fire, Fault or Disablement indications
Other Fault
indications
1red
yellow
2 3 4 5 6 7
yellow
yellow
yellow
green
8
Power
yellow

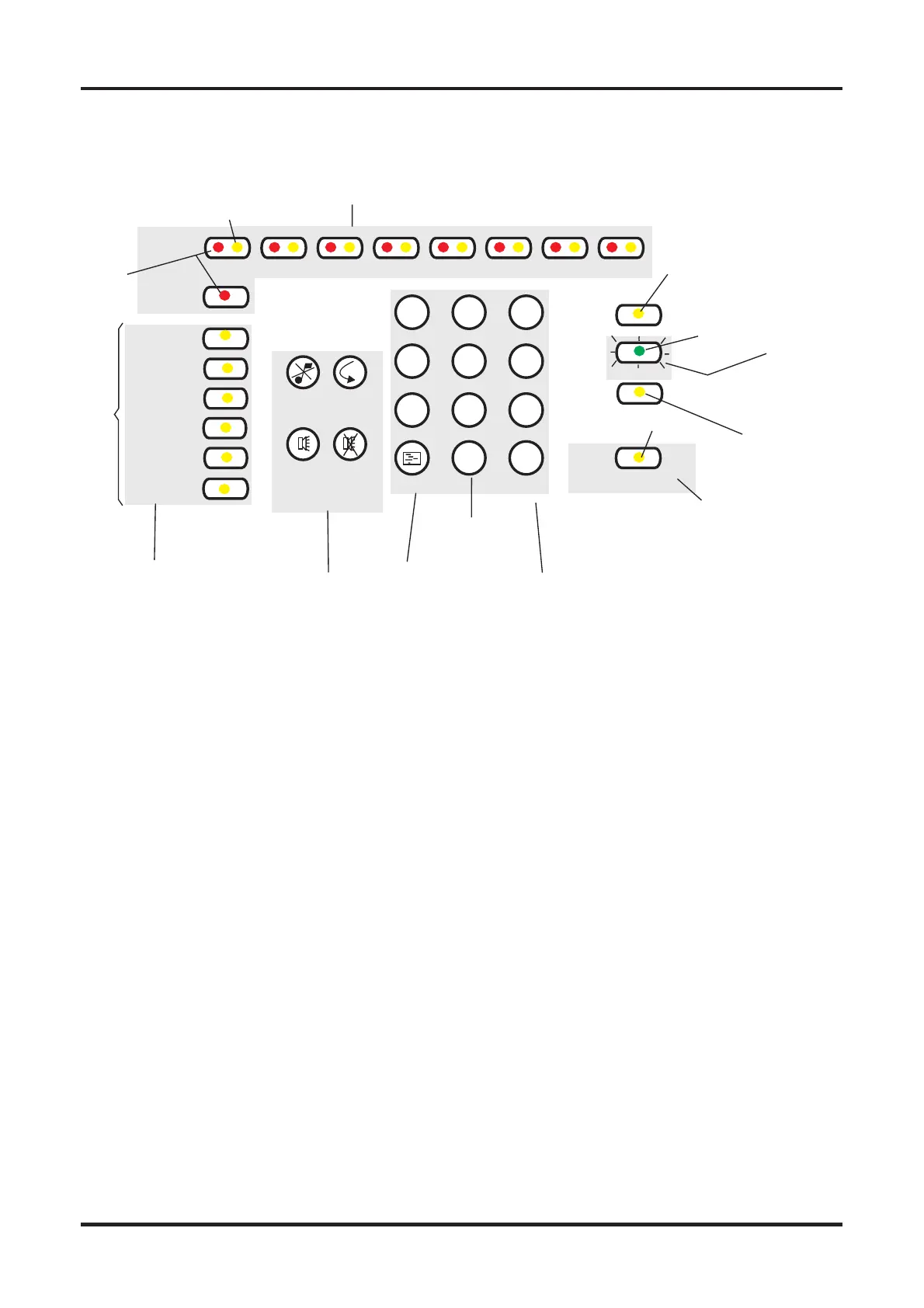

Figure 1 Controls and indications
cd8m191
