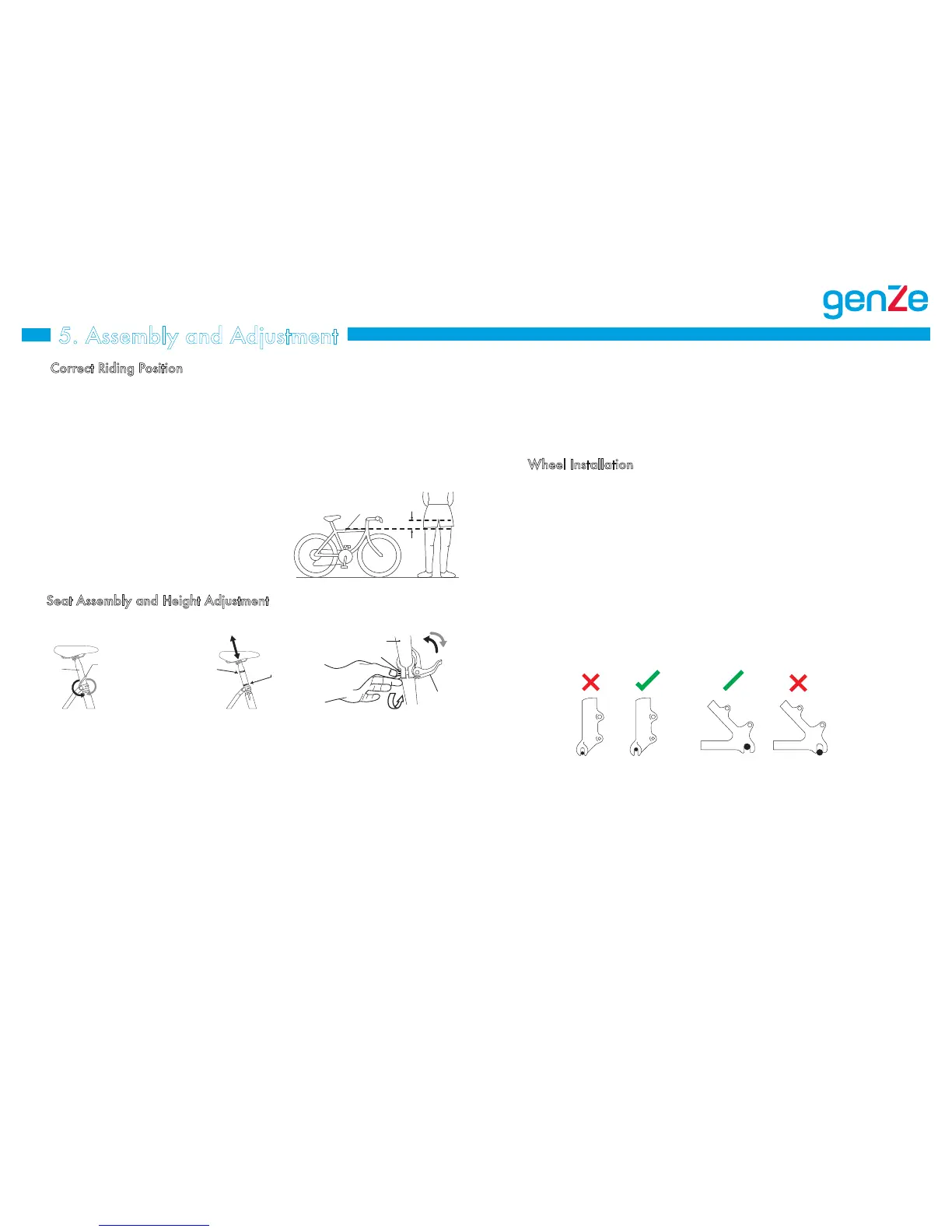

5. Assembly and Adjustment
Correct Riding Position
• The correct riding position allows you to safely maneuver
the handlebar and apply the brakes when needed.
• You should be able to reach one foot to the ground
comfortably when stopped.
• There should be at least a 2-inch gap
between yourself and the top tube
when you are standing over
the e-bike.
(this applies to the e101 only)
Seat Assembly and Height Adjustment
1. Insert the seat post into the frame until the maximum height
marks are no longer visible. Next, adjust the seat post to
the appropriate height by standing next to the seat and
adjusting it until it is approximately level with your hip
bone. Do not raise the seat higher than the maximum seat
height limit as marked on the seat post. Tighten the jam nut
as necessary and clamp the lever to securely fasten the seat.
2. Securing the quick-release clamp should only take enough
force to leave an imprint on your hand. Do not force the
clamp shut. If it feels too tight to close, loosen the jam nut
enough to permit the clamp to close with the proper amount
of force. If you have questions, check with your retailer or
GenZe authorized service center for proper installation
instructions as the seat height will vary depending on the
riderʼs height.
Wheel Installation
•If you received your e-bike without the front wheel installed,
install the front wheel using a 15mm wrench and tighten the
axle nuts.
•If they are ever removed for maintenance and or repairs,
make sure that the front and rear wheel wheels are
reinstalled correctly with their axles fully seated as shown in
figures 1 and 2 below. Note that the rear wheel requires a
19mm wrench for removal and installation.
Top tube
Approx. 5cm
Insertion mark
(LOWER LIMIT)
Insertion mark
(UPPER LIMIT)
Seatpost
Open
Closed
QR lever
Adjusting nut
Seatpost
Open
Closed
QR Lever
Figure 1 Figure 2
