George's 650W - Operation; Mounting and Setup Procedures

Operation
Page 4
Upon receipt, the fan equipment should be visually inspected to check for any damage.
Check the details on the motor rating plate to ensure that the correct power supply (voltage, frequency and phase)
is available. An incorrect power supply will lead to permanent damage to the fan motor.

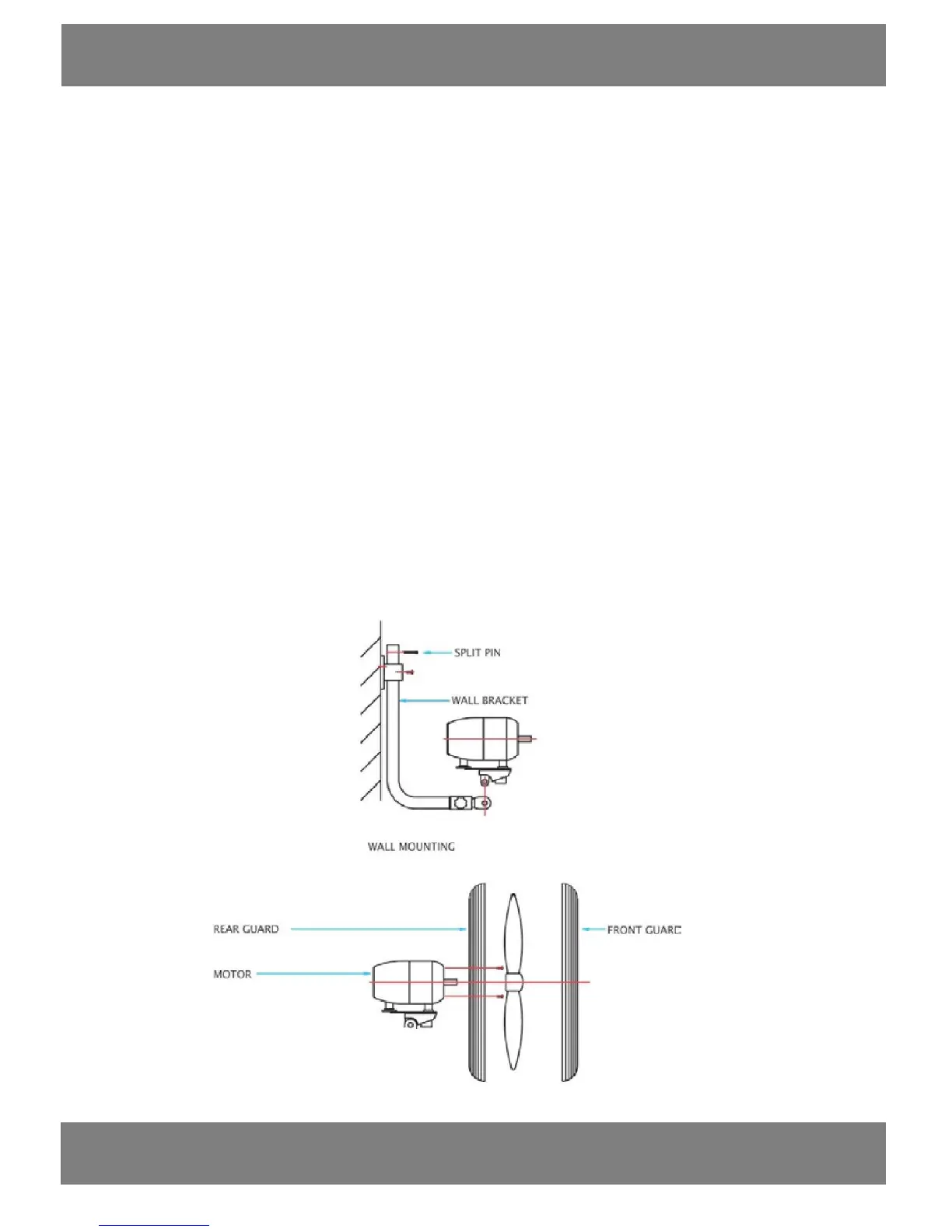

Wall fan – Securely fix the wall plate to a structurally sound wall using suitable fasteners. Ensure that the wall and
wall plate are able to support the cantilevered fan weight. Fit the wall bracket into the wall plate and lock in
position.
Loosen the set screw in the motor mounting flange. Engage the motor support flange in the mounting flange and
tighten the set screw.
Take apart the guard front cover from the rear cover, and securely fasten the guard rear cover to the motor using
the four screws provided.
Fit the impeller to the motor shaft ensuring that the locking screw is securely fastened.
Fit the guard front cover to the rear cover using the clips and screw.
Check that all fasteners are tight and that the impeller rotates freely.
Secure the cable, ensuring that a generous loop of cable is allowed between the cable anchorage point and the
motor. This is to prevent excessive flexure of the cable caused by repetitive oscillation of the fan.
