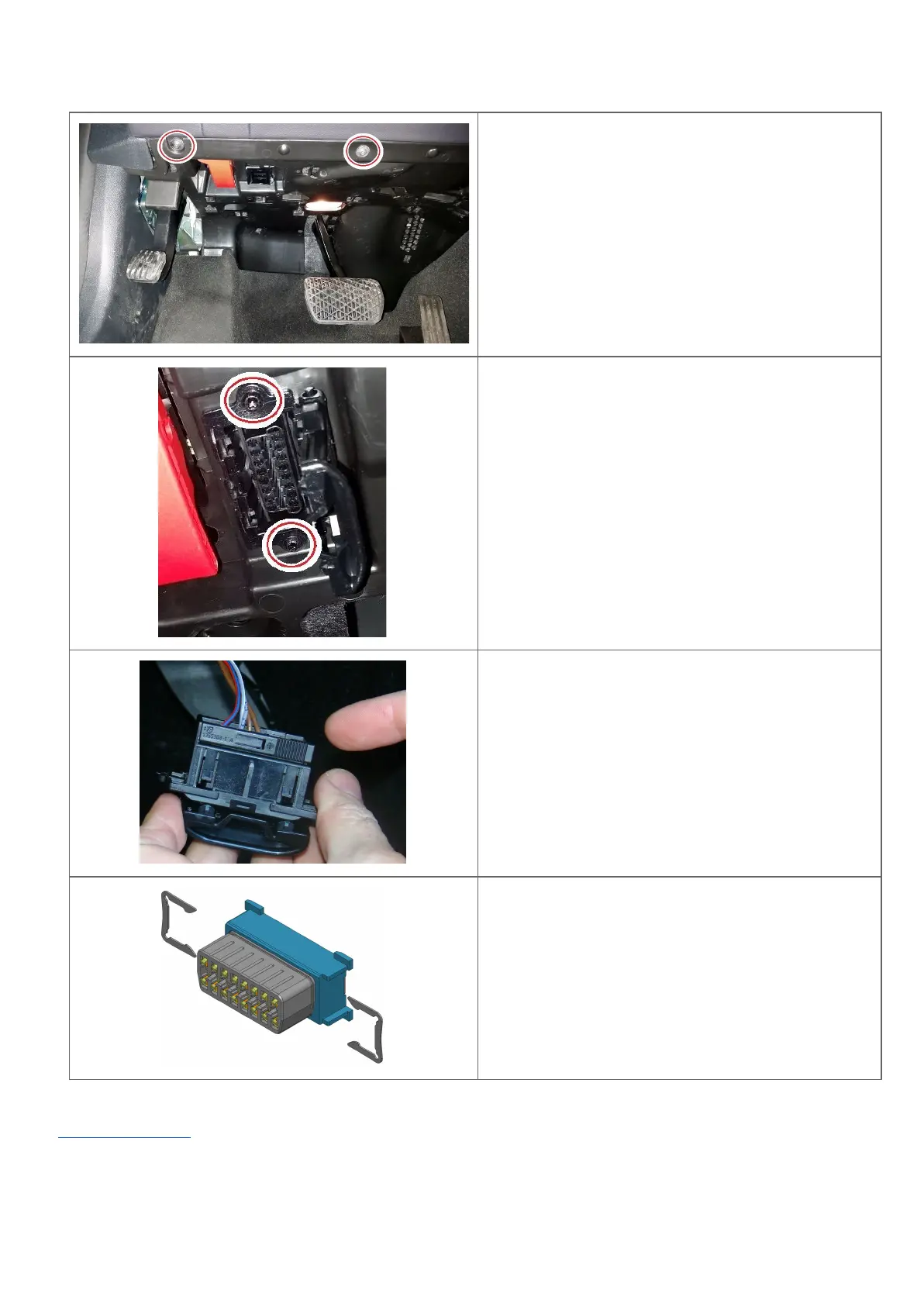

Use a size T20 Torx-driver to remove the 2
screws, then unclip and remove the kick-panel
underneath the dashboard
Use a size T20 Torx-driver to remove the 2
screws, as shown
Carefully unclip and remove the OBD-Port
Slide open the retaining-clip at the top of the
mounting-bracket, and remove the OBD-Port
Fit ADAPTOR-5 to the "short" connector of the
Geotab harness, and secure with the metal clips.
Clip the connector into the bracket, in place of
the vehicle’s original OBD-Port
This vehicle specific technical installation information sheet must only be used with the GO device installation manual
(https://goo.gl/rkLRiA) and is only for use by Geotab Authorised Installers. It is based on Geotab’s suggested best practice, valid
at time of publishing. There may be differences or revisions between specific vehicle models, trim-levels, equipment or accessories
made by the vehicle manufacturer and these are beyond Geotab’s control.
To ensure you have the latest available version of this document, or if you require any assistance please contact your Authorised
Reseller before proceeding with the installation.
