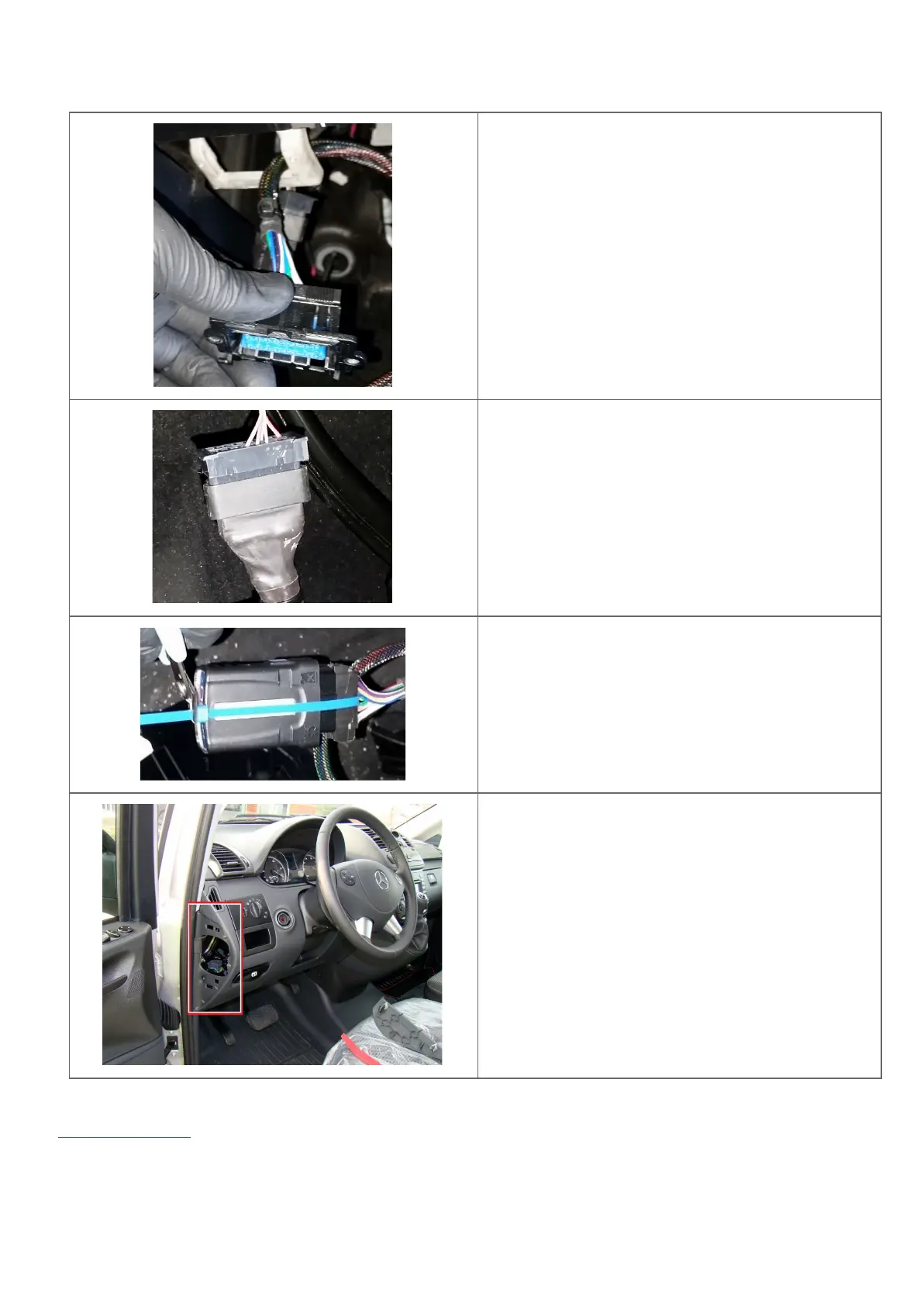

Clip the connector into the bracket in place of the
vehicle’s original OBD-Port
Slide closed the the retaining-clip to lock it in
place.
Plug the vehicle’s OBD-Port into CONNECTOR-1
of the Geotab harness.
Plug the Geotab unit into the remaining connector, and
secure with a cable-tie as shown
Using a flat-bladed screwdriver or suitable tool, remove
the side-panel of the dashboard
This vehicle specific technical installation information sheet must only be used with the GO device installation manual
(https://goo.gl/rkLRiA) and is only for use by Geotab Authorised Installers. It is based on Geotab’s suggested best practice, valid
at time of publishing. There may be differences or revisions between specific vehicle models, trim-levels, equipment or accessories
made by the vehicle manufacturer and these are beyond Geotab’s control.
To ensure you have the latest available version of this document, or if you require any assistance please contact your Authorised
Reseller before proceeding with the installation.
