5 Slew pen in X direction leaving a line 1” long.

Removing the front cover

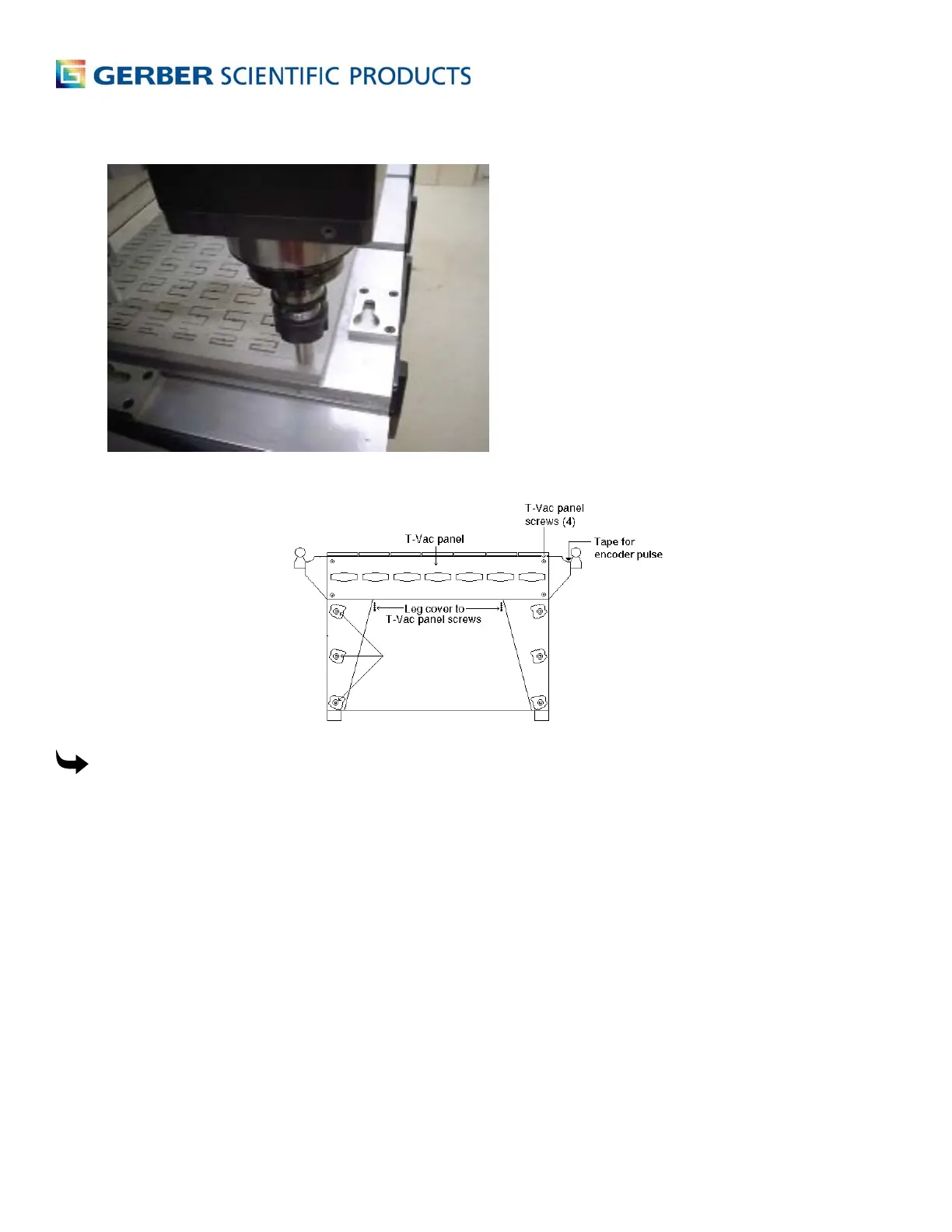

To Remove the front cover

1 Remove the T-Vac T handles from the front of the router by pulling them off the valves.

2 Support the front panel and remove the four screws (3mm) attaching the T-Vac panel to the end

covers and the two screws (2.5mm) attaching the T-Vac panel to the leg covers.
