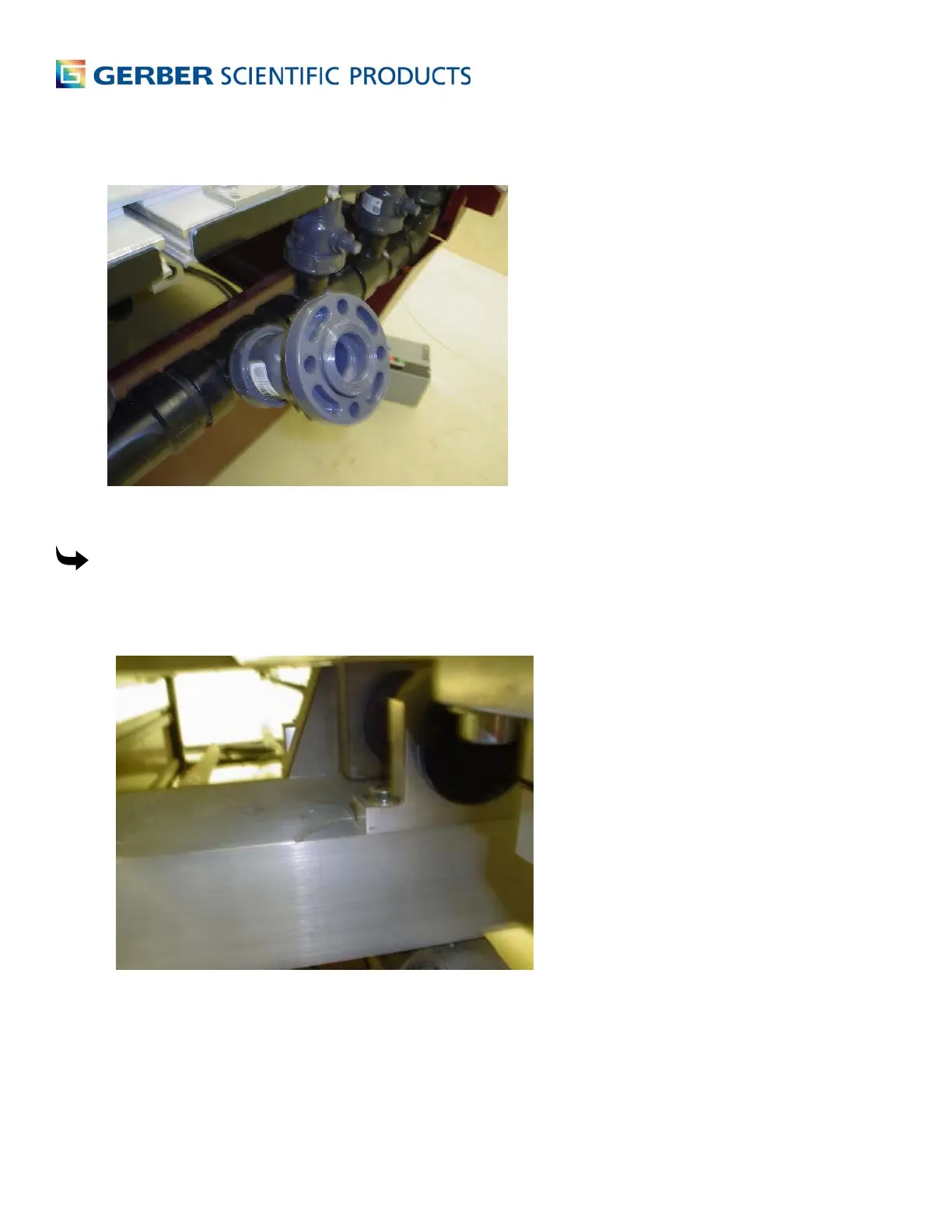

3 Remove the four ball valve mounting bolts (6mm) from the center ball valve and rotate it toward you
and out of the way of the lead screw block.
Removing the Y-Axis lead screw from the router
To Remove the Y-Axis lead screw from the router
1 Unbolt the two (6mm x 25mm) cap screws that secure the front lead screw support block/bushing
assembly from the tie beam using a 5mm Allen wrench. This will be transferred to the replacement
lead screw during installation.
2 Remove the three (4mm x 20mm) screws and flat washers that attach the lead screw nut to the tie
beam using a 3mm Allen wrench and manually move the beam to the rear of the table.
