Page 4 of 9

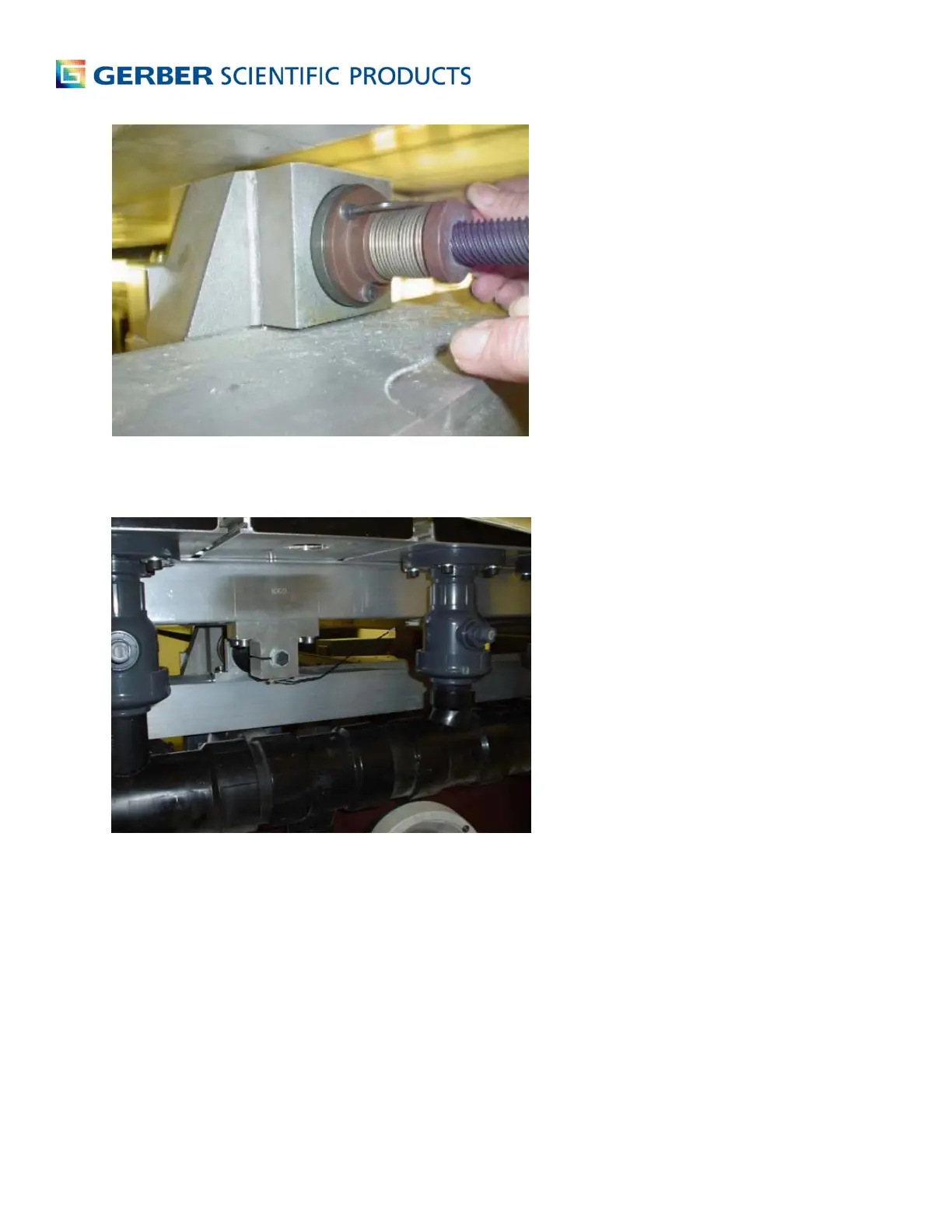

3 Remove the 17mm x 45mm hex-head bolts and flat washers from the front and rear of the lead screw
using the 17mm socket. Then loosen the two (5mm x 30mm) clamping screws in each of the front and
rear lead screw clamps (split blocks) using a 5mm Allen wrench to free the lead screw.
4 Unplug the front limit switch and free the wires from the tie-wrap. Remove the four (6mm x 45mm)
cap screws and flat washers from the front lead screw clamp using a 6mm Allen wrench and slide it
off the lead screw with the limit switch attached.
5 Carefully slide the lead screw/nut/bushing assembly out of the front of the table.
6 Support lead screw and place onto router front skirt.
