Operation
You can check the equipment for correct operation
using the GESTRA ultrasonic measuring unit
VAPOPHONE
®
.
For more details refer to the installation &
operating manual of the ultrasonic measuring
unit.
For critical applications, the equipment can be fitted
with a steam trap monitor.
For this, read the Installation & Operating
Manual of the steam trap monitor.
You can set the Thermovit regulator during
operation.
Changing the settings of the
Thermovit regulator
You can adjust the opening temperature on the
Thermovit regulator.
Have the following tools to hand:
Screwdriver 5.5/100
Combination spanner size 36
There is a risk of injury from burns,
freezing or intoxication when undoing the
union nut.
Wear temperature-
clothing when setting the Thermovit
regulator.
Make sure that the equipment is not
under pressure and has cooled to
lukewarm (20 °C).
To change the setting of the opening temperature,
proceed as follows:

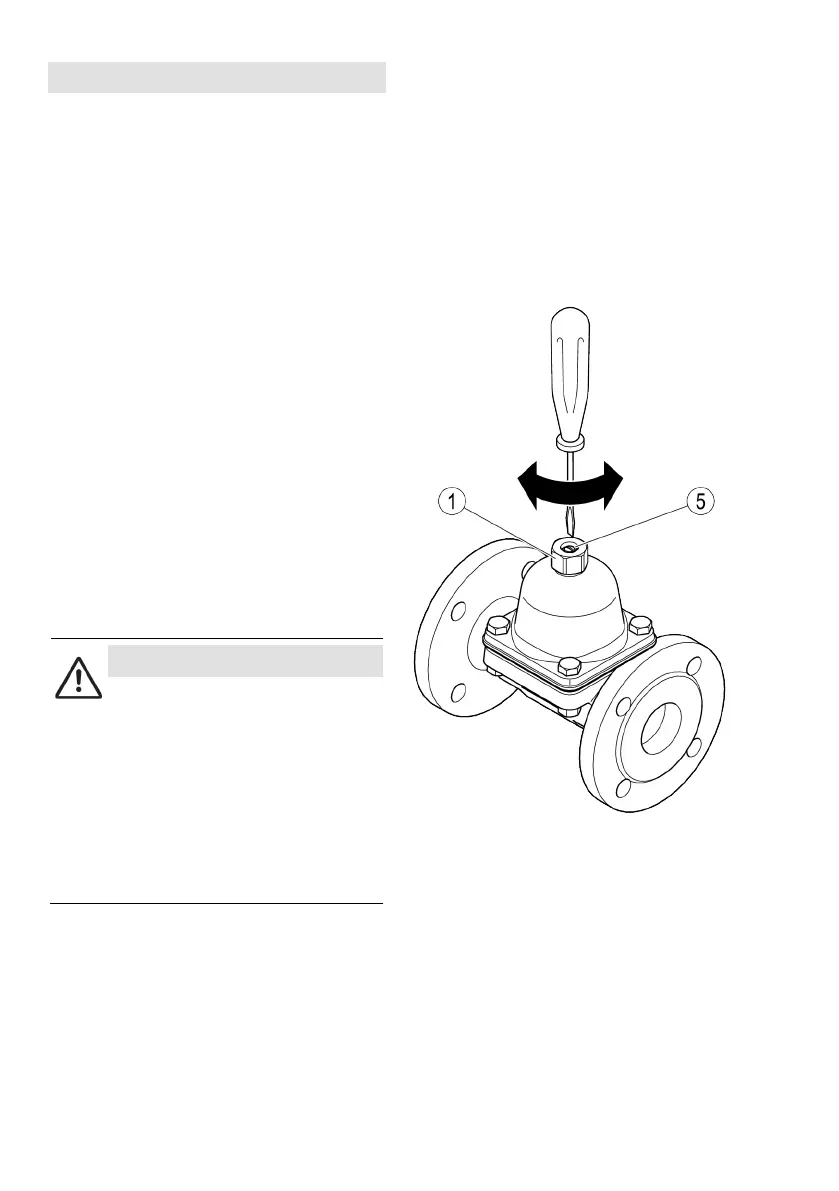

Carefully unscrew the union nut (1) by maximum
1 turn.
A ¼ turn of the adjusting fork (5) changes the
temperature setting by 8 K.
To lower the opening temperature, turn the
adjusting fork (5) clockwise.
The adjusting fork cannot be rotated more than
1½ turns from the factory setting. This reduces the
opening temperature by 48 K.
To raise the opening temperature, turn the
adjusting fork (5) anti-clockwise.
The adjusting fork cannot be rotated more than
1½ turns from the factory setting. This raises the
opening temperature by 48 K.
Tighten the union nut to a torque of 30 Nm.
