Installation

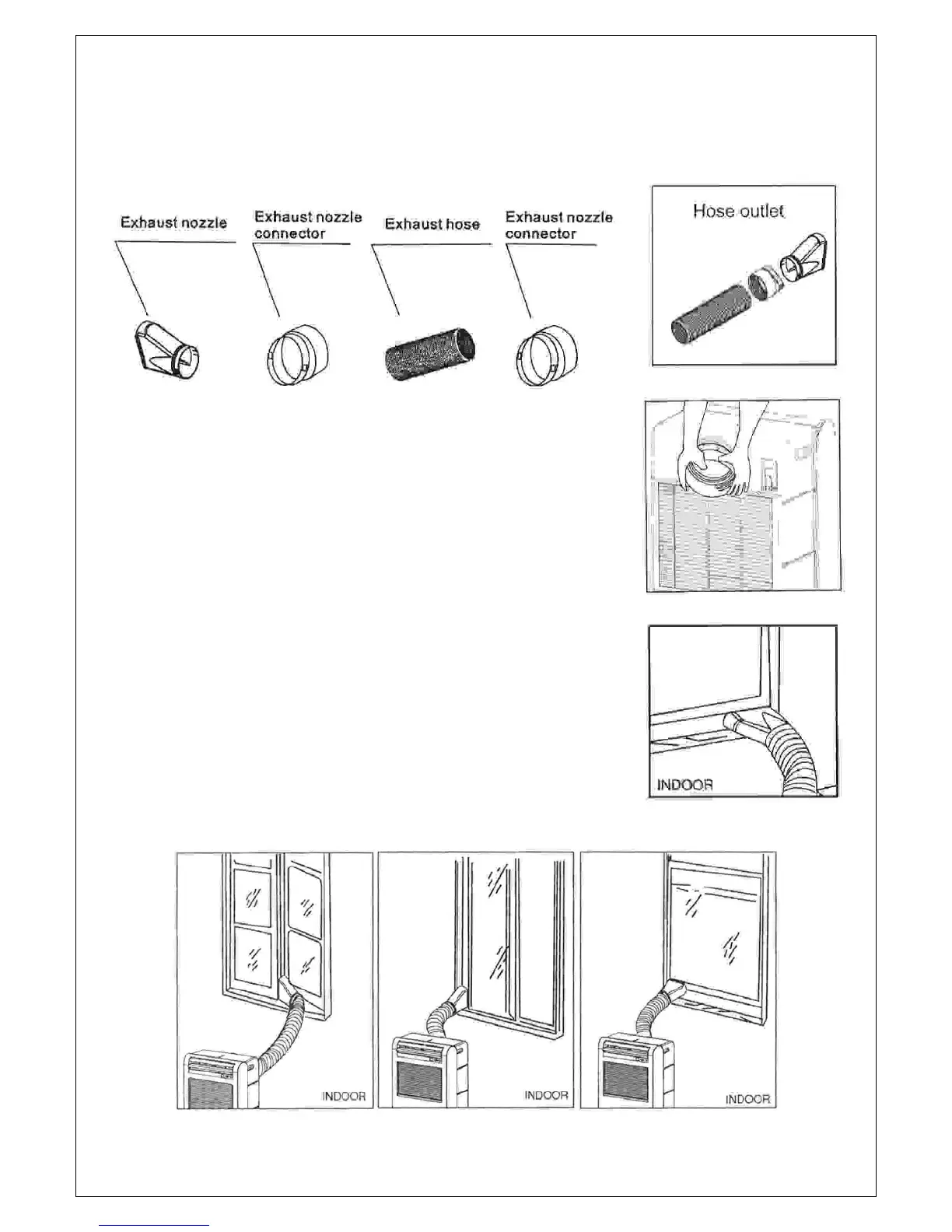

Items Supplied in Exhaust Hose Fitting Kit.
Assembly of the Exhaust Hose
The exhaust hose is assembled by fitting the exhaust nozzle connector to one
end of the hose and the exhaust duct connector to the other end of the hose.
This is done by screwing the connectors in an anti-clockwise direction onto the
ends of the hose.
The end of the hose fitted with the exhaust duct connector fitted is then
connected to the exhaust outlet at the back of the machine. Care should be
taken to ensure that the two rectangular cut-outs in the connector are located
over the two moulded fingers positioned on the diameter of the machine outlet.
The connector can be removed from the machine by rotating it slightly and
pulling it away from the machine at the same time.
The exhaust nozzle should be fitted to the exhaust nozzle connector on the free
end of the hose.
The hose should then be extended and the exhaust nozzle placed in an open
window to vent any warm or moist air extracted from the room, to the outside.
The window should be closed as far as possible to trap the nozzle as shown
below.
