3‐5. System components
The system is installed on the digital cinema projector, and each includes
components as below.
3‐5‐1、System control modulator
System control modulator is connected with projector, to control the SYNC
signal for left and right eyes.

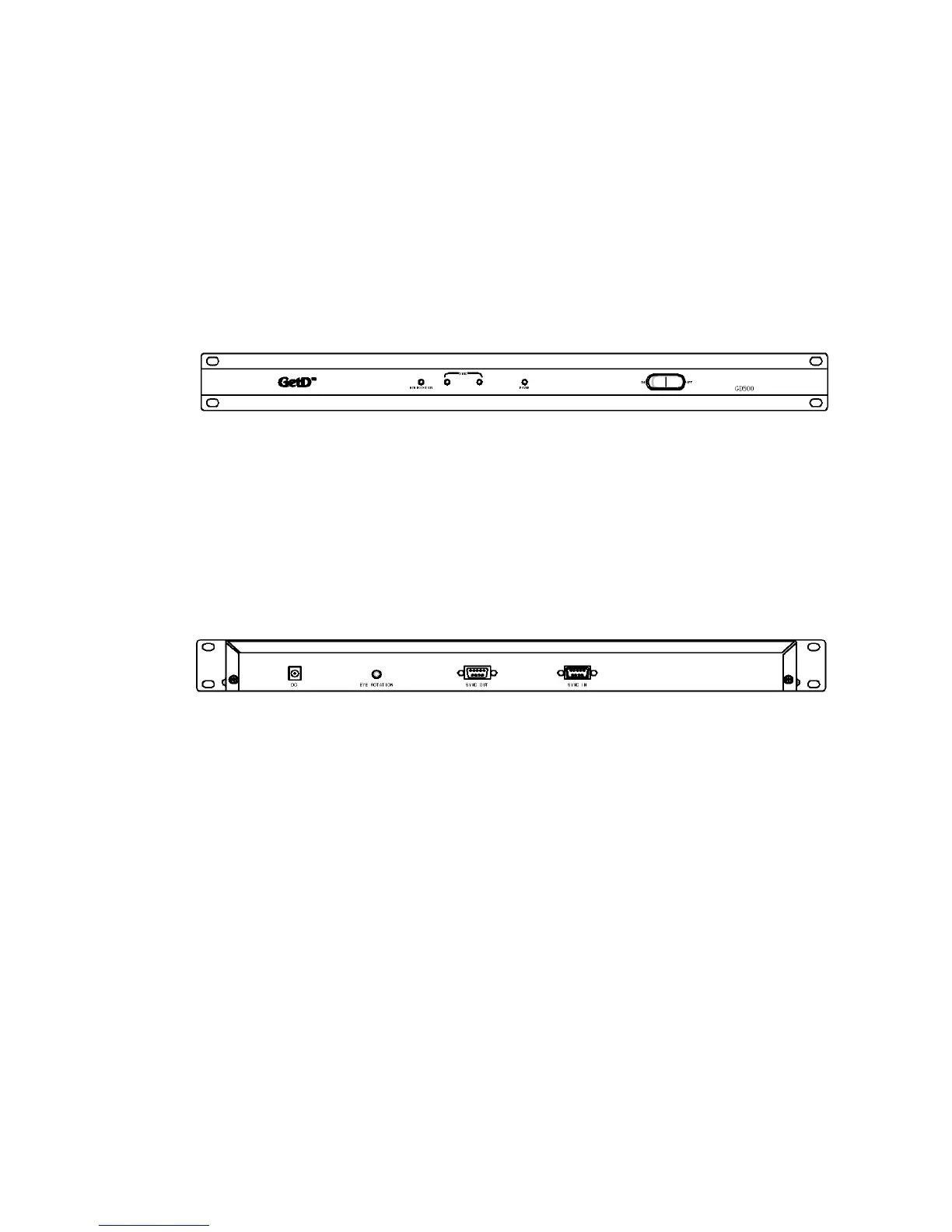

‐‐‐‐‐‐Picture for the front side
● ON/OFF Power on and off.
● POWER The LED illuminates green when power on
● SYNC The LED illuminates green for normal 3D signal, Red for
abnormal signal
● REVERSE The LED illuminates green for left and right eyes switch
‐‐‐‐‐‐‐Picture for the back side
● DC Power interface
● REVERSE leftandrighteyesswitch
● SYNC OUT 3D signal output
● SYNC IN 3D signal input
