Getinge 46-4 Installation Instructions

9
Installation instructions
5018606-00 Rev.C
Edition 0704
• Connect the disinfector to a waste outlet with a capacity of at least 50 litres/min.
The trap can be connected towards the rear or downwards, as shown in
Figure 8. Waste diameter: 50 mm.
• Connect air exhaust from dryer (if the machine has a dryer). Air quantity approx
125 m
3
/h.

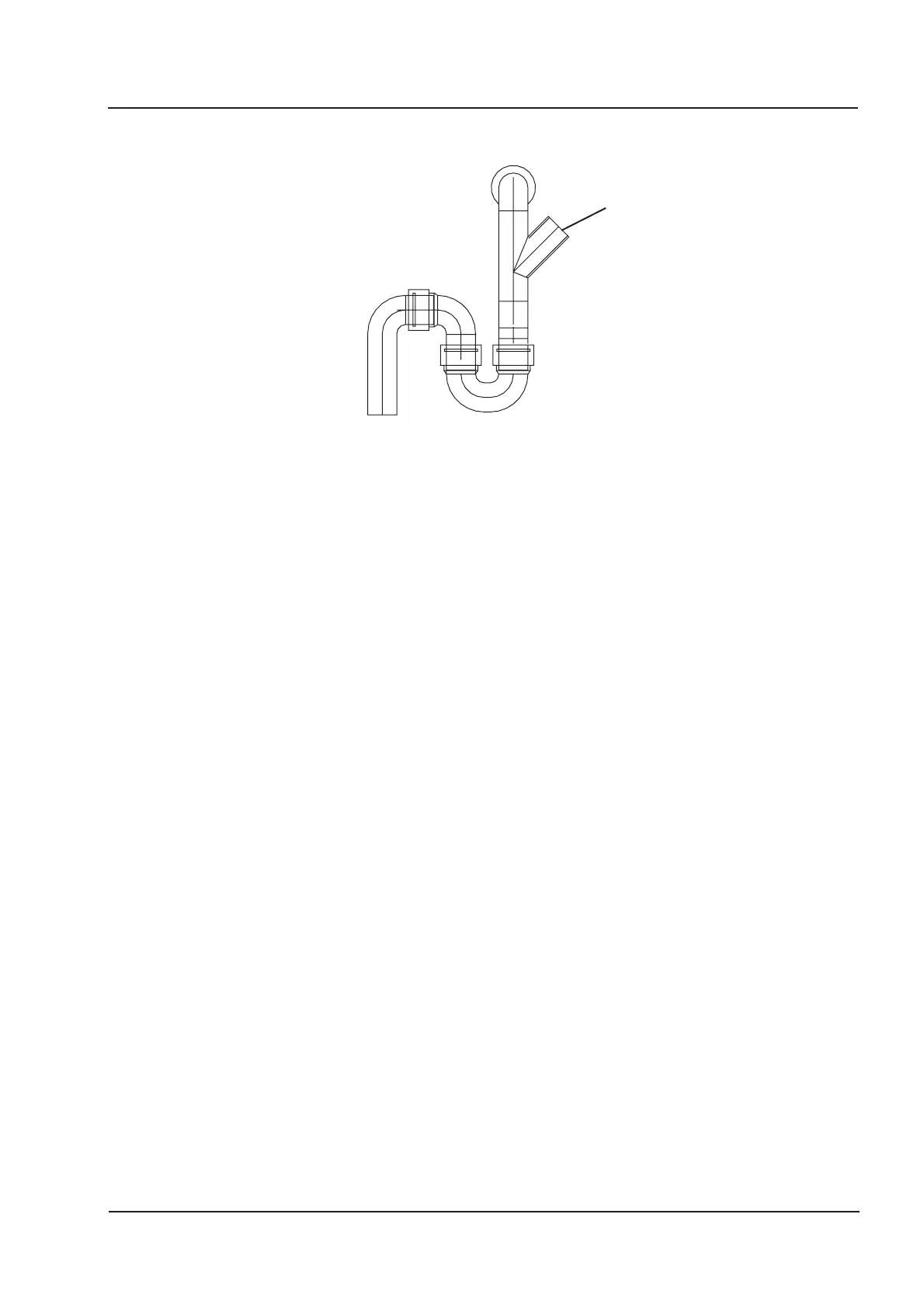

Leave this air
hole open
Figure 9. Connecting waste and draft traps
Installation
avlopp_46
