GEZE GmbH
P. O. Bo x 13 6 3
71229 Leonberg
Ger many
Tel.: 0049 7152 203-0
Fax: 0049 7152 203-310
www.geze.com
79988-01

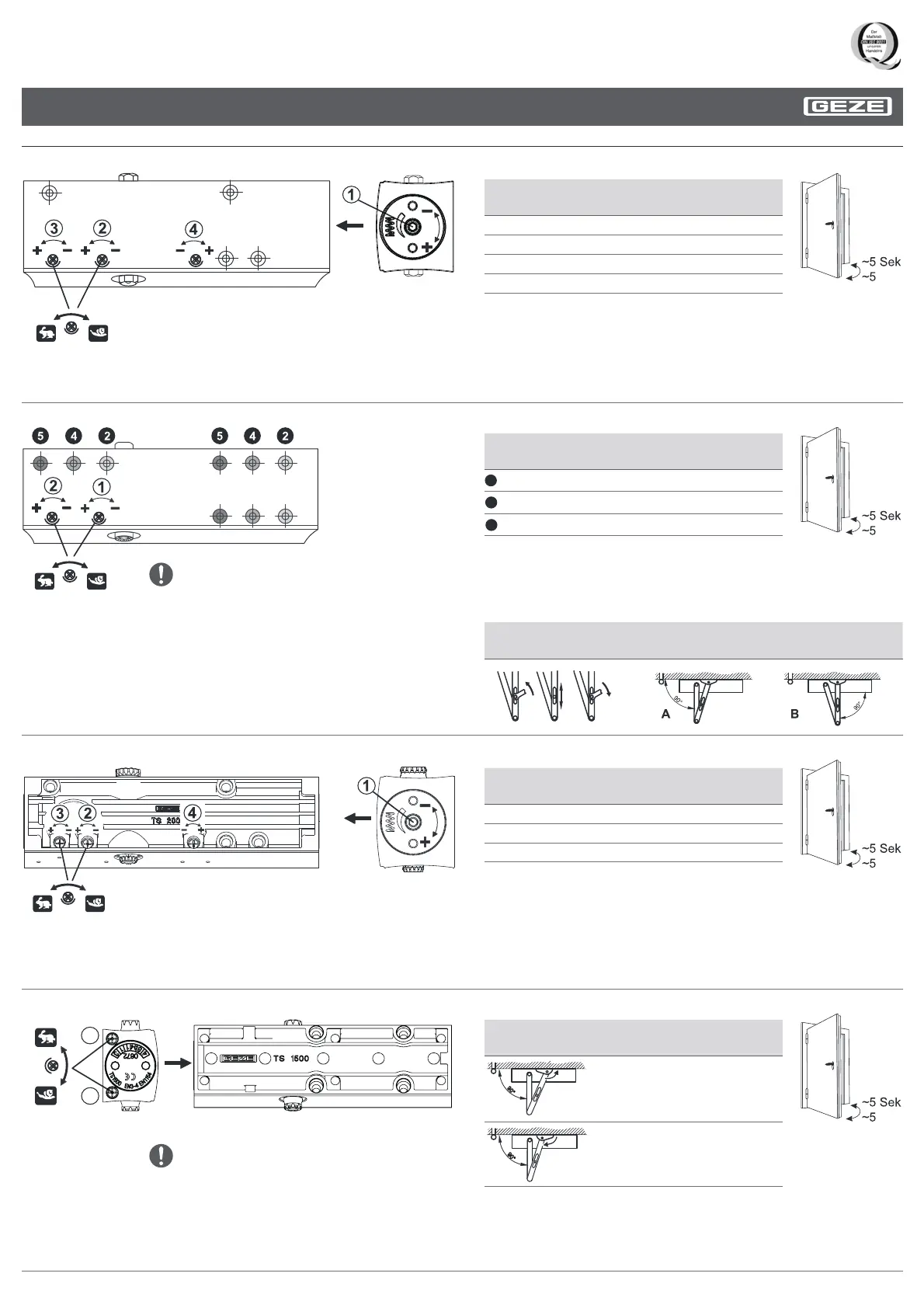

GEZE TS 3000 V
Sec
Einstellung Türschließergröße
closer size set ting
Fl ü g el b r ei t e [m m]
leaf width [mm]
Anschlag - / limit stop - bis 750 / till 750
2,5 Umdrehungen / 2,5 turns 750 - 850
5 Umdrehungen / 5 turns 850 - 950
Anschlag + / limit stop + 950 - 1100
Leichtngige Tür muß vom Schließer
vollständig geschlossen werden!
Smooth-moving door must be completely closed
by the closer!
1 Türschließergröße / closer size
2 Schließgeschwindigkeit / closing speed
3 Endschlag / latching action
4 Önungsmpfung (nur bei TS 3000 VBC) /
back check (only for TS 3000 VBC)
GEZE TS 2000 V
Sec
Einstellung Türschließergröße
closer size set ting
Fl ü g el b r ei t e [m m]
leaf width [mm]
2
Größe 2 / size 2 750 - 850
4
Größe 4 / size 4 850 - 1100
5
Größe 5 / size 5 1100 - 1250
Leichtngige Tür muß vom Schließer
vollständig geschlossen werden!
Smooth-moving door must be completely closed
by the closer!
Einstellung Türschließergröße über
verset zte Montage / closer size setting
via st aggered mount ing
1 Schließgeschwindigkeit / closing speed
2 Endschlag (nur bei TS 2000 VBC ansonsten
über Gestänge) / latching action (only for
TS 2000 VBC otherwise via link arm)
Einstellung Endschlag
latching action setting
mit Endschlag
with latching action
ohne Endschlag
without latching action
GEZE TS 2000 NV
Sec
Einstellung Türschließergröße
closer size set ting
Fl ü g el b r ei t e [m m]
leaf width [mm]
Anschlag - / limit stop - bis 850 / till 850
4 Umdrehungen / 4 turns 850 - 950
Anschlag + / limit stop + bis 1100
Leichtngige Tür muß vom Schließer
vollständig geschlossen werden!
Smooth-moving door must be completely closed
by the closer!
1 Türschließergröße / closer size
2 Schließgeschwindigkeit / closing speed
3 Endschlag / latching action
4 Önungsmpfung (nur bei TS 2000 NV BC) /
back check (only for TS 2000 NV BC)
GEZE TS 1500
1
2
Sec
Einstellung Türschließergröße
closer size set ting
Fl ü g el b r ei t e [m m]
leaf width [mm]
A
9
0
°
850 - 950
B
9
0
°
950 - 1100
Einstellung
r sch l i eßerg r ö ße
über drehen
des Gest än geob er t eils / closing size set t ing
by turning the upper part of the rod assembly
Leichtngige Tür muß vom Schließer
vollständig geschlossen werden!
Smooth-moving door must be completely closed
by the closer!
1 Schließgeschwindigkeit / closing speed
2 Endschlag / latching action
