S1 S2 S3 S4

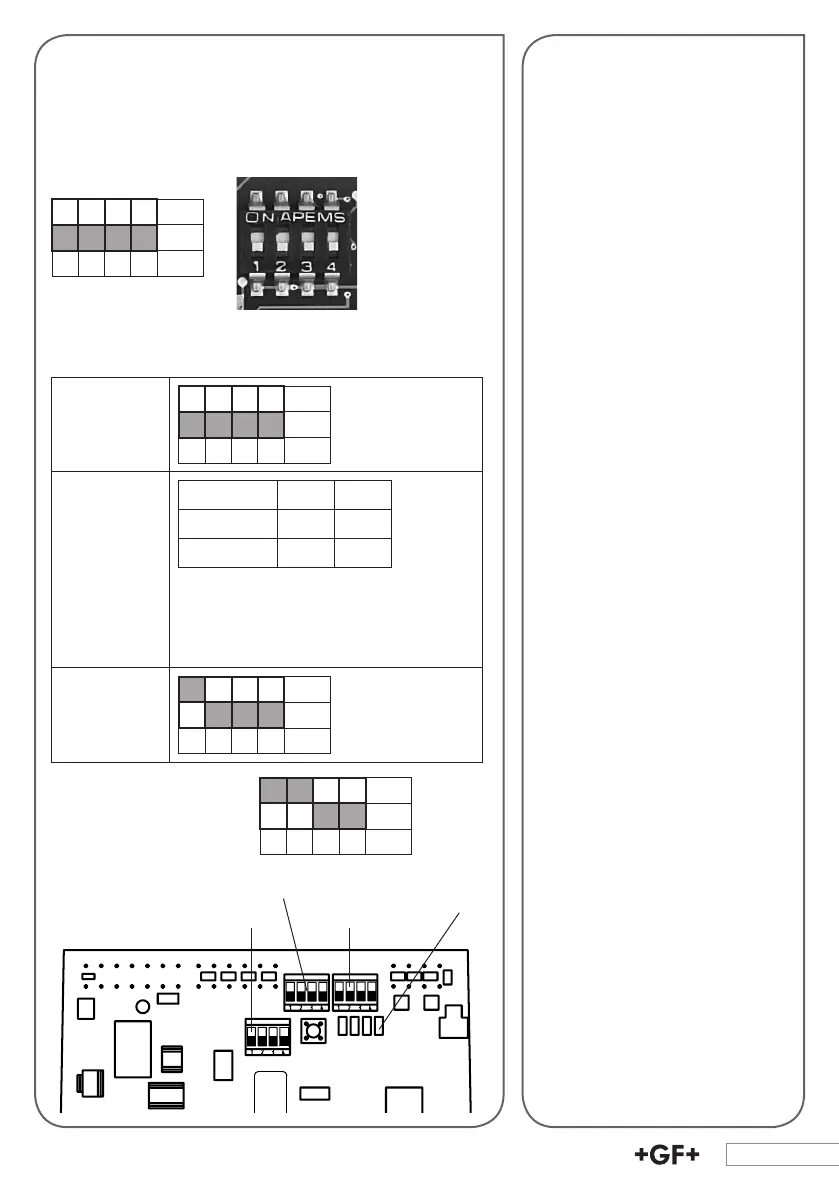

Signal conguration
The four DIP switches on each of the three switch blocks
on the controller print serve for the conguration of the
signals.
DIP Schalter Block 1 - 3:
ON
OFF
S1 S2 S3 S4
Switch combination
DIP switch
Block 1
ON
OFF
S1 S2 S3 S4
DIP switch
Block 2
Signal type S1 S2
0-10 V OFF OFF
4-20 mA ON ON
S3: ON: input inverted
OFF: input not inverted
S4: ON: use S3L Master
OFF: use S3L Slave
DIP switch
Block 3
ON
OFF
S1 S2 S3 S4
Example:
Set signal value 4 – 20 mA,
not inverted, use S3L Slave
DIP Switch Block 1
LED‘s
DIP Switch Block 2DIP Switch Block 3
All switches must
be set to OFF
S1 must be
set to ON
S2-S4 must be
set to OFF
