GFL 1002 - Circuit Diagram and Spare Parts; Circuit Diagram

1002 - 1013 Wasserbäder
Water Baths

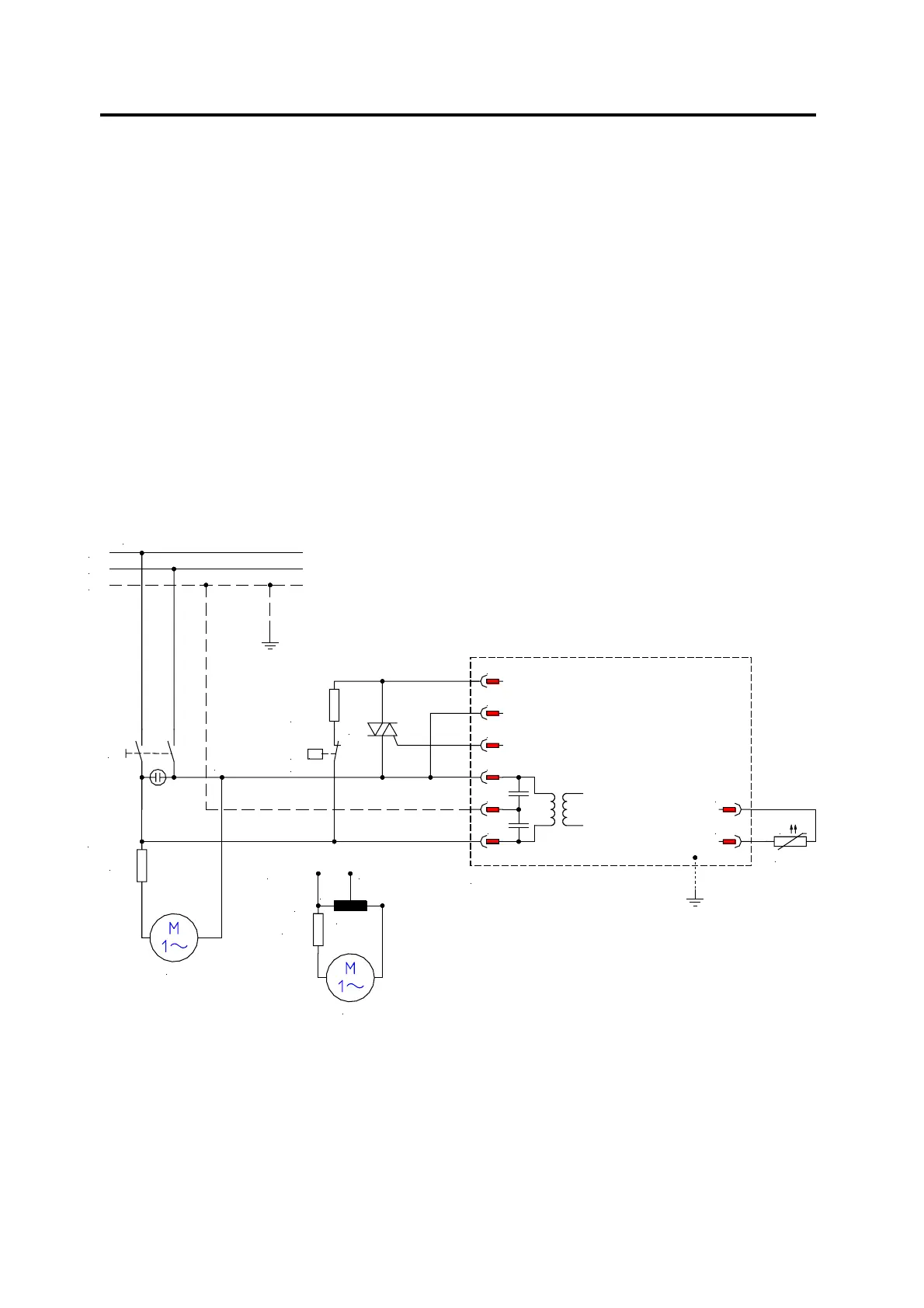

12. Stromlaufplan Circuit diagram
A1 Elektronischer Temperaturregler Electronic temperature regulator
B1 Temperaturfühler Temperature sensor
E1 Rohrheizkörper Heating element
F1 Wassermangelsicherung Low water cut-off
M1 Rührmotor
(Typ 1012 / 1013) Stirrer motor (Type 1012/1013)
R1 Vorwiderstand M1
(Typ 1012 / 1013) Protective resistor (Type 1012/1013)
S1 Hauptschalter Main switch
T1 Transformator 230V/120V
(Typ 1012 / 1013 in 120V)
Transformer 230V/120V
(Type1012/1012 in 120V)
V1 Triac Triac
X5
X4
X3
X2
X1
T>
F1
>120°C
X7
X8
q
B1
S1
L1
N
PE
E1
V1
230V/1/N/PE 50....60Hz
ober 120V/1/N/PE 50....60Hz
X6
A1
Anschl.2
Anschl.1
Anschl.1
120V
230V
Anschl.2
T1
R1
M1
R1
M1
Seite 15 Rev.03
