APPENDIX A

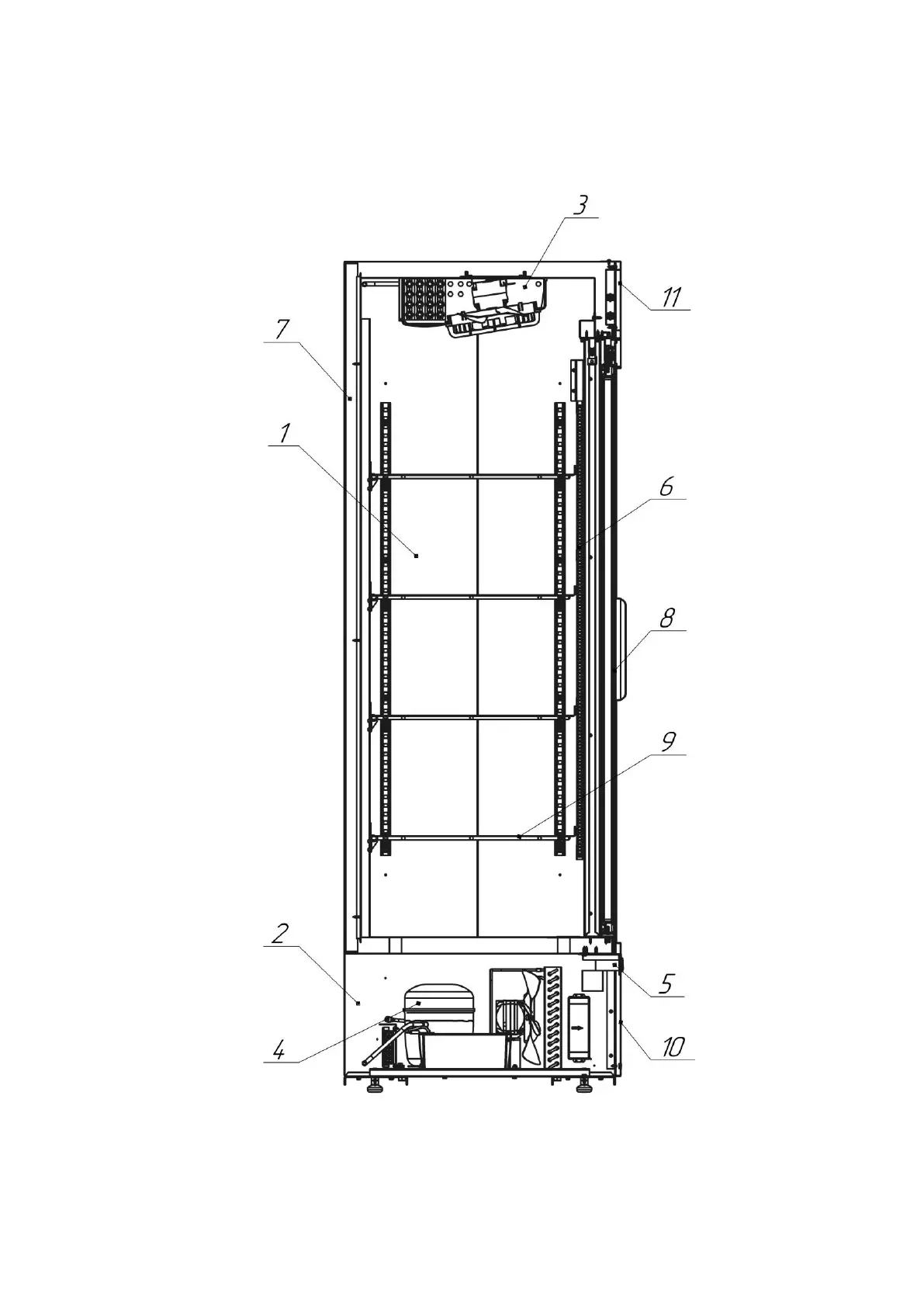

Sectional view of the cabinet
0,7SK slide; 1,12SK slide
1. Effective volume. 2. Engine compartment. 3. Air cooler (evaporator). 4.
Compressor and condenser. 5 Controller. 6. Diode lamp. 7. Frame. 8. Door. 9. Rack-
shelf. 10. Machine section shield. 11. Lighting box.
