16 - HOW TO ORDER SPARE PARTS
Upon the spare parts request, please quote always:
Machine type, serial number, quantity of the requested spare parts, article number (these data can be read on the
rating plate or supplied by the technical information of the machine and by the user’s and maintenance manual).
For electrical components with a different voltage and frequency than V 230-380 50Hz (data available on the rating
plate of the faulty component), specify the right voltage and frequency after having mentioned the article number.
The technical data, the descriptions and pictures included in this manual are not binding. The manufacturer
reserves the right to make any necessary modification without notice or having to up-date the present manual.

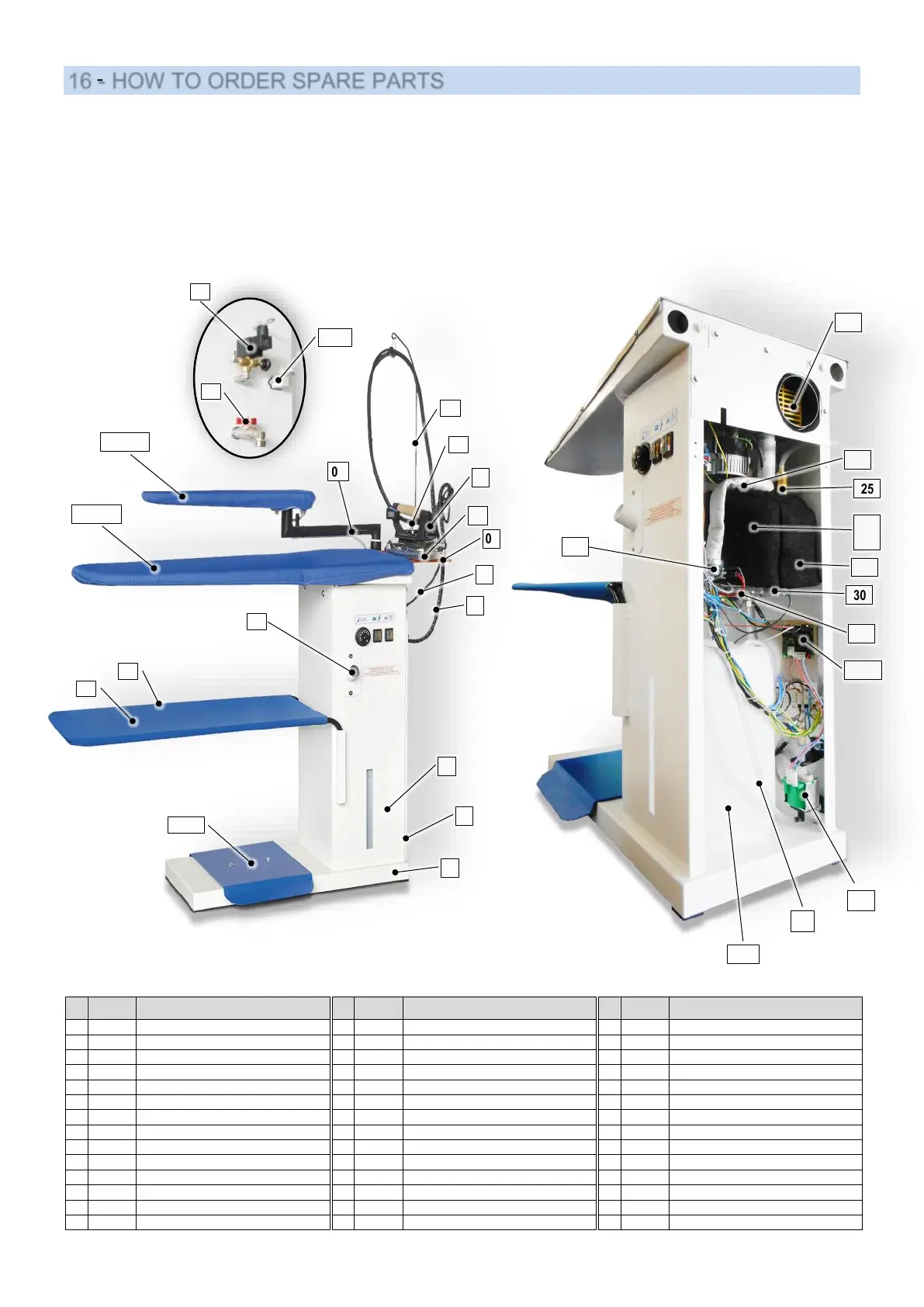

The following are the main machine components:
Pos
Cod.#
DESCRIÇÃO
Pos
Cod.#
DESCRIÇÃO
Pos
Cod.#
DESCRIÇÃO
1
Z14H06
Sleeve shape joint
15
163487
Frame Doris-A
29
37A010
Boiler discharge cock
2
163472
Sleeve shape
16
173443
Tubular support for garment tray
30
212035
Boiler heater 1450W
3
163473
Sleeve shape plate
17
274208
Garment tray cloth
31
45B018
Safety thermostat for boiler heater
4
Z27P33
Sleeve shape padding
18
163484
Vacuum control pedal
32
25L043
Printed circuit board
5
364253
Antenna for cable
19
163486
Bedplate
33
30A001
PCB-wiring
6
25A001
Silicone pad for iron rest
20
43D002
Vacuum micro-switch
34
49E005
Boiler probe
7
163488
Rear panel
21
49E007
Water tank electrodes
35
45G012
Pressure switch
8
Z01S10
Steam iron mod. K
22
163403
Coupling for antenna
36
43H006
Iron plug
9
165037
Water tank
23
46B001
Electric cable for steam iron
37
43G004
Steam iron socket
10
163485
Iron rest tray
24
07A001
Steam hose 2.4 m
38
06D030
Hoses for water feeding/recovery
11
06D012
Water feeding hose
25
38S001
Safety relief valve
39
Z07P14
Water pump kit
12
163489
Board
26
39B045
Steam solenoid valve
40
224325
Boiler insulation
13
163480
Board plate
27
201018
Boiler complete with heater 1450W
41
42D006
Vacuum motor
14
Z27P32
Board padding
28
201011
Boiler drum
09-21
25
27
28
30
31
32-33
34
35
38
39
40
41
02-03-04
01
05
06
07
08
10
11
12-13-14
15
19
16
X
17
X
18-20
22
23
24
26
29
36-37
