Revision August 2006, 01EE, SW--PW V1.03/CTL V2.03 1-1
Chapter 1 Introduction
1.1 Receiving and Inspection
This VFD-E AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
Check to make sure that the package includes an AC motor drive, the User
Manual/Quick Start and CD, dust covers and rubber bushings.
Inspect the unit to assure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

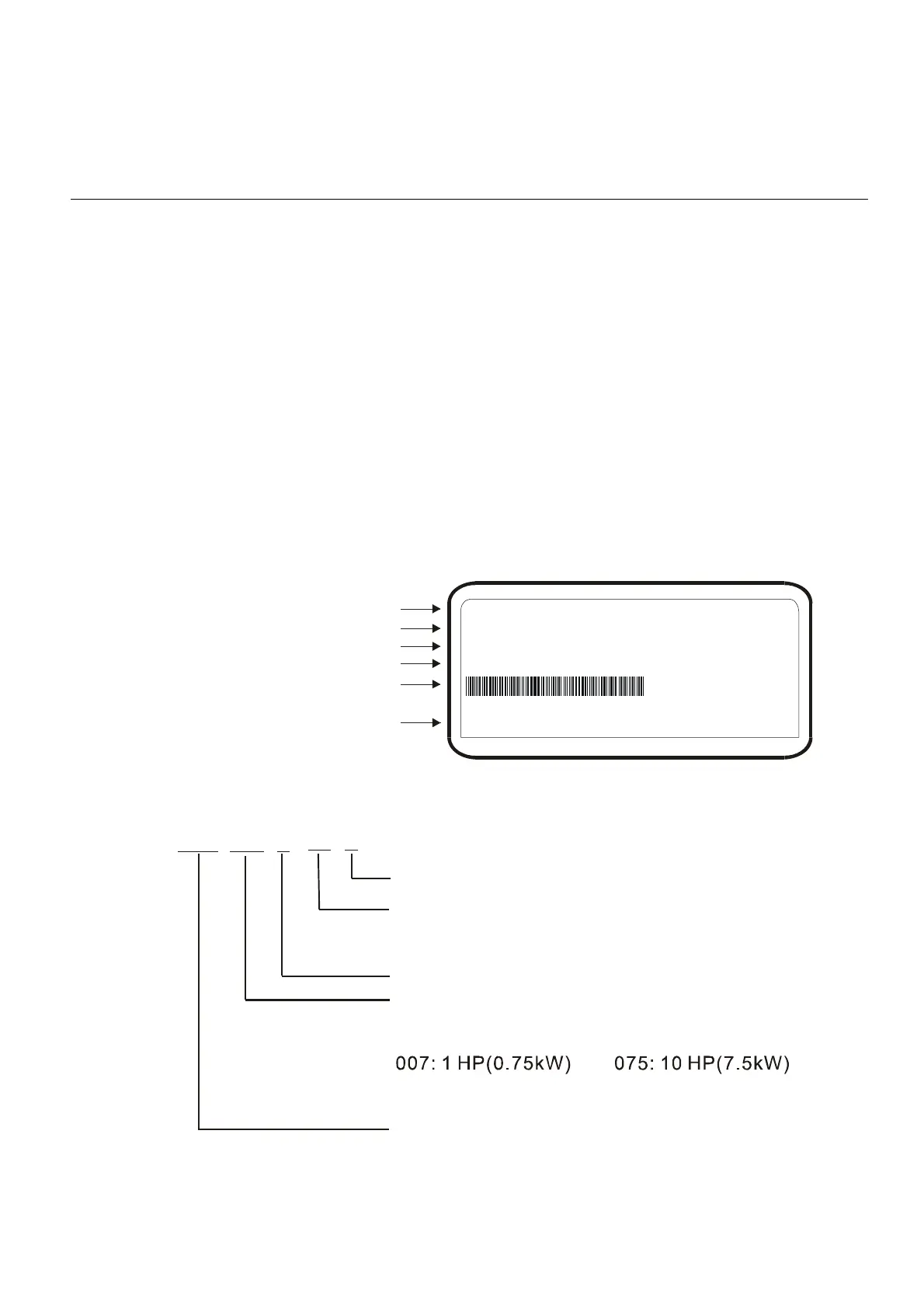

1.1.1 Nameplate Information
Example for 1HP/0.75kW 3-phase 230V AC motor drive
MODEL VFD007E23A
:
INPUT :3PH 200-240V 50/60Hz 5.1A
OUTPUT :3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP
FREQUENCY RANGE : 0.1~400Hz
Serial Number & Bar Code
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
007E23A0T5011230
01.03
02.03
Software Version
Power Board
Control Board
1.1.2 Model Explanation
VFD
Version Type
23
Mains Input Voltage
11:115 Single phaseV
21: phase230V Single
23:230 Three phaseV
E
E Series
007
Applicable motor capacity
004: 0.5 HP(0.4kW)
015: 2 HP(1.5kW)
022: 3 HP(2.2kW)
Series Name ( ariable requency rive)
VF D
43:460 Three phaseV
002: 0.25 HP(0.2kW)
055: 7.5 HP(5.5kW)
110: 15 HP(11kW)
037: 5 HP(3.7kW)
