Chapter 1 Introduction
VFD-E Series
1-2 Revision August 2006, 01EE, SW--PW V1.03/CTL V2.03

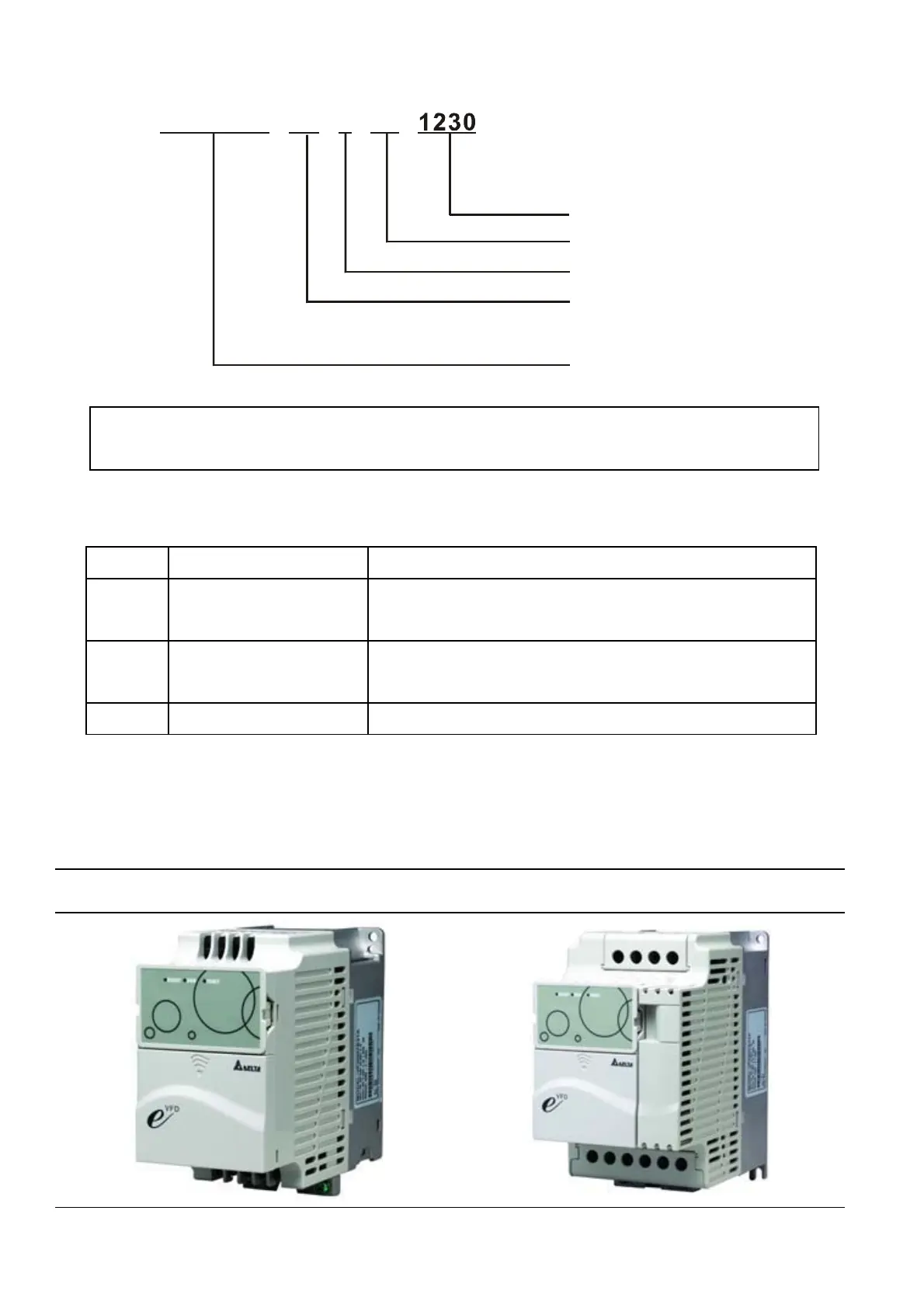

1.1.3 Series Number Explanation
01
6
0T007E23A
Production number
Production year 2006
Production factory
Production week
(Taoyuan)
Model
230V 3-phase 1HP(0.75kW)
If the nameplate information does not correspond to your purchase order or if there are
any problems, please contact your distributor.
1.1.4 Drive Frames
Frame Power range Models
A 0.25-2hp (0.2-1.5kW)
VFD002E11A/21A/23A, VFD004E11A/21A/23A/43A,
VFD007E21A/23A/43A, VFD015E23A/43A
B 1-5hp (0.75-3.7kW)
VFD007E11A, VFD015E21A,
VFD022E21A/23A/43A, VFD037E23A/43A
C 7.5-15hp (5.5-11kW) VFD055E23A/43A, VFD075E23A/43A, VFD110E43A
Please refer to Chapter 2.3 for exact dimensions.
1.2 Appearances
(Refer to chapter 2.3 for exact dimensions)
0.25-2HP/0.2-1.5kW (Frame A) 1-5HP/0.75-3.7kW (Frame B)
