Appendix B Accessories
_
VFD-E Series
B-18 Revision August 2006, 01EE, SW--PW V1.03/CTL V2.03
MCM MO2 MO3
Photocoupler Output
MO4 MI7 MI8 MI9 DCM 24V
B.10 Fieldbus Modules
B.10.1 DeviceNet Communication Module (CME-DN01)

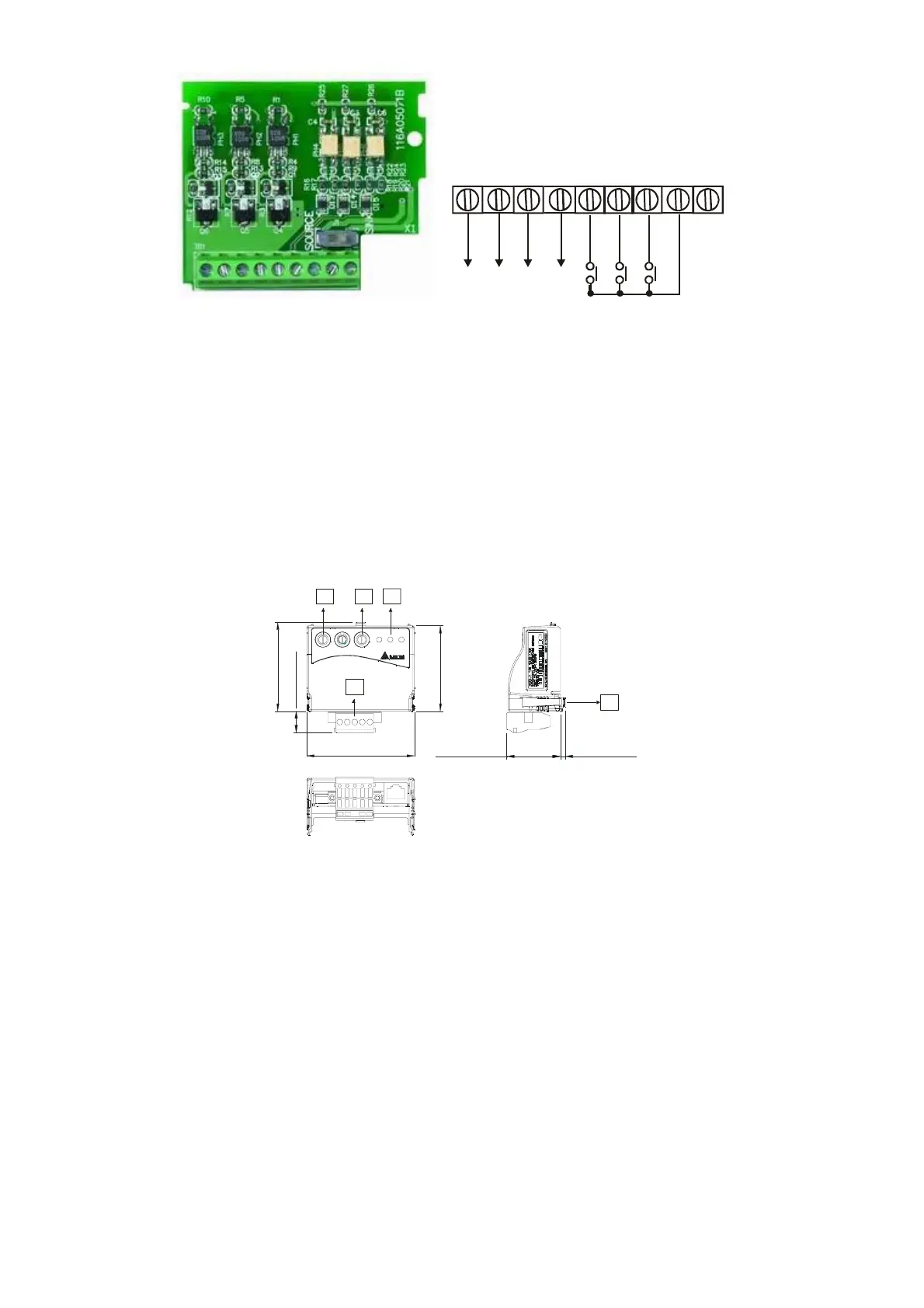

B.10.1.1 Panel Appearance and Dimensions
1. For RS-485 connection to VFD-E 2. Communication port for connecting DeviceNet
network 3. Address selector 4. Baud rate selector 5. Three LED status indicators for
monitor. (Refer to the figure below)
72.2 [2.84]
57.3 [2.26]
14.3 [0.57]
59.7 [2.35]
3.5 [0.14]35.8 [1.41]
CME-DN01
ADD1 ADD2
SP
500K
250K
125K
BAUD
MODNET
UNIT: mm(inch)
1
543
2
B.10.1.2 Wiring and Setting
Refer to following diagram for details.
