Appendix D How to Use PLC Function
VFD-E Series
D-44 Revision August 2006, 01EE, SW--PW V1.03/CTL V2.03
M1000
D0
D20
K4
M0
M1
M2
M3
M4
M5
M6
M7
M8
M9
M10
n=3
M11
Y10
Y11
Y12
Y13

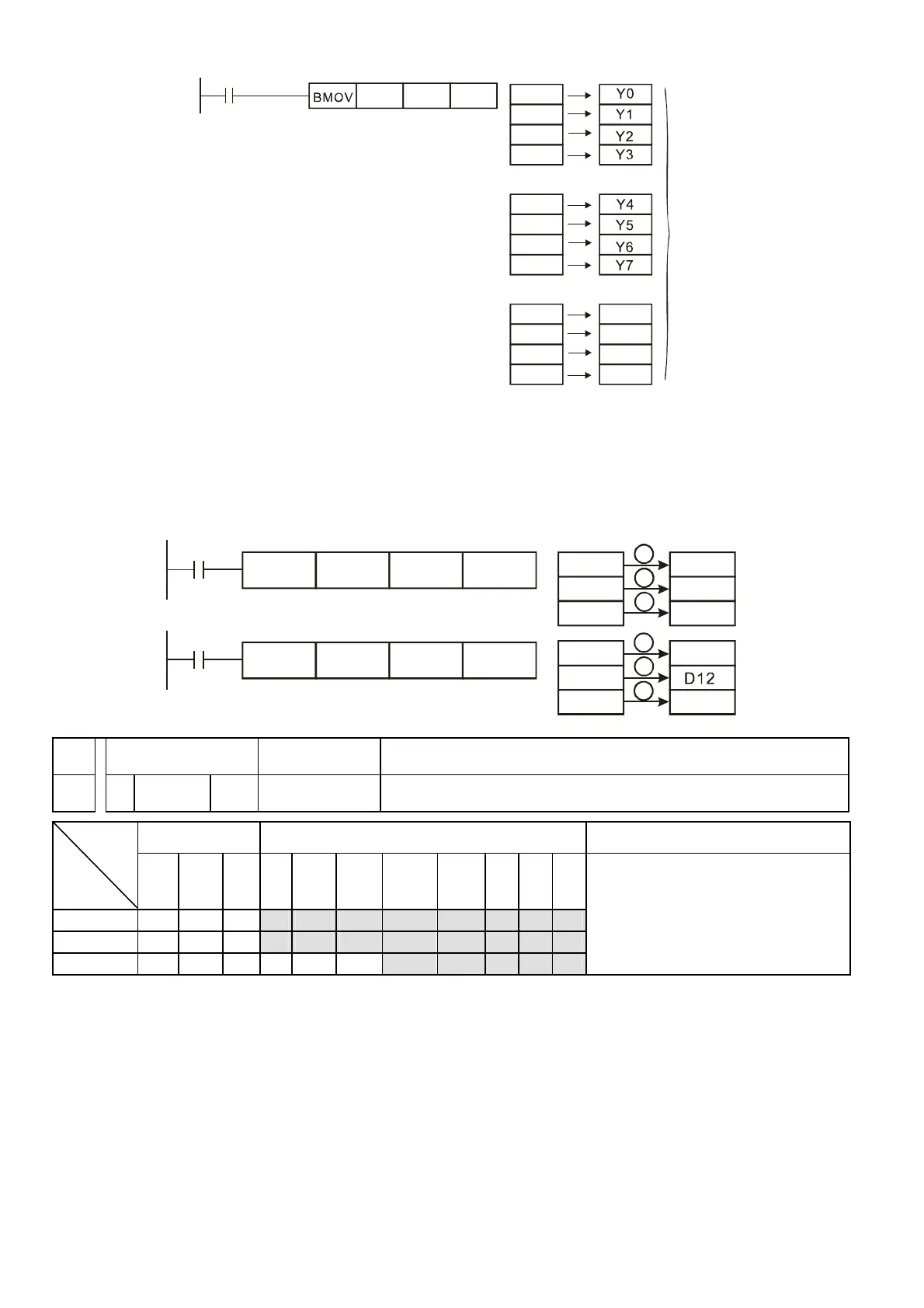

Program Example 3:
The BMOV command has built the automatic movement as the program example below to prevent
overwriting errors from occurring when the specified numbers of S and D coincide.
When S > D, the BMOV command is processed in the order as MШNШO
X10
BMOV D20 D19 K3
D19
D20
D21
D11
D13
X11
BMOV D10 D11 K3
D20
D21
D22
D10
D11
D12
1
2
3
1
2
3
API Mnemonic Operands Function
20 ADD P S
1
, S
2
, D Addition
Bit Devices Word devices Program Steps
Type
OP
X Y M K H KnX KnY KnM T C D
S
1
* * * * * * * *
S
2
* * * * * * * *
D * * * * *
ADD, ADDP: 7 steps
DADD, DADDP: 13 steps
Operands:
S1: Augend S2: Addend D: Addition result
