Chapter 4 Digital Keypad Operation

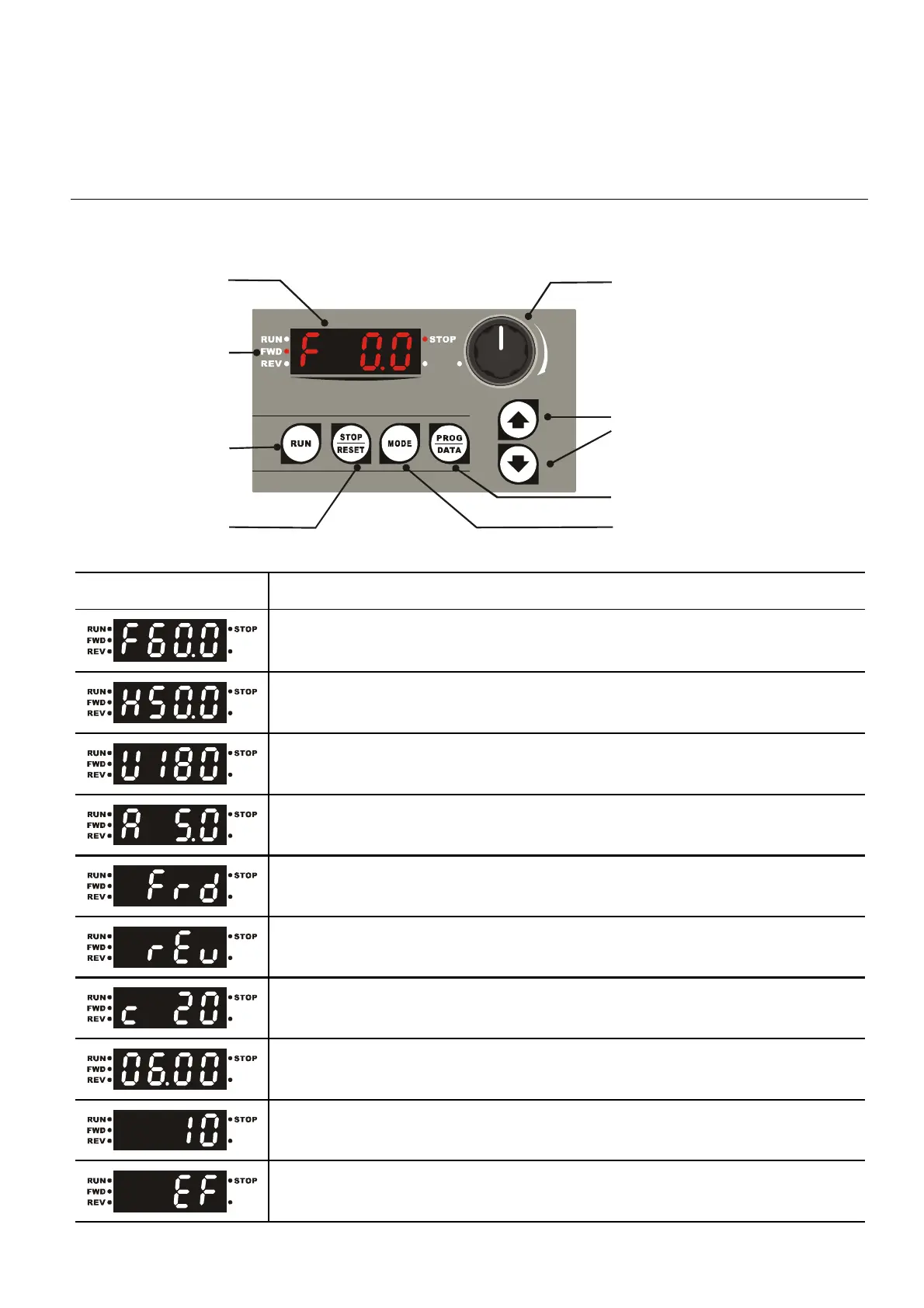

4.1 Description of the Digital Keypad
Potentiometer
For master Frequency
setting refer to Pr.02.00
and Pr.02.09
UP and DOWN Key
Sets the parameter
number and changes the
numerical data, such as
Master Frequency
PROG/DATA
Used to enter programming parameters
MODE
Display mode selector
STOP/RESET
RUN KEY
LED Display
Display frequency,
current, voltage
and error, etc.
Status Display
Display of drive status
Display Message Descriptions
Displays the AC drive Master Frequency.
Displays the actual output frequency at terminals U/T1, V/T2, and W/T3.
User defined unit (where U = F x Pr.00.05)
Displays the output current at terminals U/T1, V/T2, and W/T3.
Displays the AC motor drive forward run status.
Displays the AC motor drive reverse run status.
The counter value (C).
Displays the selected parameter.
Displays the actual stored value of the selected parameter.
External Fault.
