Total Full Load Current in Amperes
Total Input,
kW
Number
of
Element
Element
Input
Voltage
208 Volts 240 Volts 277 Volts 480 Volts 600 Volts
1ph 3ph 1ph 3ph 1ph 1ph 3ph 3ph 347V
6 3 2 28.8 16.7 25.0 14.4 21.7 12.5 7.2 5.8
9 3 3 43.3 25.0 37.5 21.7 32.5 18.8 10.8 8.7
12 3 4 57.7 33.3 50.0 28.9 43.5 25.0 14.4 11.5
13.5 3 4.5 64.9 37.5 56.3 32.5 48.7 28.1 16.2 13.0
15 3 5 72.1 41.6 62.5 36.1 54.2 31.3 18.0 14.4
18 3 6 86.5 50.0 75.0 43.3 65.0 37.5 21.7 17.3
18 6 3 86.5 50.0 75.0 43.3 65.0 37.5 21.7 17.3
24 6 4 115.4 66.6 100.0 57.7 86.6 50.0 28.9 23.1
27 6 4.5 129.8 74.9 112.5 65.0 97.5 56.3 32.5 26.0
30 6 5 144.2 83.3 125.0 72.2 108.3 62.5 36.1 28.9
36 6 6 173.1 99.9 150.0 86.6 130.0 75.0 43.3 34.6
36 9 4 173.1 99.9 150.0 86.6 130.0 75.0 43.3 34.6
40.5 9 4.5 194.7 112.4 168.8 97.4 146.2 84.4 48.7 39.0
45 9 5 216.3 124.9 187.5 108.3 162.5 93.8 54.1 43.3
54 9 6 259.6 149.9 255.0 129.9 194.9 112.5 65.0 52.0
63 9 7 302.9 174.9 262.5 151.6 227.4 131.3 75.8 60.0
Table 4
7
Check List
Replacement elements and gaskets have been installed properly and have been checked for tightness. ......... L
Replacement elements have been wired as per instructions and wiring diagram label on the unit.. .............. L
All connections have been checked for tightness.. .................................................... L
Replacement elements have been leak checked.. .................................................... L
Fiberglass insulation has been re-installed over the heating elements and thermostats.. ...................... L
Appropriate voltage and phase change have been performed as per instructions and wiring diagram label on the unit.. L
Conversion rating plate and conversion label have been installed as instructed. ............................ L
Water heater has been filled with water.. ........................................................... L
Full load current values of TABLE 4 are compatible to supply line voltage.. ................................ L
Miscellaneous Information
All elements are marked with both wattage and voltage. Verification can be made by measuring the ohms resistance
across the element terminals. Element must be disconnected from the circuit. The following table gives resistance in
ohms for all elements used in commercial electric water heaters. Element ohms resistance should be within ±5% of
the values below.
Ohms Resistance Table 3
Voltage
Wattage 208 240 277 480 347
2,000 21.63 28.80 38.36 115.20 72.00
3,000 14.42 19.20 25.58 76.80 40.14
4,000 10.82 14.40 19.18 57.60 30.10
4,500 9.61 12.80 17.5 51.20 26.76
5,000 8.65 11.52 15.35 46.80 24.08
6,000 9.60 12.79 38.40 20.07
7,000 17.20

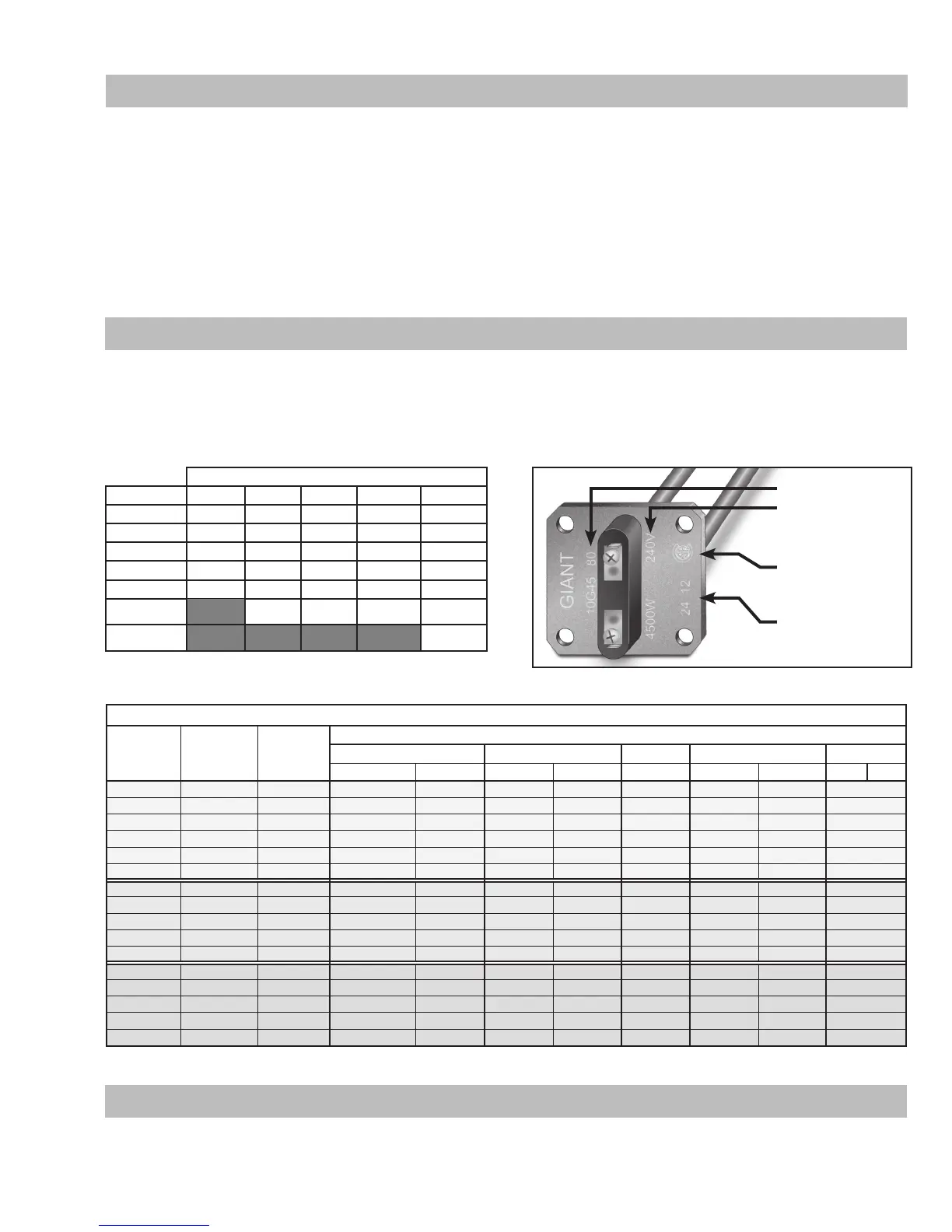

Part Number
Wattage and
Voltage
Certification
Mark
Manufactured
date (week-year)
Always make sure that full load current is compatible with electrical supply lines before turning the power to ON.
NOTE: Based on Ohms law. Results can vary depending on temperature.
Getting service for your Water Heater
Refer to the “GETTING SERVICE FOR YOUR WATER HEATER” section in the Owner’s Manual supplied with your
Water Heater.
