Giant MPH-3 - MODEL YEAR 2002 - 3.2 Lever reach adjustment; 3.3 Angle of the brake fluid reservoir

- Pag. 10. -

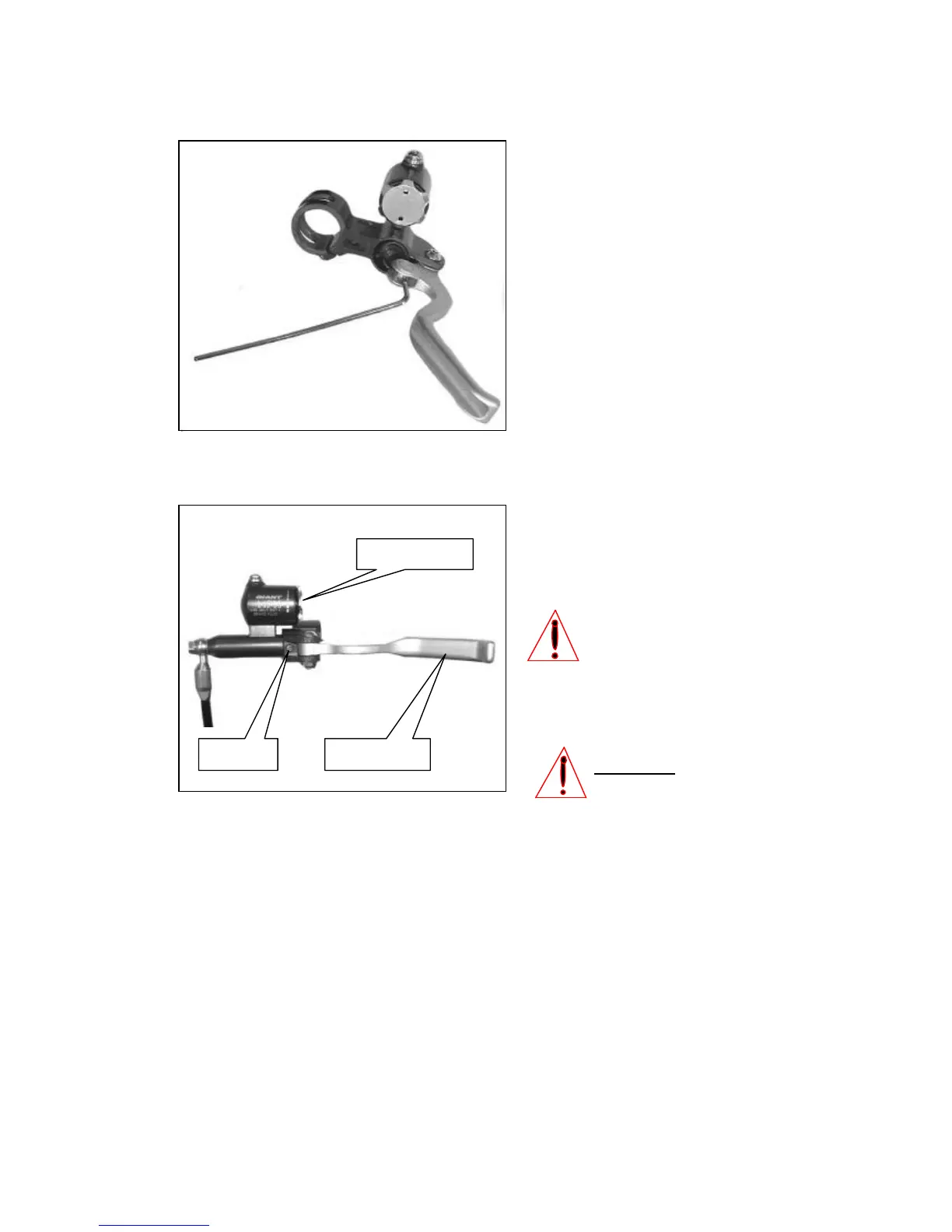

3.2 Lever reach adjustment
Find out the best lever reach by using a
2.5 mm. Allen-key to adjust the screw as shown in
the illustration.
For big hands:
turn clockwise / inwards to increase the distance
between the handlebar and the lever blade.
For small hands:
turn anti-clockwise / outwards to reduce the
distance between the handlebar and the lever
blade.
3.3 Angle of the brake fluid reservoir
The function of the small screw (see picture) close
to the lever blade is setting the angle of the
master cylinder.
Use a 2 mm. Allen-key to loosen the screw and
adjust the angle of the master cylinder.
Note:
Make sure that it’s possible to turn the
adjust knob. If the adjuster touches the
lever bracket (clamp), turning may be
impossible !
After this, tighten the screw again.
Note:
Not too tight: Otherwise the master
cylinder will be deformed. Tighten the
screw just enough to fix the master
cylinder.
Screw Lever blade
Adjust knob
