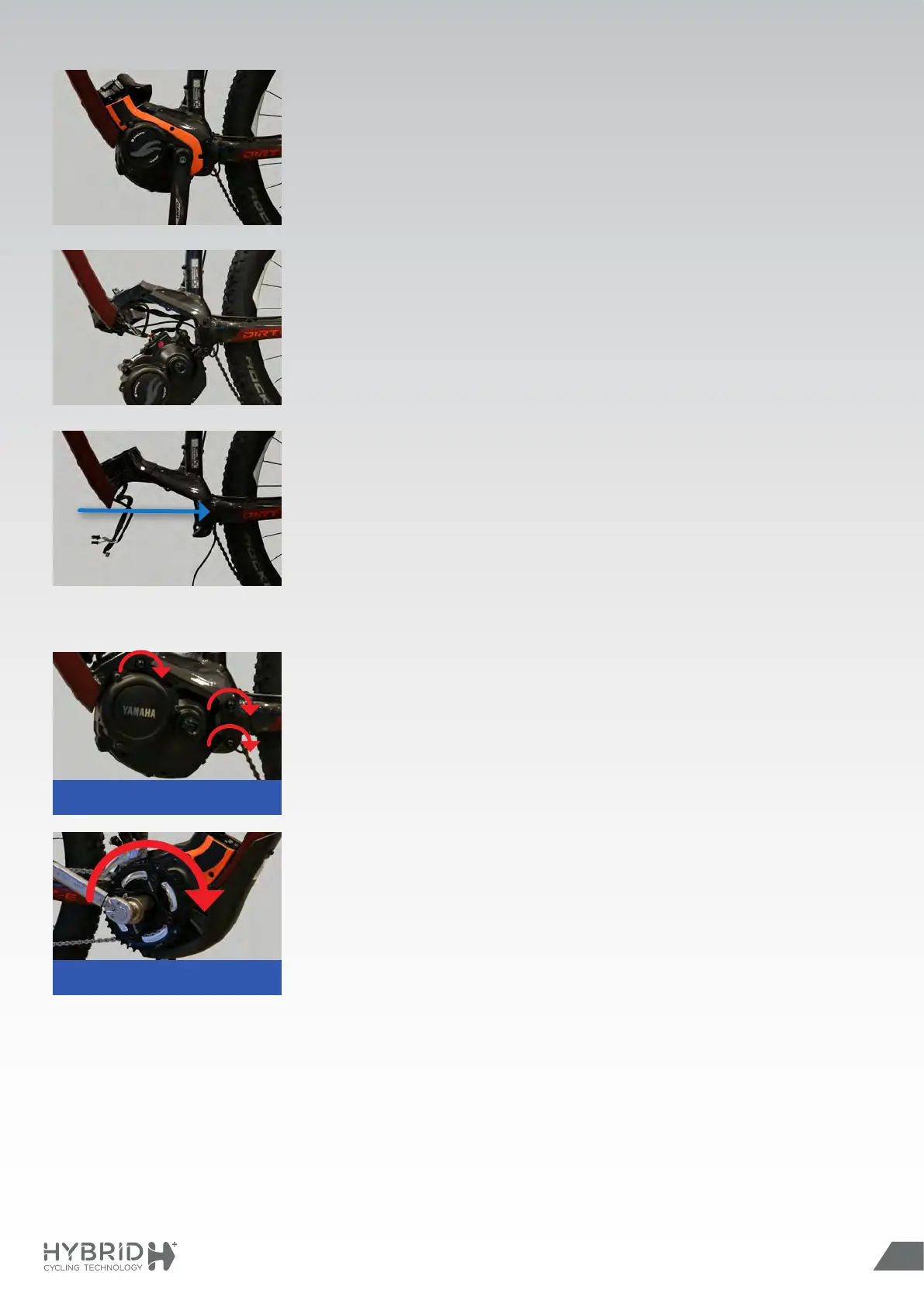

Remove the left motor cover.
6
Loosen the three frame bolts. The rear bolt should remain inside the
frame. The two front bolts can be removed. The motor now can twist, but
will not fall out.
7
Disconnect all the wires. Remove the third motor bolt and remove the
motor.
ASSEMBLE:
1
To reassemble, follow the complete procedure in reversed order. The
frame bolts should be tightened with 30Nm.
30 Nm
2
Use the mounted left crank and the Yamaha lock nut tool (part number
2520-36NUT-01V) to tighten the chain wheel nut. The chain wheel nut
tightens with 40Nm.
40 Nm
