4.1 SYNCDRIVE - MOTOR
BATTERY CONNECTOR SPACER

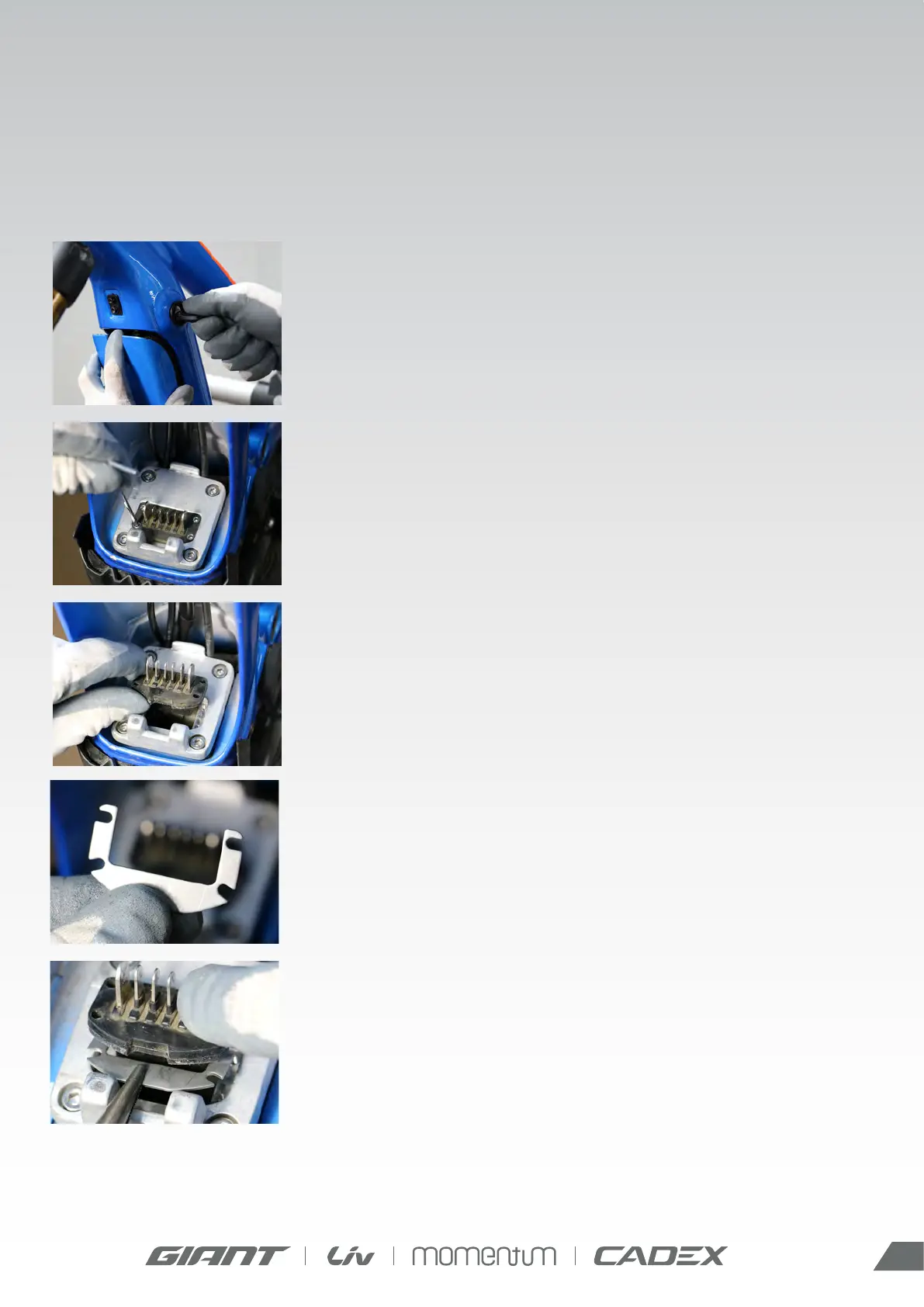

ASSEMBLY INSTRUCTION FOR INTEGRATED BATTERY
1
Remove the battery
2
Remove the 4 screws of the battery connector
3
Lift the connector up out of the bracket, as far as it will go without too
much force. Avoid pulling too hard on the connector, as this might
damage the wires.
On some occasions, it could be that the power wires are clamped or
stuck between the motor and the frame. Then it will be necessary to
partly disassemble the motor to free up the wires.
4
Take the special spacer (set of spacers and screws: 2120MWASH-
ER-520V)and hold it with the open side up.
5
Place the spacer underneath the connector in the recess of the connector
bracket. It can be helpful to use needle nose pliers.
