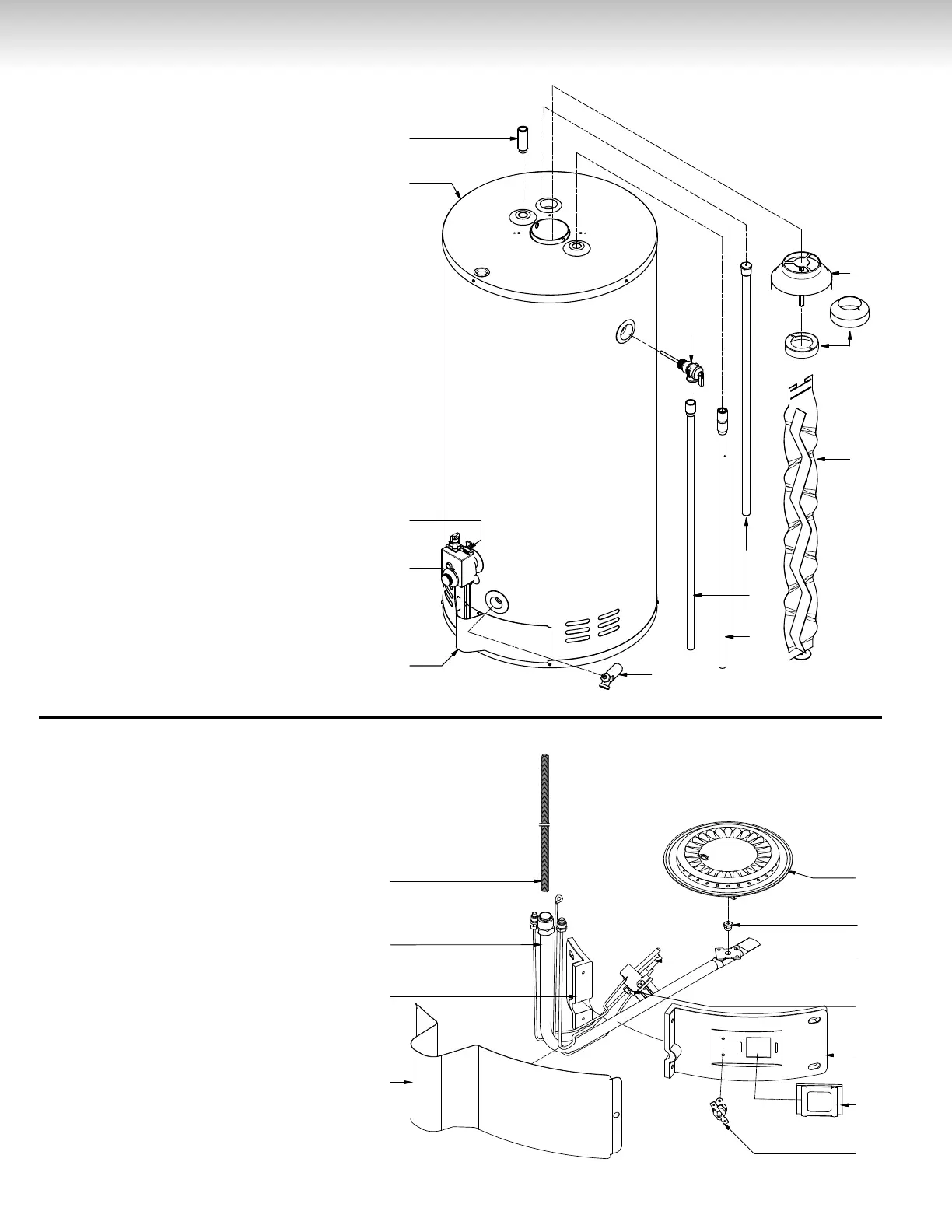

REPLACEMENT PARTS
Burner Assembly
Water Heater Assembly
1) Hot water outlet
2) Top pan
3) Piezo ignitor
4) Gas control
5) Outer access door
6) Drain valve
7) Overflow tube
8) Baffle
9) Flue reducer
10) Draft hood
11) Anode
12) Dip tube
13) Temperature & pressure-relief valve
1) Manifold Spring (on some models)
2) Manifold
3) Inner Left Door
4) Access Door
5) Thermal High Limit Switch
6) Sight Glass
7) Inner Right Door
8) Pilot Orifice
9) Pilot Assembly
10) Burner Orifice
11) Burner
16
or
1
2
3
4
5
6
7
8
9
10
11
12
13
1
3
2
4
5
6
7
8
9
10
11
