Giant WARP 2004 - Bike Sizing and Frame Geometry

Pag. -4-
2. Sizing.

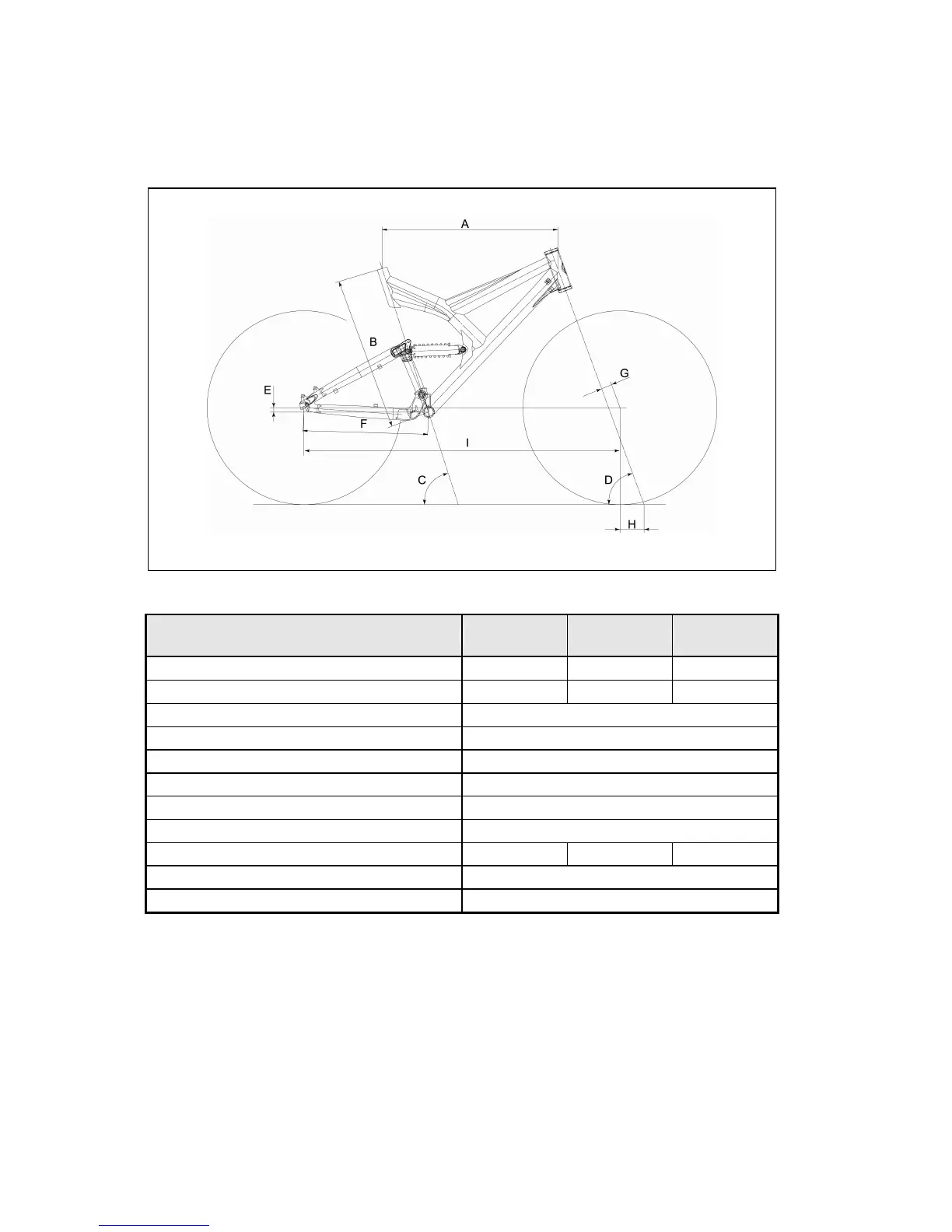

The actual frame measurements and geometries are listed below (see figure 1).
Size S - 16.5” M - 18.5” L - 20.5”
A Top Tube [mm.] (measured horizontally) 570 590 605
B Seat Tube [mm.] 420 470 520
C Seat Angle 72 degrees
D Head Angle 70 degrees
E B.B. Drop [mm.] 15
F Chain Stay [mm.] 430
G Fork Rake [mm.] 45
H Trail [mm.] 76
I Wheel Base [mm.] 1058 1080 1095
Front wheel travel [mm.] 100 mm.
Rear wheel travel [mm.] 4.6 ~ 5.3 inches or 115 ~ 135 mm.
Figure 1.
