Giant XTC BIKES-2001 - Sizing and Frame Geometry

- Pag. 2. -
1. Sizing.
The actual frame measurements and geometries are listed below.
The XtC bikes are designed for Cross-Country racing, but are suitable for all round use as well.
Size S - 16½” M - 18½” L - 20½”
A. Top Tube [mm.] (measured horizontally) 575 590 605
B. Seat Tube [mm.] 420 470 520
C. Seat Tube Angle 72 degrees
D. Head Tube Angle 70 degrees
E. B.B. Drop [mm.] 22
F. Chain stays [mm.] 425
G. Fork Rake [mm.] 38
H. Trail [mm.] 82
I. Wheel Base [mm.] 1047 1064 1081
XtC Mammoth
XtC Napa
3¾”
Rear Travel
XtC Team
XtC Mt. Snow
XtC Big Bear
3” or 3¾”

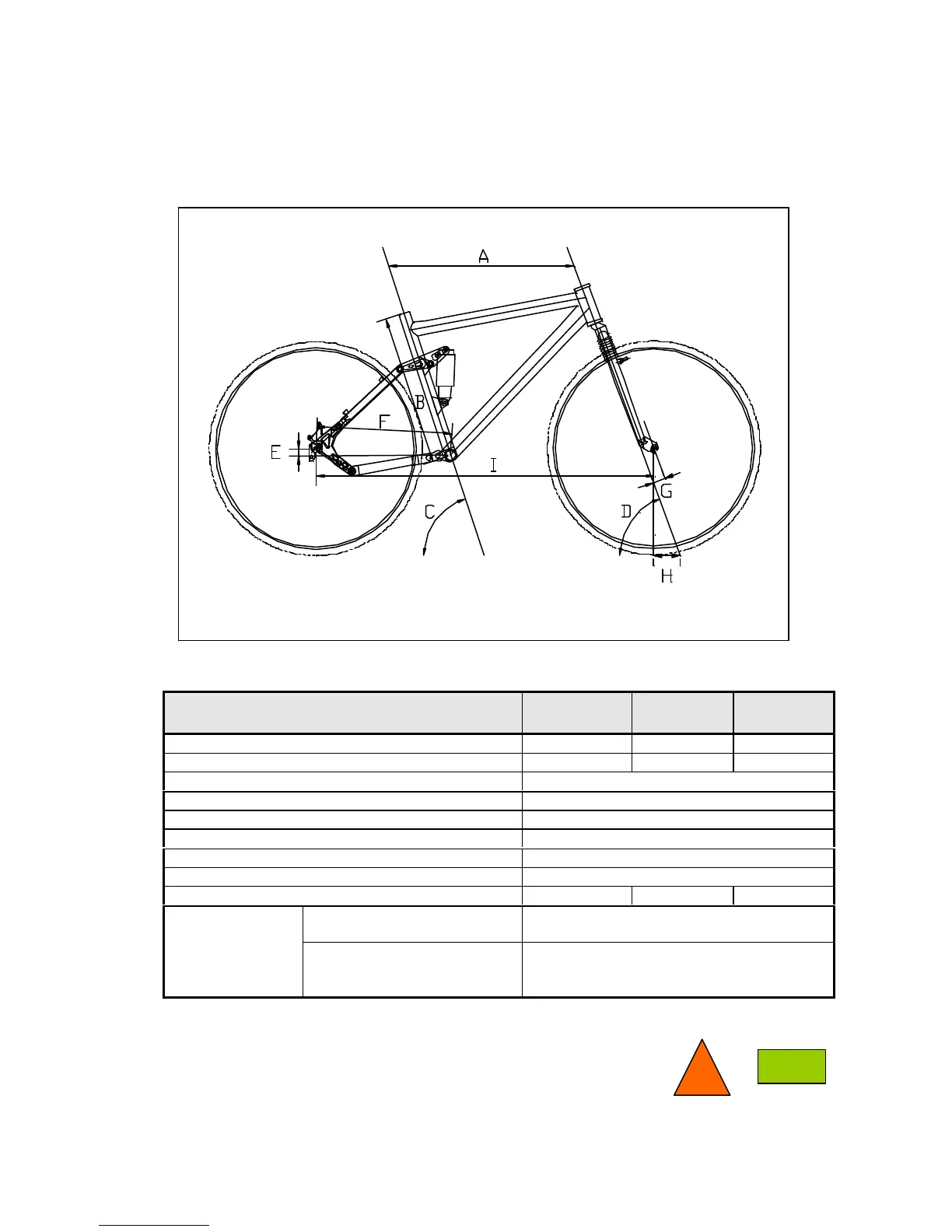

Figure 1.
