GiBiDi TAIMEN T6 User Manual

36 37
TAIMEN
TAIMEN
UKUK

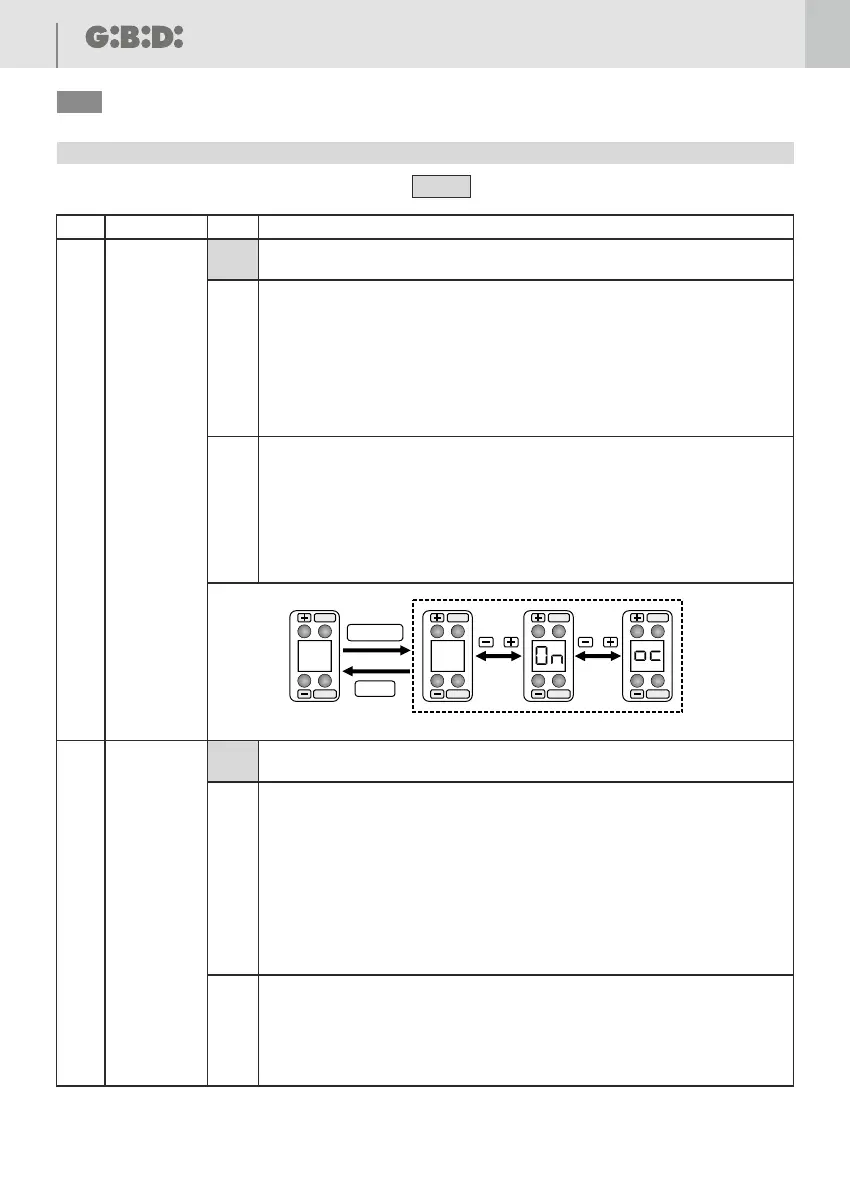

PARAMETERS
The DEFAULT settings are indicated by the grey box
Description
Status
Function
SB input disabled (terminal 4).
PHOTOCELLS
SB enabled in opening and closing (terminal 4).
Operation:
Input enabled both in opening and closing.
If intercepted, stops the motion till it is not freed.
When released, the motion starts again in opening.
If intercepted in pause, charge again the pause time.
0F
0n
OC
SB input enabled, install the photocells .
Operation:
Input enabled only during closing phase.
Stop the motion and reverse completely opening.
If intercepted in pause, charge again the pause time.
If enabled, allows the fast closing (see menu fc)
(terminal 4)
Confirm
Learn
Confirm
Learn
0F
0n
Confirm
Learn
OC
Confirm
Learn
Display
/ /
Confirm
Learn
5b
5b
RS TERMINAL
FUNCTION
r5
Confirm
Learn
Confirm
Learn
0F
5E
Confirm
Learn
/
Confirm
Learn
r5
5T
Confirm
Learn
Terminal RS disabled (terminal 5)
RS TERMINAL
FUNCTION
0F
5e
Terminal (terminal 5)
Operation during closing movement:
reverse the motion for 2s, when the contact is restored, open completely again
and, if the automatic closing is enabled, will close automatically again.
N°3 interventions in succession, before a complete closing, cause the stop of
the movement and the control unit wait for a command. The reverse movement
is done at 50% of maximum speed.
Operation during opening movement:
stop the motion and the control unit waits for a command.
RS works as 8k2 safety edge, install the device .
r5
5T
Terminal (terminal 5)
Operation during closing movement:
stop the motion and the control unit waits for a command.
Operation during opening movement:
stop the motion and the control unit waits for a command.
RS works as 8k2 stop, install the device .
/
Input NO enabled as start step-by-step with stop both in opening and closing.
Operation:
Ÿ Door closed OPEN
→
During opening STOP
→
Door open CLOSE
→
Ÿ During closing STOP
→
Ÿ
Ÿ
INPUT NO
nO
ru
Input abled as opening command, the door opens and does not close
automatically again.
NO en
Input abled as closing command, the door closes.NO en
rc
op
cl
Input abled as start step-by-step with stop only in opening.
Operation :
Ÿ Door closed OPEN
→
During opening STOP
→
Door open CLOSE
→
Ÿ During closing REVERSE THE MOTION
→
NO en
Ÿ
Ÿ
au
Input NO enabled as start with AUTOMATIC logic.
Operation:
Door closed → OPENS
During opening → IRRELEVANT
Door open → Restarts the pause time if the automatic reclosing is enabled,
otherwise closes.
During closing → OPENS
SUSTAINED COMMAND : the gate OPENS and stays opened as long as the
contact stays closed.
PD
Input abled as pedestrian command with step-by-step logic and without
automatic closing. (for horizontal doors)
Operation :
Ÿ Door closed OPEN 1 meter
→
Ÿ During opening CLOSE
→
Ÿ Door open CLOSE
→
Ÿ During closing REVERSE THE MOTION
→
NO en
Confirm
Learn
Confirm
Learn
ru
nO
Confirm
Learn
/
Confirm
Learn
rc
Confirm
Learn
op
cl
Confirm
Learn
/ /
au
Confirm
Learn
/
pd
Confirm
Learn
/
