Gigabyte A620M DS3H User Manual

- 19 -

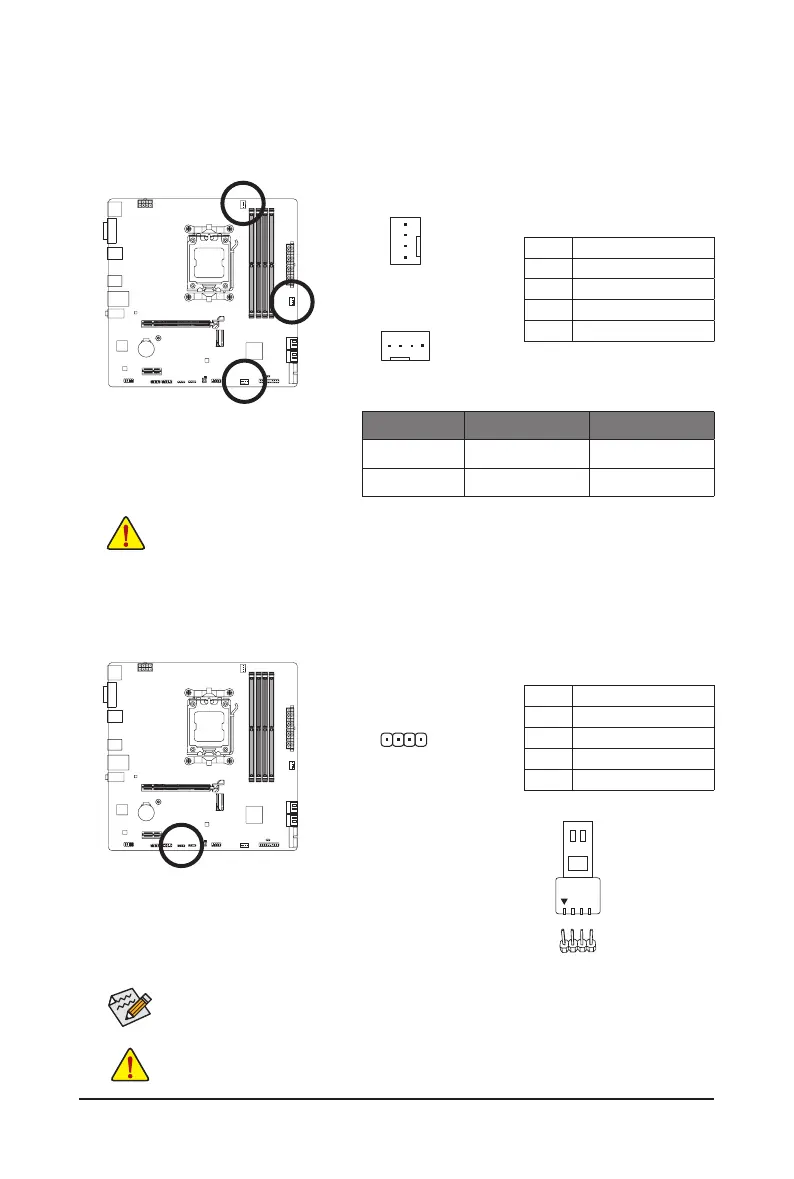

3/4)CPU_FAN/SYS_FAN1/2(FanHeaders)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
SYS_FAN1
DEBUG
PORT
G.QBOFM
1
DEBUG PORT
G.QBOFM
1
CPU_FAN/SYS_FAN2
• Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
• These fan headers are not conguration jumper blocks. Do not place a jumper cap on the headers.
Connector CPU_FAN SYS_FAN1/2
Maximum Current 2A 2A
Maximum Power 24W 24W
5) LED_C(RGBLEDStripHeader)
The header can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
Pin No. Denition
1 12V
2 G
3 R
4 B
Connect your RGB LED strip to the header. The power pin (marked
with a triangle on the plug) of the LED strip must be connected to Pin 1
(12V) of this header. Incorrect connection may lead to the damage of
the LED strip.
RGB LED Strip
1
12V
1
DEBUG
PORT
G.QBOFM
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page
of GIGABYTE's website.

Gigabyte A620M DS3H Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Maximum internal memory supported by processor	192 GB
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800, 5200, 5600, 6000, 6200, 6400, 6800, 7000, 7200, 7600 MHz
Supported memory clock speed (max)	7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
USB 2.0 connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	3
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
Component for	PC
Product color	Brown
Motherboard chipset	AMD A620
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Package width	265 mm
Package height	54 mm
Package weight	1067 g
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Warranty period	3 year(s)
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)

Weight and Dimensions

Width	244 mm
Height	35 mm
