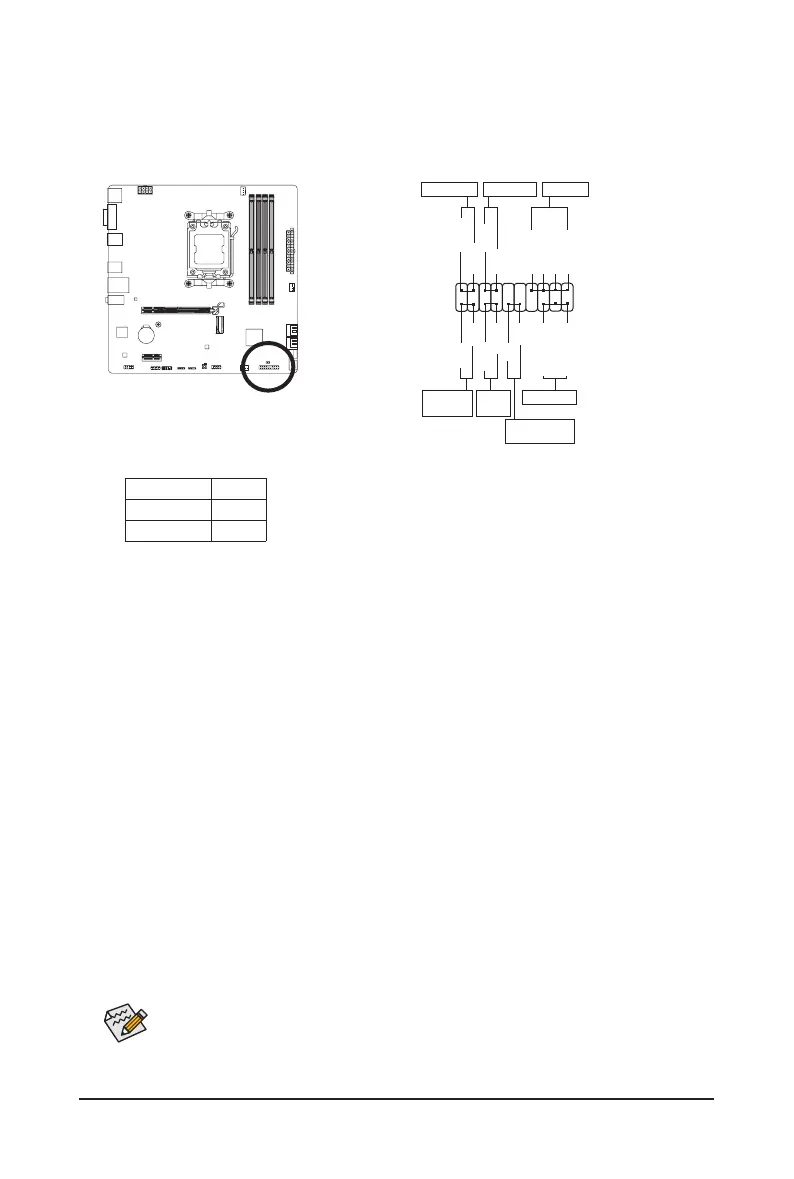

9) F_PANEL(FrontPanelHeader)
Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator
on the chassis to this header according to the pin assignments below. Note the positive and negative pins
before connecting the cables.
The front panel design may differ by chassis. A front panel module mainly consists of power switch,
reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis
front panel module to this header, make sure the wire assignments and the pin assignments are
matched correctly.
• PW (Power Switch):
Connects to the power switch on the chassis front panel. You may congure the way to turn off your
system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and
search for "Soft-Off by PWR-BTTN" for more information).
• SPEAK (Speaker):
Connects to the speaker on the chassis front panel. The system reports system startup status by issuing
a beep code. One single short beep will be heard if no problem is detected at system startup.
• HD (Hard Drive Activity LED):
Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive
is reading or writing data.
• RES (Reset Switch):
Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer
if the computer freezes and fails to perform a normal restart.
• CI (Chassis Intrusion Header):
Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover has
been removed. This function requires a chassis with a chassis intrusion switch/sensor.
• NC:No connection.
• PLED/PWR_LED (Power LED):
Connects to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED is off when the system is in S3/
S4 sleep state or powered off (S5).
System Status LED
S0 On
S3/S4/S5 Off
PLED- PW- SPEAK+ SPEAK-
PLED+
PW+
HD-
RES+
HD+
RES-
Hard Drive
Activity LED
Reset
Switch
DEBUG
PORT
G.QBOFM
Power LED
1
2
19
20
CI-
CI+
Power LED
Chassis Intrusion
Header
Power Switch
Speaker
NC NC
PWR_LED- PWR_LED- PWR_LED+

Gigabyte A620M DS3H Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Maximum internal memory supported by processor	192 GB
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800, 5200, 5600, 6000, 6200, 6400, 6800, 7000, 7200, 7600 MHz
Supported memory clock speed (max)	7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
USB 2.0 connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	3
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
Component for	PC
Product color	Brown
Motherboard chipset	AMD A620
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Package width	265 mm
Package height	54 mm
Package weight	1067 g
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Warranty period	3 year(s)
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)

Weight and Dimensions

Width	244 mm
Height	35 mm
