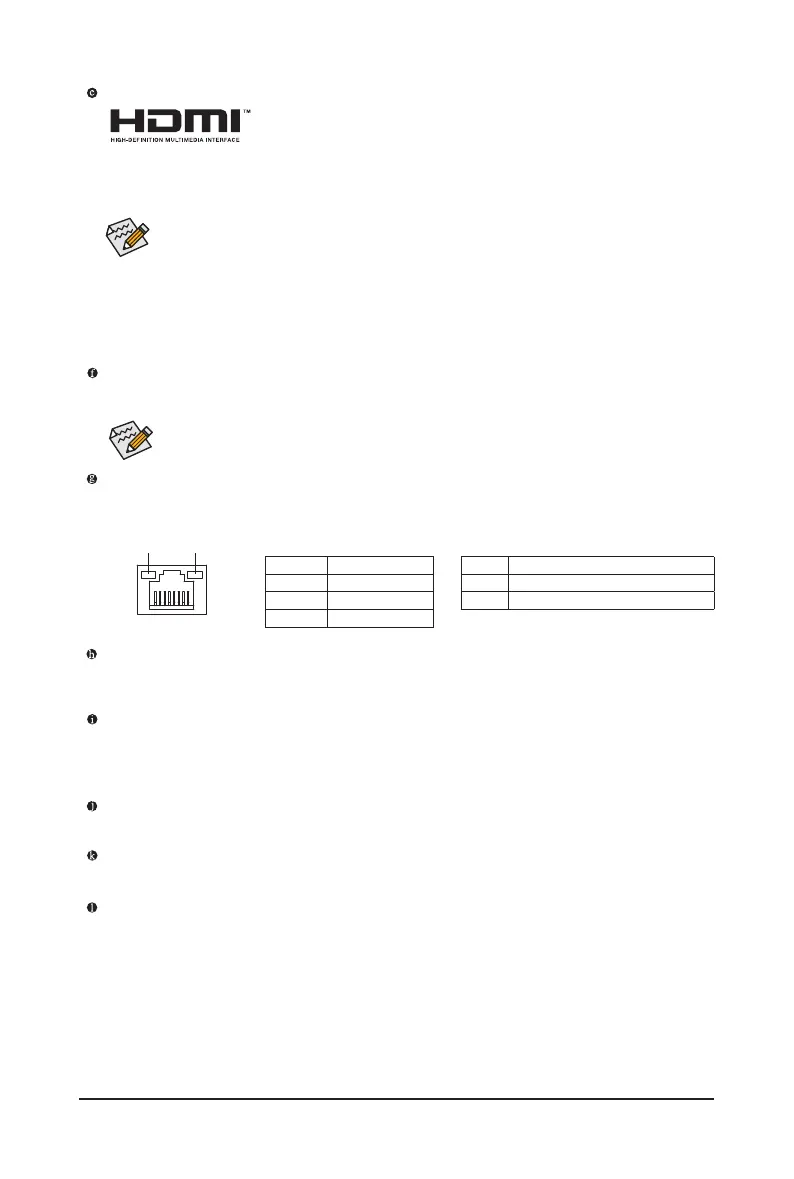

Gigabyte AC A520M DS3H User Manual

Activity LEDSpeed LED
LAN Port
Activity LED:Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
HDMI Port
(Note 1)
The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS
HD Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel
LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum
supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the
monitor being used.
SMA Antenna Connectors (1T1R)
(Note 3)
Use this connector to connect an antenna.
• To set up a triple-display conguration, you must install motherboard drivers in the operating
system rst.
• After installing the DisplayPort/HDMI device, make sure to set the default sound playback
device to DisplayPort/HDMI. (The item name may differ depending on your operating system.)
Triple-DisplayCongurationsfortheOnboardGraphics:
Triple-display congurations are supported after you install motherboard drivers in OS.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Tighten the antennas to the antenna connectors and then aim the antennas correctly for better
signal reception.
USB3.2Gen1Port
The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
USB3.2Gen1Port(Q-FlashPlusPort)
The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices. Before using Q-Flash Plus
(Note 4)
, make sure to insert the USB
ash drive into this port rst.
Line In/Rear Speaker Out (Blue)
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
LineOut/FrontSpeakerOut(Green)
The line out jack.
Mic In/Center/Subwoofer Speaker Out (Pink)
The Mic in jack.
(Note 1) For AMD Ryzen
™
5000 G-Series/4000 G-Series Processors only.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) Only for A520M DS3H AC.
(Note 4) To enable the Q-Flash Plus function please visit the "Unique Features" webpage of GIGABYTE's website.
- 11 -

Gigabyte AC A520M DS3H Specifications

General

Chipset	AMD A520
CPU Socket	AM4
Form Factor	Micro ATX
Memory Type	DDR4
Memory Slots	4
Max Memory	128 GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	4
M.2 Slots	1
Audio	Realtek ALC887
Video Outputs	HDMI, DVI-D
LAN	Realtek GbE LAN
RAID Support	RAID 0, 1, 10
USB Ports	4x USB 2.0
