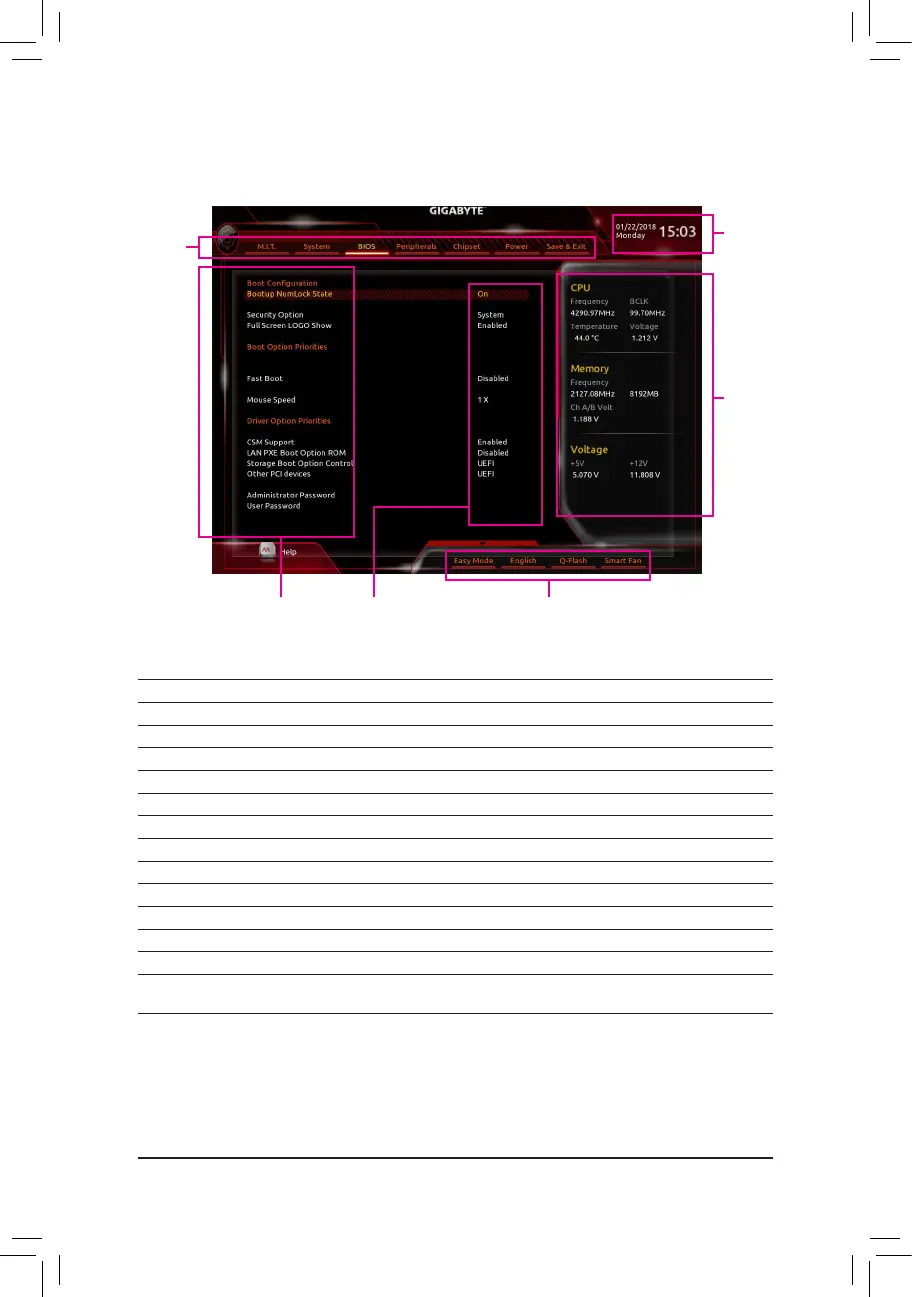

2-2 The Main Menu
Classic Setup Function Keys
<f><g>
Move the selection bar to select a setup menu
<h><i>
Movetheselectionbartoselectancongurationitemonamenu
<Enter> Execute command or enter a menu
<+>/<Page Up> Increase the numeric value or make changes
<->/<Page Down> Decrease the numeric value or make changes
<F1> Show descriptions of the function keys
<F2> Switch to Easy Mode
<F5> Restore the previous BIOS settings for the current submenus
<F7> Load the Optimized BIOS default settings for the current submenus
<F8> Access the Q-Flash utility
<F9> Display system information
<F10> Save all the changes and exit the BIOS Setup program
<F12> Capture the current screen as an image and save it to your USB drive
<Esc> Main Menu: Exit the BIOS Setup program
Submenus: Exit current submenu
Hardware Informa-
tion
CongurationItems Current Settings
Setup Menus
System Time
Quick Access Bar allows you to enter Easy Mode, select BIOS
defaultlanguage,congurefansettings,orenterQ-Flash.

Gigabyte B360M DS3H Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2666, 2400, 2133 MHz
Supported memory module capacities	8GB, 16GB
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
HDMI version	1.4
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B360 Express
PC health monitoring	CPU, FAN, LED, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
BIOS type	UEFI AMI

Weight and Dimensions

Depth	226 mm
Width	205 mm
