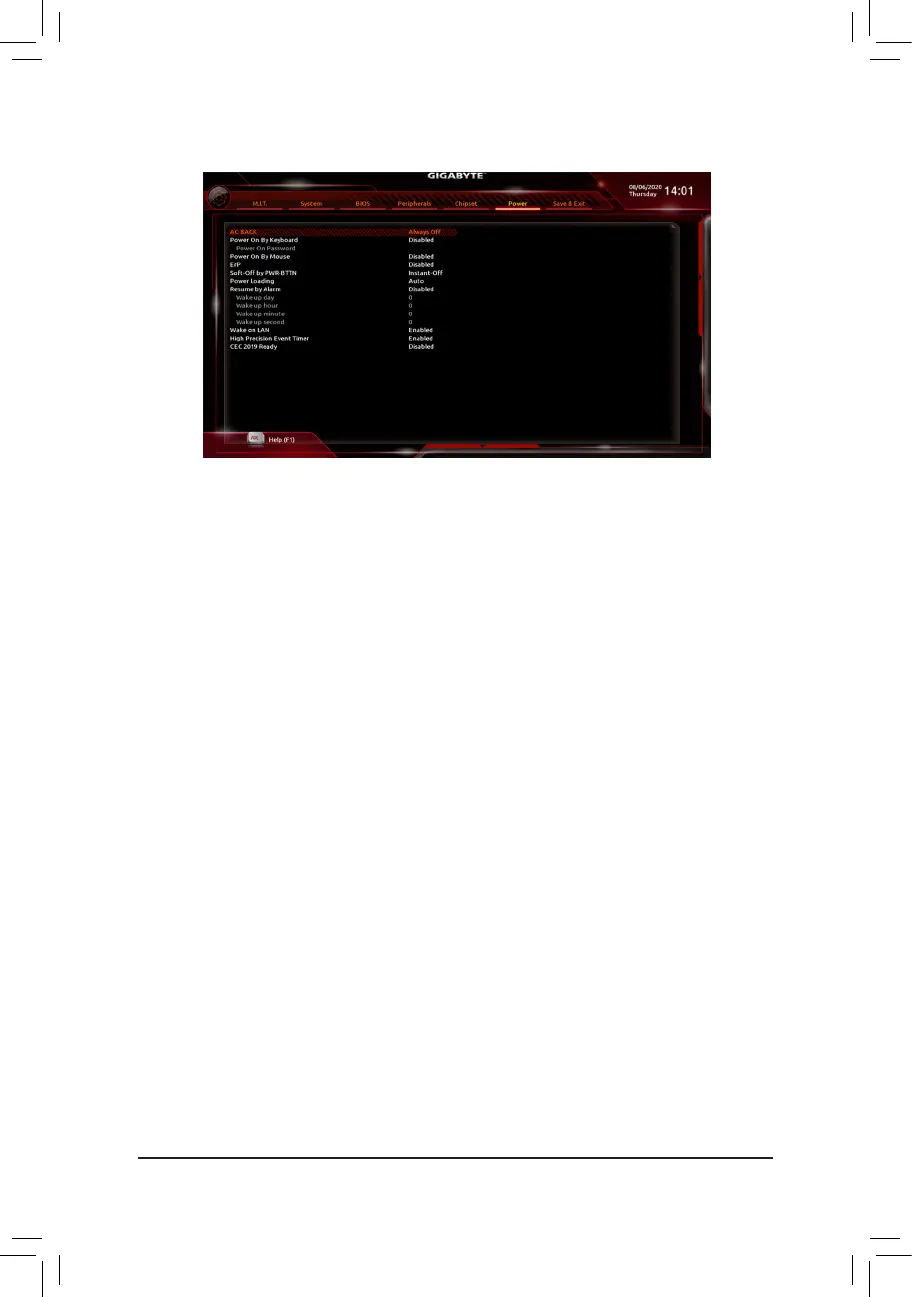

& AC BACK
 DeterminesthestateofthesystemafterthereturnofpowerfromanACpowerloss.
Memory The system returns to its last known awake state upon the return of the AC power.
Always On The system is turned on upon the return of the AC power.
AlwaysOff ThesystemstaysoffuponthereturnoftheACpower.(Default)
& Power On By Keyboard
Allows the system to be turned on by a PS/2 keyboard wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled  Disablesthisfunction.(Default)
Password  Setapasswordwith1~5characterstoturnonthesystem.
Keyboard98 PressPOWERbuttonontheWindows98keyboardtoturnonthesystem.
Any Key Press any key to turn on the system.
& Power On Password
Set the password when Power On By Keyboard is set to Password.
 Press<Enter>onthisitemandsetapasswordwithupto5charactersandthenpress<Enter>toaccept.
Toturnonthesystem,enterthepasswordandpress<Enter>.
 Note:Tocancelthepassword,press<Enter>onthisitem.Whenpromptedforthepassword,press<Enter>
again without entering the password to clear the password settings.
& Power On By Mouse
Allows the system to be turned on by a PS/2 mouse wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled  Disablesthisfunction.(Default)
Move Move the mouse to turn on the system.
DoubleClick Doubleclickonleftbuttononthemousetoturnonthesystem.
& ErP
 DetermineswhethertoletthesystemconsumeleastpowerinS5(shutdown)state.Note:Whenthisitem
is set to Enabled, the following functions will become unavailable: Resume by Alarm, power on by mouse,
and power on by keyboard.
& Soft-Off by PWR-BTTN
 ConguresthewaytoturnoffthecomputerinMS-DOSmodeusingthepowerbutton.
Instant-Off  Pressthepowerbuttonandthenthesystemwillbeturnedoffinstantly.(Default)
Delay4Sec. Pressandholdthepowerbuttonfor4secondstoturnoffthesystem.Ifthepower
button is pressed for less than 4 seconds, the system will enter suspend mode.
2-8 Power
- 37 -

Gigabyte B450 AORUS ELITE V2 Specifications

General

Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD B450
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum internal memory supported by processor	128 GB
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 3600 MHz
Supported memory clock speed (max)	3600 MHz
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x1 (Gen 2.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
DirectX version	12.0
Parallel processing technology support	Not supported
RAID levels	0, 1, 10
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Supported storage drive interfaces	M.2, SATA III
Number of Parallel ATA connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Harmonized System (HS) code	84733020
Quantity per shipping (inner) case	1 pc(s)
Warranty period	3 year(s)
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Package depth	575 mm
Package width	365 mm
Package height	375 mm
Package weight	1390 g

Weight and Dimensions

Height	35 mm
