Gigabyte B450 AORUS ELITE V2 User Manual

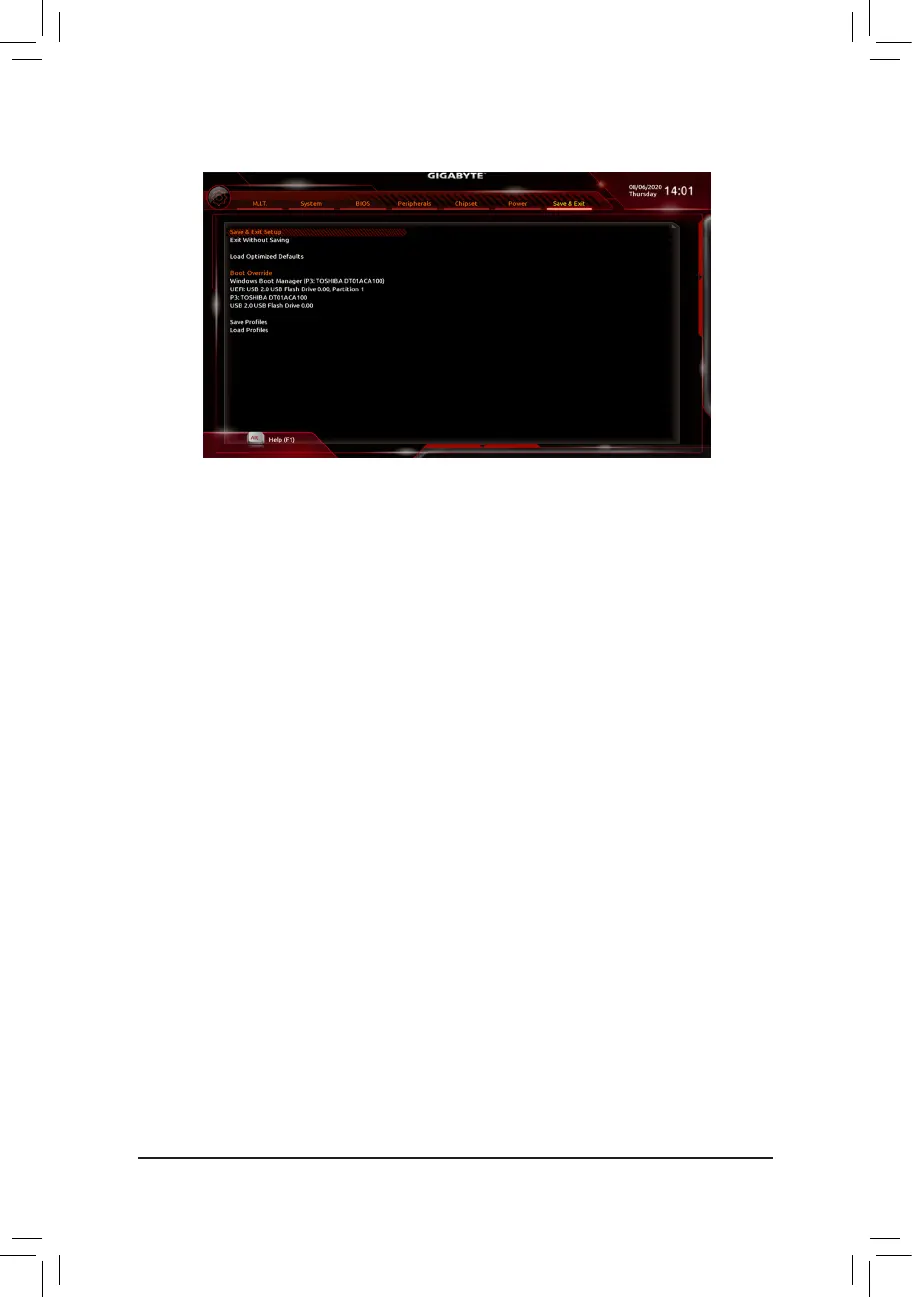

2-9 Save & Exit
& Save & Exit Setup
 Press<Enter>onthisitemandselectYes. This saves the changes to the CMOS and exits the BIOS Setup
program. Select Noorpress<Esc>toreturntotheBIOSSetupMainMenu.
& Exit Without Saving
 Press<Enter>onthisitemandselectYes. This exits the BIOS Setup without saving the changes made
in BIOS Setup to the CMOS. Select Noorpress<Esc>toreturntotheBIOSSetupMainMenu.
& Load Optimized Defaults
 Press<Enter>onthisitemandselectYes to load the optimal BIOS default settings. The BIOS defaults
settingshelpthesystemtooperateinoptimumstate.AlwaysloadtheOptimizeddefaultsafterupdating
the BIOS or after clearing the CMOS values.
& Boot Override
 Allowsyoutoselectadevicetobootimmediately.Press<Enter>onthedeviceyouselectandselectYes
toconrm.Yoursystemwillrestartautomaticallyandbootfromthatdevice.
& SaveProles
 ThisfunctionallowsyoutosavethecurrentBIOSsettingstoaprole.Youcancreateupto8prolesand
saveasSetupProle1~SetupProle8.Press<Enter>tocomplete.OryoucanselectSelect File in
HDD/FDD/USBtosavetheproletoyourstoragedevice.
& LoadProles
If your system becomes unstable and you have loaded the BIOS default settings, you can use this function
toloadthe BIOSsettingsfromaprolecreatedbefore,withoutthehasslesof reconguringtheBIOS
settings.Firstselecttheproleyouwishtoloadandthenpress<Enter>tocomplete.YoucanselectSelect
File in HDD/FDD/USBtoinputtheprolepreviouslycreatedfromyourstoragedeviceorloadtheprole
automatically created by the BIOS, such as reverting the BIOS settings to the last settings that worked
properly (last known good record).
- 39 -

Gigabyte B450 AORUS ELITE V2 Specifications

General

Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD B450
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum internal memory supported by processor	128 GB
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 3600 MHz
Supported memory clock speed (max)	3600 MHz
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x1 (Gen 2.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
DirectX version	12.0
Parallel processing technology support	Not supported
RAID levels	0, 1, 10
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Supported storage drive interfaces	M.2, SATA III
Number of Parallel ATA connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Harmonized System (HS) code	84733020
Quantity per shipping (inner) case	1 pc(s)
Warranty period	3 year(s)
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Package depth	575 mm
Package width	365 mm
Package height	375 mm
Package weight	1390 g

Weight and Dimensions

Height	35 mm
