1-5 Installing an Expansion Card
Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:
Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.

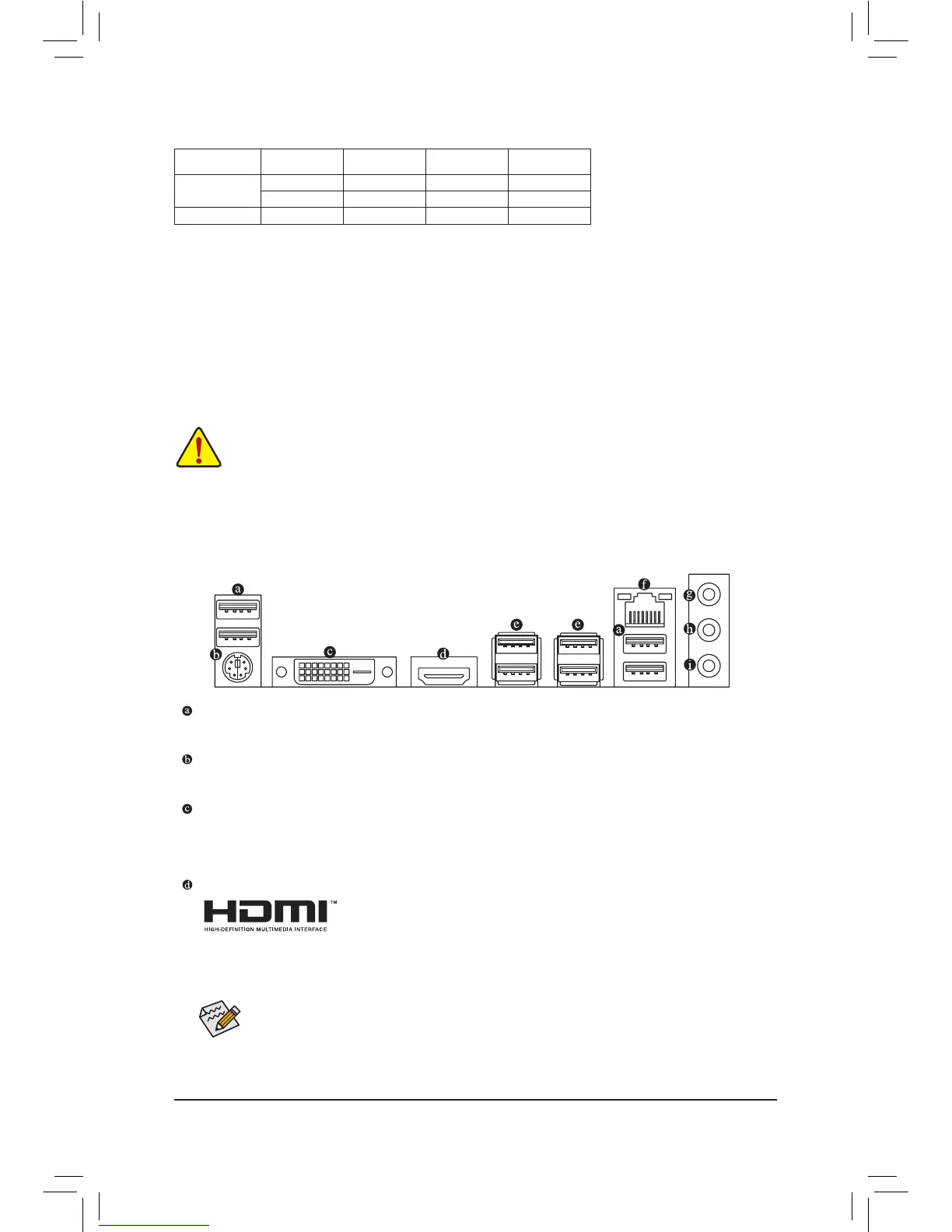

1-6 Back Panel Connectors
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
DVI-D Port
(Note 1)
TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz
(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports
DVI-D connection to this port.
HDMI Port
The HDMI port supports HDCP 2.2
(Note 2)
and Dolby TrueHD and DTS HD
MasterAudio formats.Italsosupports up to192KHz/24bit8-channel LPCM
audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported
resolutionis4096x2160@60Hz
(Note 2)
, but the actual resolutions supported are dependent on the
monitor being used.
After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The
item name may differ depending on your operating system.)
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory
of the same capacity, brand, speed, and chips be used. For optimum performance, when enabling
DualChannelmodewithtwomemorymodules,werecommendthatyouinstallthemintheDDR4_1
andDDR4_2sockets.
DualChannelMemoryCongurationsTable
DDR4_4 DDR4_2 DDR4_3 DDR4_1
2 Modules
- - DS/SS - - DS/SS
DS/SS - - DS/SS - -
4 Modules DS/SS DS/SS DS/SS DS/SS
(SS=Single-Sided,DS=Double-Sided,"--"=NoMemory)
(Note 1) The DVI-D port does not support D-Sub connection by adapter.
(Note 2) Actual support may vary by CPU.
- 10 -

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte B450M DS3H and is the answer not in the manual?

Gigabyte B450M DS3H Specifications

General IconGeneral
Memory channelsDual-channel
Memory slots typeDIMM
Unbuffered memoryYes
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory64 GB
Supported memory clock speeds2133, 2400, 2667, 2933, 3200 MHz
Supported memory module capacities4GB, 8GB, 16GB
HDD size2.5/3.5 \
RegisteredNo
Processor socketSocket AM4
Processor manufacturerAMD
Compatible processor seriesAMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
PCI Express x1 slots1
PCI Express x16 slots2
Supported storage drive typesHDD & SSD
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size256 Mbit
System Management BIOS (SMBIOS) version2.7
Number of Parallel ATA connectors-
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface typeGigabit Ethernet
Component forPC
Motherboard chipsetAMD B450
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10, Windows 7
Bundled softwareNorton Internet Security (OEM version) cFosSpeed
Harmonized System (HS) code84733020
Weight and Dimensions IconWeight and Dimensions
Depth215 mm
Width244 mm
