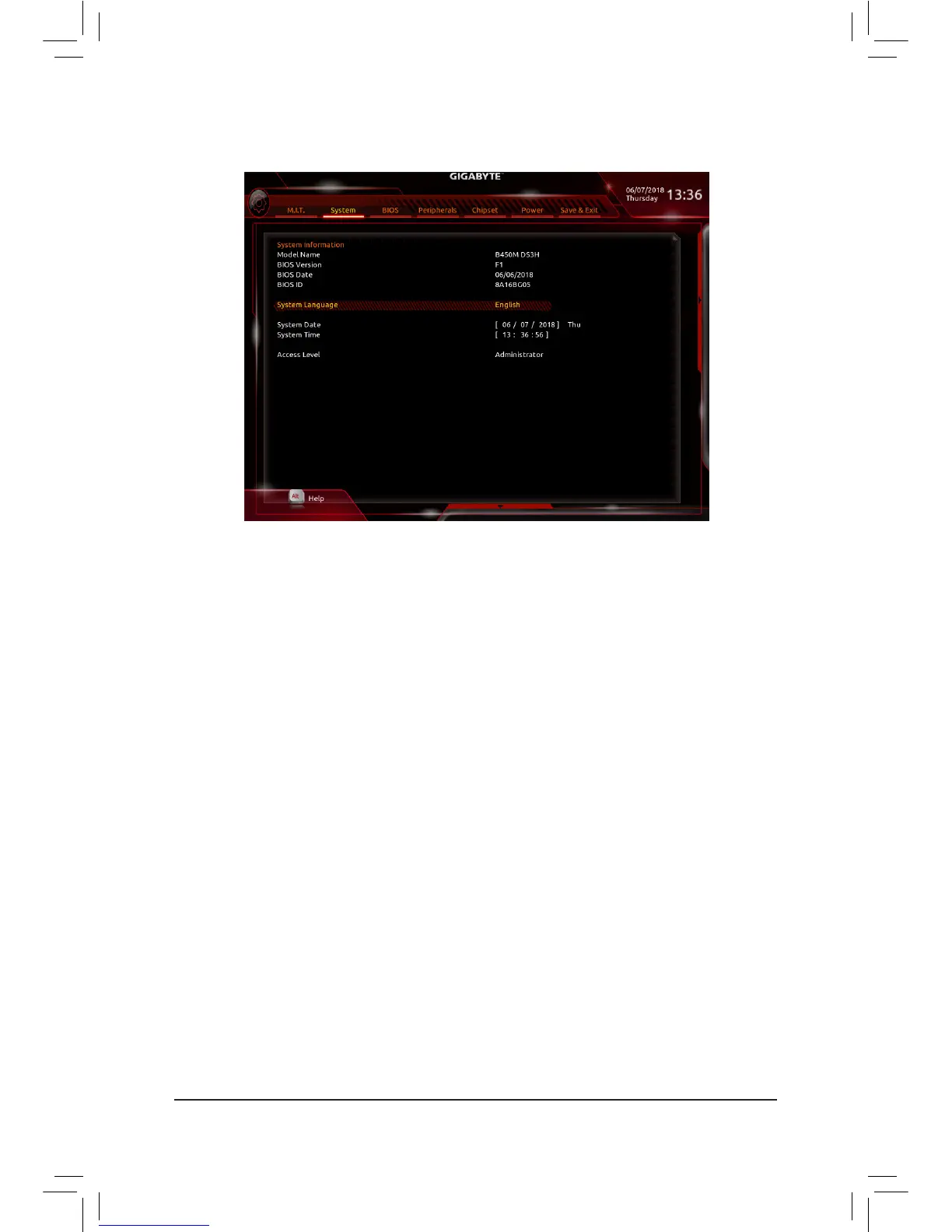

2-4 System
This section provides information on your motherboard model and BIOS version. You can also select the default
language used by the BIOS and manually set the system time.
& System Language
Selects the default language used by the BIOS.
& System Date
Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch
betweentheMonth,Date,andYeareldsandusethe<PageUp>or<PageDown>keytosetthedesired
value.
& System Time
Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:00:00. Use
<Enter>toswitchbetweentheHour,Minute,andSecondeldsandusethe<PageUp>or<PageDown>
key to set the desired value.
& Access Level
Displays the current access level depending on the type of password protection used. (If no password is
set, the default will display as Administrator.) The Administrator level allows you to make changes to all
BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.
- 25 -

Gigabyte B450M DS3H Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB
HDD size	2.5/3.5 \
Registered	No
Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
PCI Express x1 slots	1
PCI Express x16 slots	2
Supported storage drive types	HDD & SSD
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.7
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	AMD B450
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10, Windows 7
Bundled software	Norton Internet Security (OEM version) cFosSpeed
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	215 mm
Width	244 mm
