2-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported
memory speeds and memory modules.)
• Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.

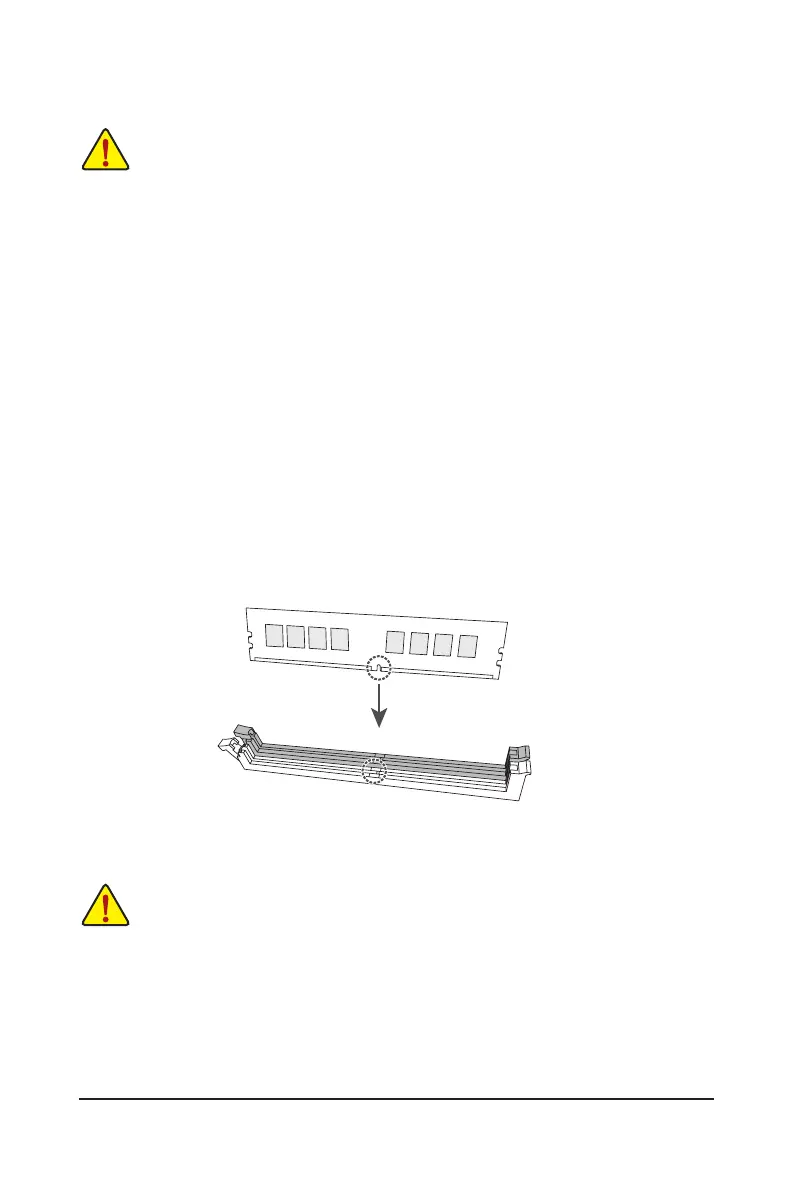

• Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
DualChannelMemoryConguration
This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory
is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual
Channel memory mode will double the original memory bandwidth.
The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as
following:
Channel A: DDR4_2
Channel B: DDR4_1
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one memory module is installed.
2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of the
same capacity, brand, speed, and chips be used.
DDR4_1
DDR4_2
When installing a single memory module, we recommend that you install it in the DDR4_2 socket.

Gigabyte B450M Specifications

General

Form Factor	Micro ATX
Chipset	AMD B450
Socket	AM4
Maximum Memory	64GB
Memory Slots	4
Storage Interface	1 x M.2, 4 x SATA 6Gb/s
LAN	Realtek GbE LAN
Video Outputs	1 x DVI-D, 1 x HDMI
Memory Speed	DDR4 3200(O.C.)/2933/2667/2400/2133 MHz
USB Ports	6 x USB 2.0
