Gigabyte B550M AORUS PRO AX User Manual

- 4 -

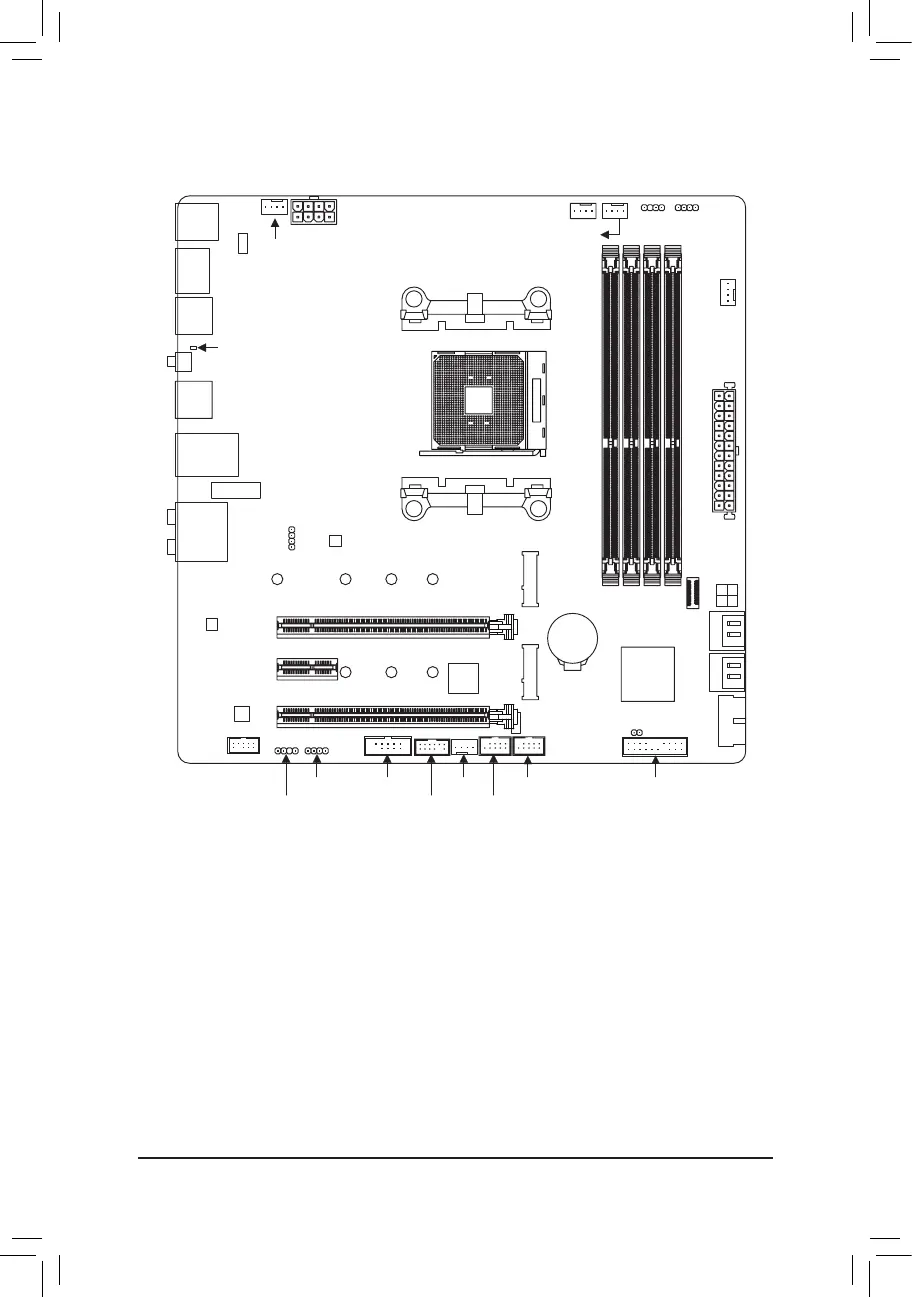

B550M AORUS PRO AX Motherboard Layout
Box Contents
5 B550M AORUS PRO AX motherboard 5 Two SATA cables
5 Motherboard driver disc 5 One antenna
5 User's Manual
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
USB20
DP_HDMI
U32G2C
U32_2
U32_1
QFLASH_PLUS
U32G2_LAN
ATX
AUDIO
DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
ATX_12V
AMD B550
CLR_CMOS
M_BIOS
PCIEX2
PCIEX16
SYS_FAN2
CODEC
B550M AORUS PRO AX
F_PANEL
F_USB2
F_U32
SYS_FAN3 F_USB1
D_LED2 LED_C2
F_AUDIO
SYS_FAN1
LED_CPU
CPU_OPT
iTE
®
Super I/O
M2A_CPU
4280110
M2B_SB
4280
SATA3
2 0 3 1
BAT
Realtek
®
2.5GbE
LAN
Socket AM4
CPU_FAN
60
60
TPM
COM
USB 2.0 Hub
PCIEX1
QFLED
M2_WIFI
F_U32C
LED_C1
D_LED1
USB 2.0 Hub

Gigabyte B550M AORUS PRO AX Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4400, 4600, 4733 MHz
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Maximum resolution	5120 x 2880 pixels
Parallel processing technology support	Not supported
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	5
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	AMD B550
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.7
Cables included	SATA
Bundled software	Norton Internet Security, Realtek 8118 Gaming LAN Bandwidth Control Utility

Weight and Dimensions

Width	244 mm
