Pin No. Denition
1 12V
2 G
3 R
4 B
Before installing or removing the devices, be sure to turn off the devices and your computer. Unplug
the power cord from the power outlet to prevent damage to the devices.
Connect your RGB LED strip to the header. The power pin (marked with a triangle
on the plug) of the LED strip must be connected to Pin 1 (12V) of this header.
Incorrect connection may lead to the damage of the LED strip.
For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page
of GIGABYTE's website.
RGB LED Strip
1
12V

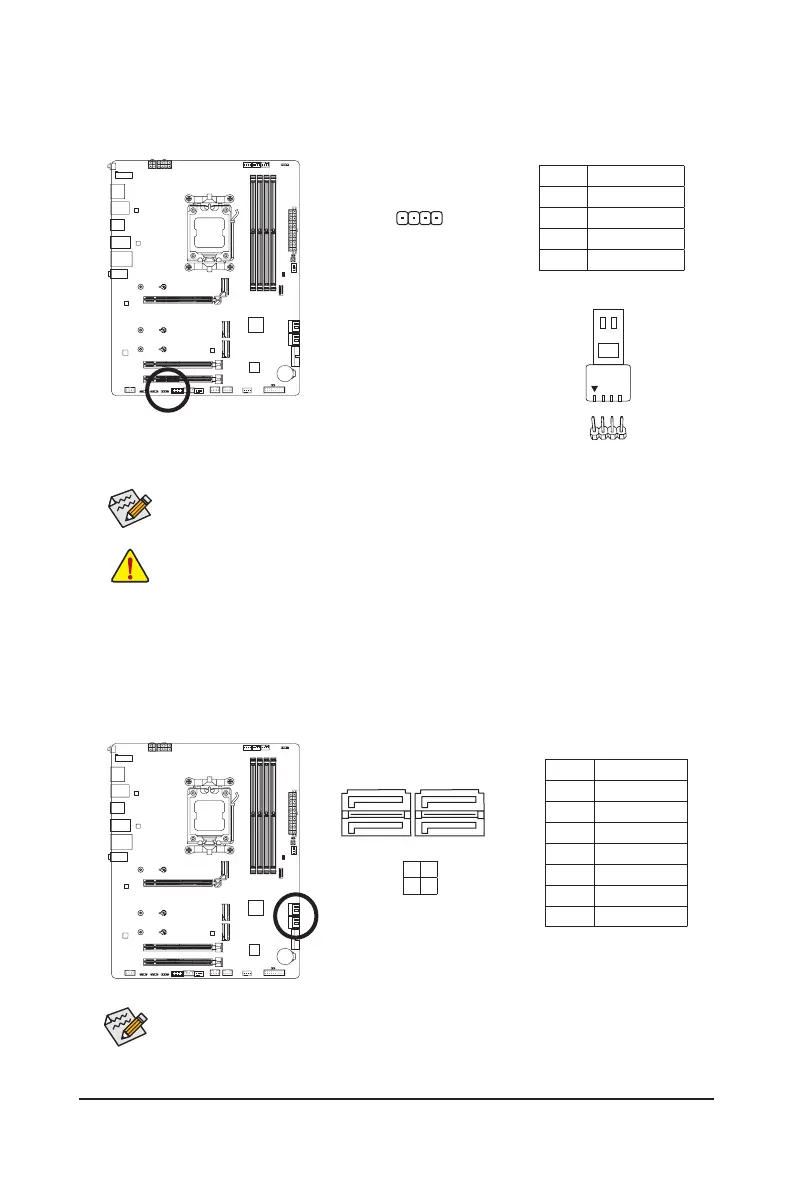

8) LED_C (RGB LED Strip Header)
The header can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
1
DEBUG
PORT
G.QBOFM
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA3
2 0
3 1
To enable hot-plugging for the SATA ports, please navigate to the "BIOS Setup" page of GIGABYTE's
website and search for "SATA Conguration" for more information.
1
1
7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
7
9) SATA3 0/1/2/3 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support
RAID 0, RAID 1, and RAID 10. Please navigate to the "Conguring a RAID Set" page of GIGABYTE's
website for instructions on conguring a RAID array.

Gigabyte B650 A ELITE AX ICE Specifications

General

Chipset	AMD B650
Form Factor	ATX
Memory Type	DDR5
Memory Slots	4
CPU Socket	AM5
Storage Interface	4 x SATA 6Gb/s
Networking	Wi-Fi 6E
Audio	Realtek ALC1220-VB
RGB Headers	2 x Addressable LED, 2 x RGB LED
Memory Speed	DDR5 6400+(OC)
