- 29 -

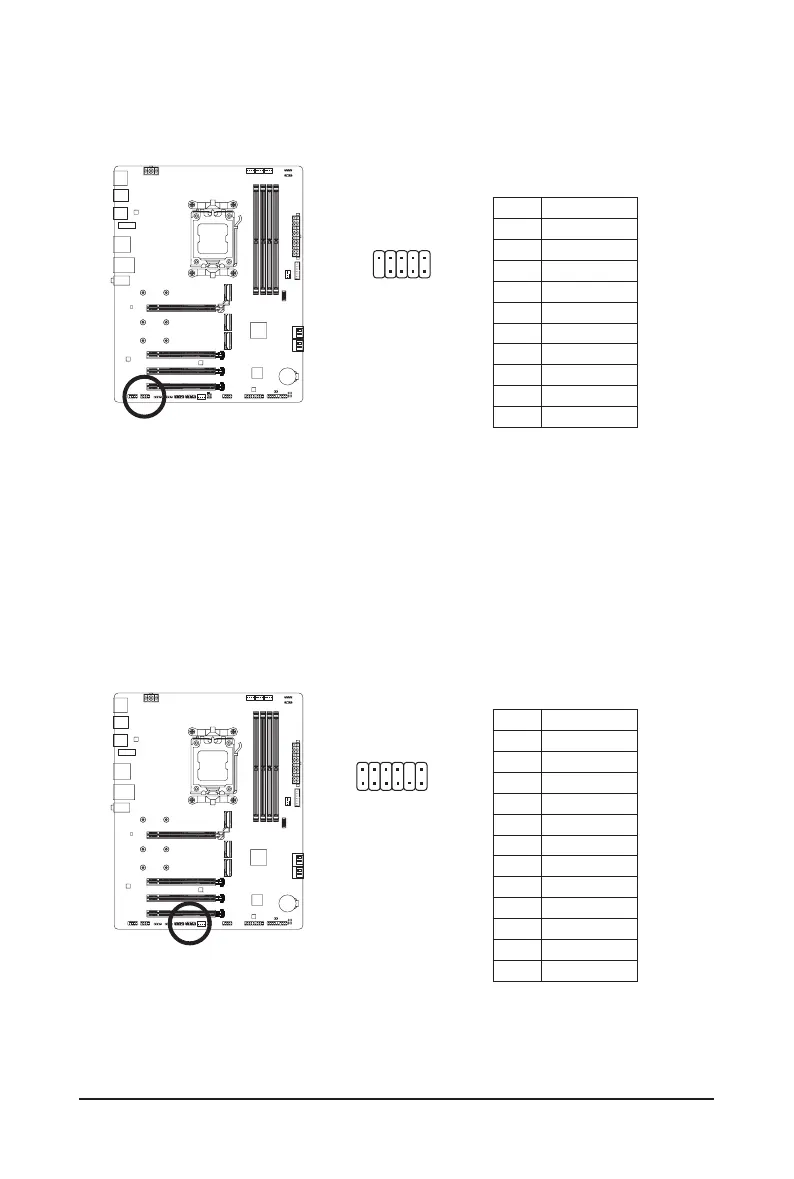

17) SPI_TPM (Trusted Platform Module Header)
You may connect an SPI TPM (Trusted Platform Module) to this header.
Pin No. Denition
1
Data Output
2
Power (1.8V)
3
No Pin
4
NC
5
Data Input
6
CLK
7
Chip Select
8
GND
9
IRQ
10
NC
11
NC
12
RST
12
11
2
1
Pin No. Denition
1 NDCD-
2 NSIN
3 NSOUT
4 NDTR-
5 GND
6 NDSR-
7 NRTS-
8 NCTS-
9 NRI-
10 No Pin
16) COM (Serial Port Header) jk
The COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
10
9
2
1
j Only for B650 EAGLE AX.
k Only for B650 EAGLE.
