4. Restart the PC with the USB stick inserted (real restart).
(Simply switching off and on does not achieve the goal).
5. Load the BIOS by pressing the Del key several times in a staccato manner until the display turns black
6. Call up the Q-Flash program (bottom right) by pressing the F8 key.
7. Then click Q-Flash Task Menu with the mouse pointer onton the image of the USB stick (see Fig. 01)..

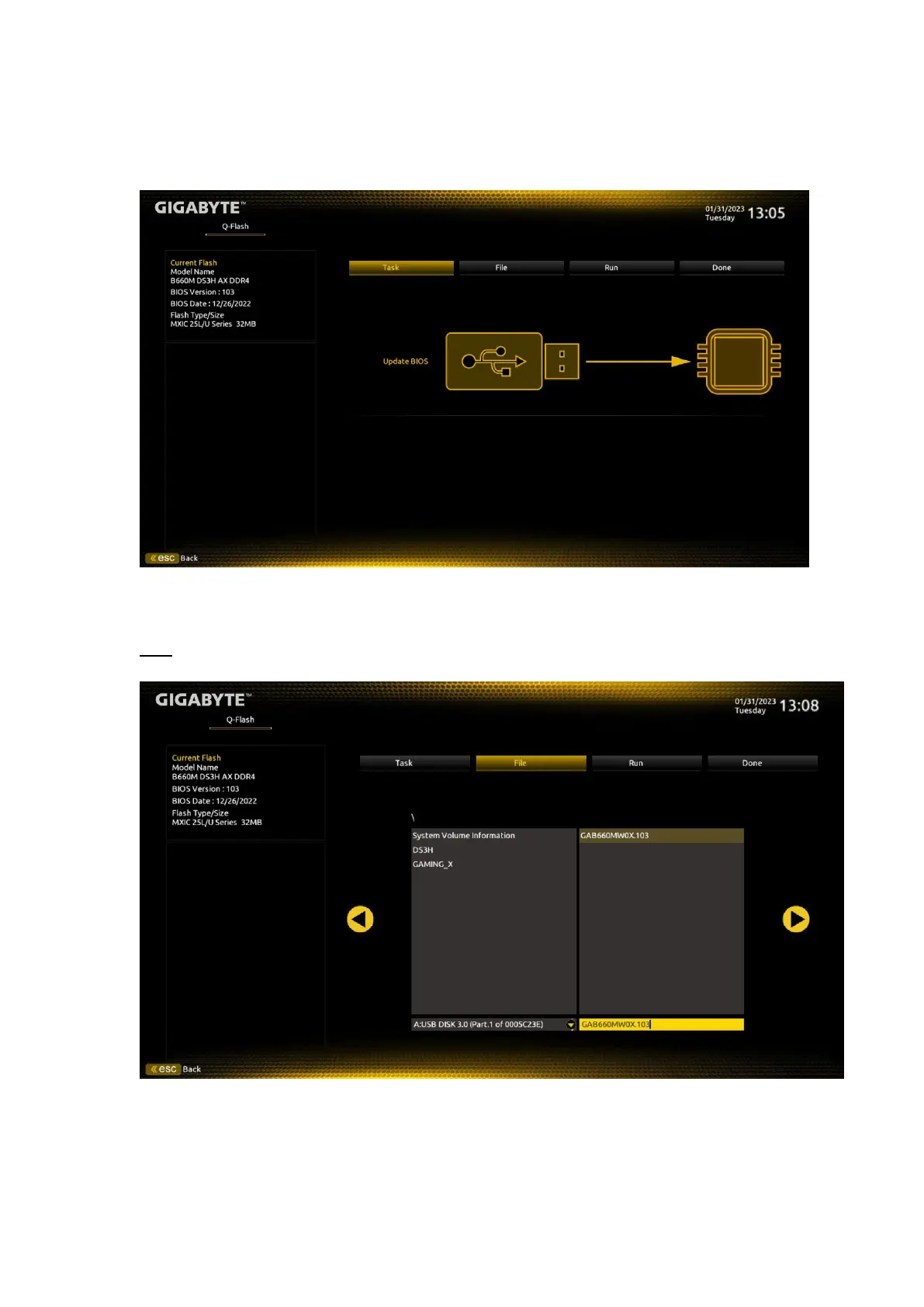

(Fig. 01: Q-Flash Task Menue)
8. In the right-hand window, select the Bios file to be installed (see Fig. 02).
Info: If no contents are displayed there, please use an alternative USB stick.
(Fig. 02: Q-Flash File Menue)
