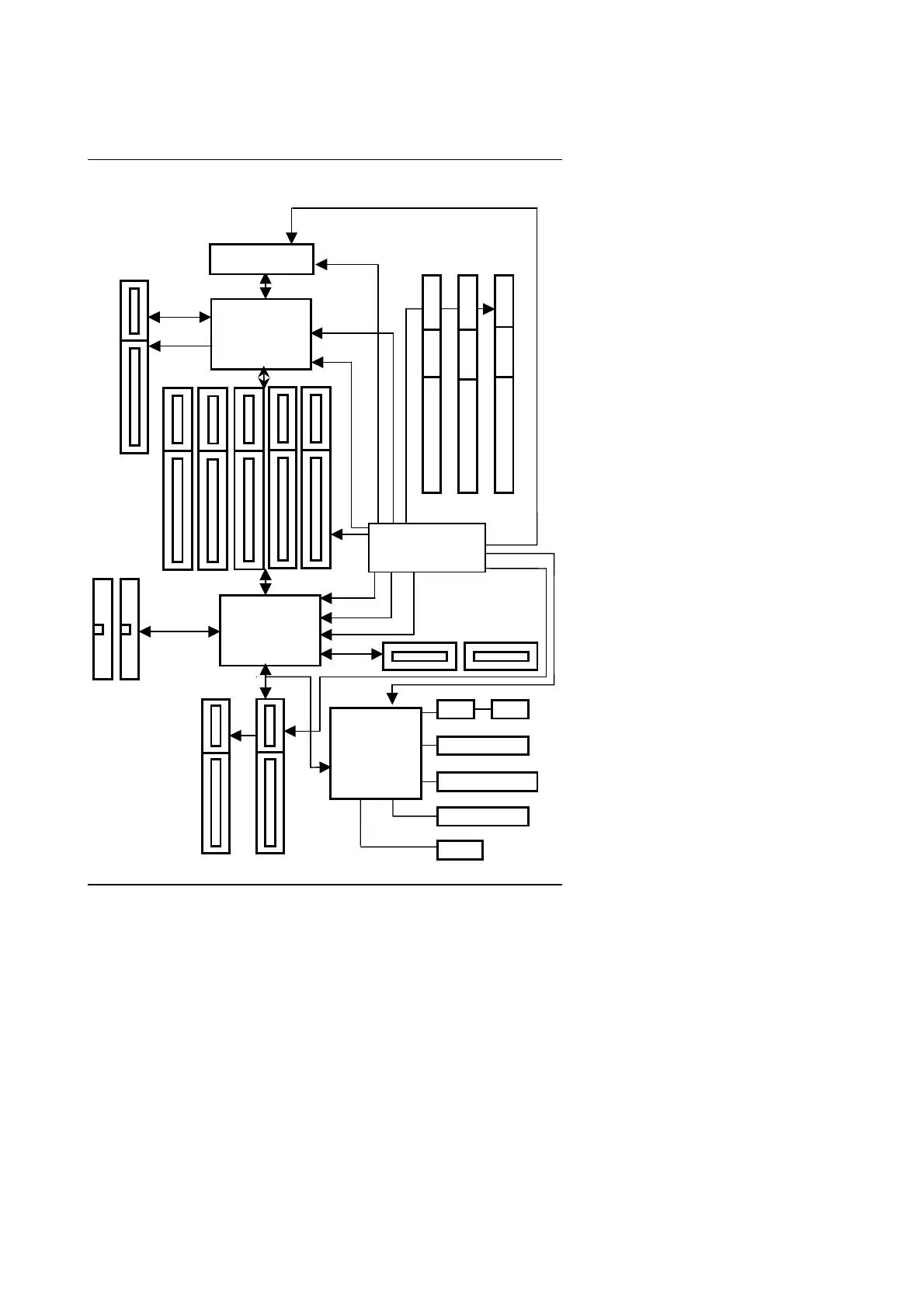

1.4. BLOCK DIAGRAM
24MHz
3.3V SDRAM
DIMM Sockets
14.318MHz
33 MHz
33MHz
Ultra
DMA33/
ATA66
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
PS/2 Mouse
USB Bus
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
ITE8671
AGP
Host Bus
VIA
82C693A
VIA
82C596B
66MHz
33 MHz
66 /100 /133 MHz
USB Ports
PGA 370
66 /100 /133 MHz
Clock
Generator
66 /100 /133 MHz
