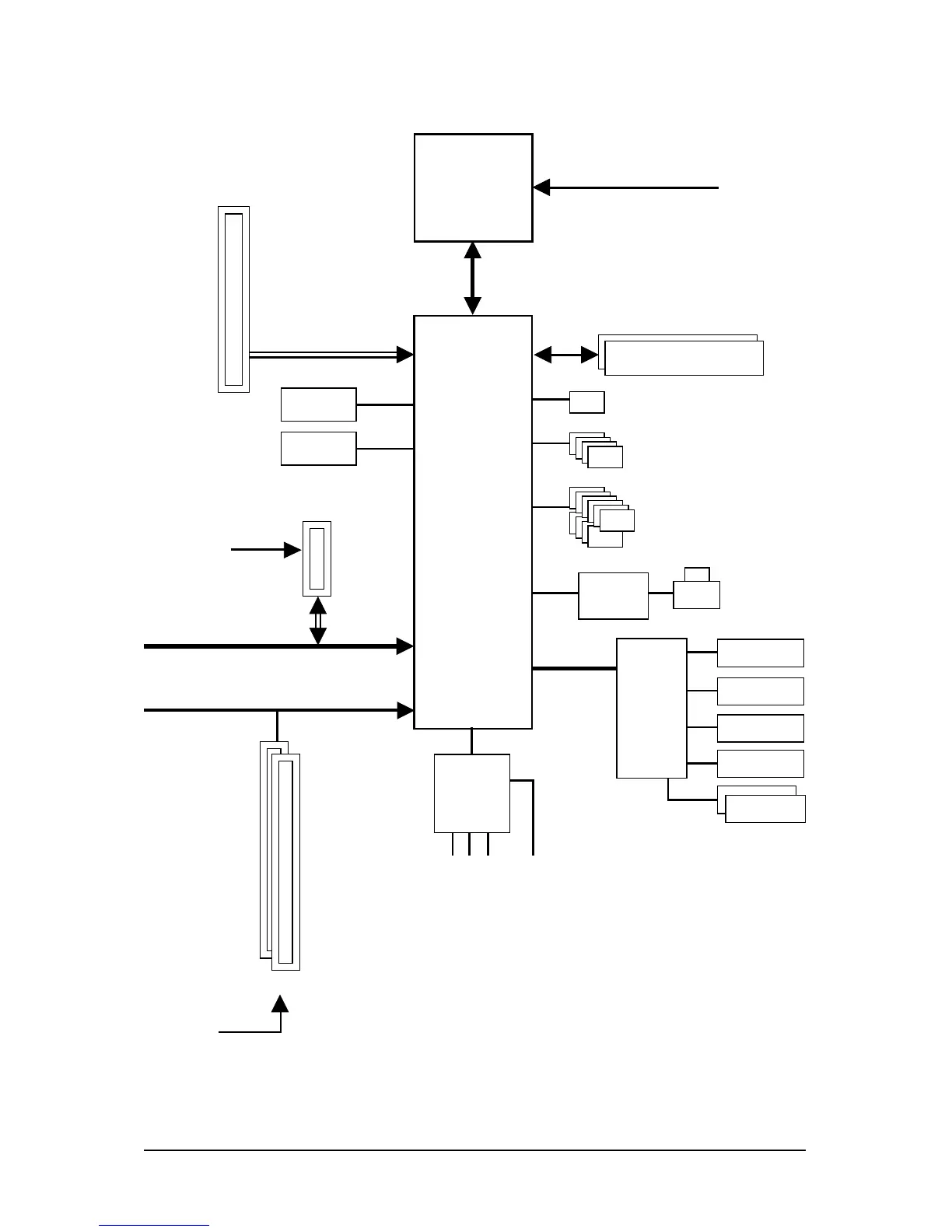

Block Diagram
LGA775
Processor
4 SATA 3Gb/s
LPC BUS
2 PCI
PCI Bus
LPT Port
BIOS
Floppy
COM Port
PS/2 KB/Mouse
IT8718
Host
Interface
DDR2 800/667/533 MHz
1 PCI Express x1
PCI Express Bus
PCIe CLK
(100 MHz)
x1
CPU CLK+/-
(333/266/200 MHz)
ATA-133/100/66/33
IDE Channel
LAN
RJ45
RTL
8211B
D-Sub
PCIe CLK
(100 MHz)
PCI Express x16
Line-Out(Front Speaker Out)
MIC(Center/Subwoofer Speaker Out)
Line-In(Rear Speaker Out)
SPDIF Out
CODEC
PCI CLK
(33 MHz)
DVI-D
10 USB Ports
nVIDIA
®
GeForce 7100/
nForce 630i

Gigabyte GA-73PVM-S2 Specifications

General

Brand	Gigabyte
Model	GA-73PVM-S2
Category	Motherboard
Language	English
